Conditions for Lock-up Operation

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

When vehicle is driven in 4th gear position, vehicle speed and throttle opening are detected. If the detected values fall within the lock-up zone memorized in the TCM, lock-up is performed.

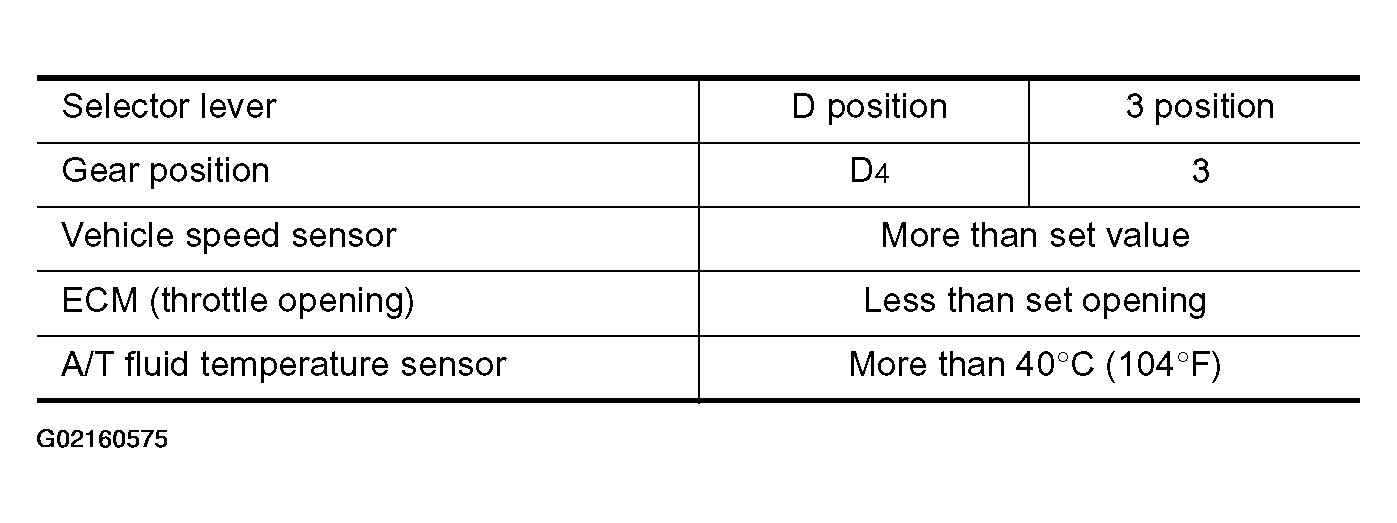

Fig 1: Lock Up Operation Condition Chart
G02160575Courtesy of NISSAN MOTOR CO., U.S.A.
