Overrun Clutch Operating Conditions
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

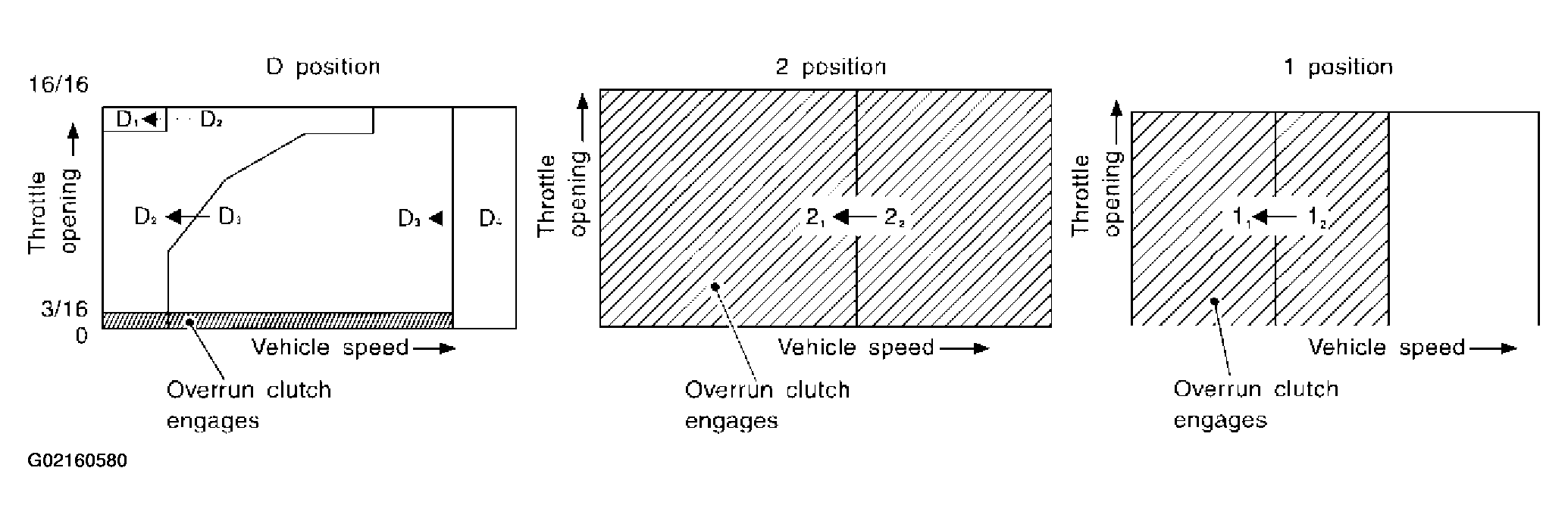

Fig 1: Overrun Clutch Operating Conditions Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

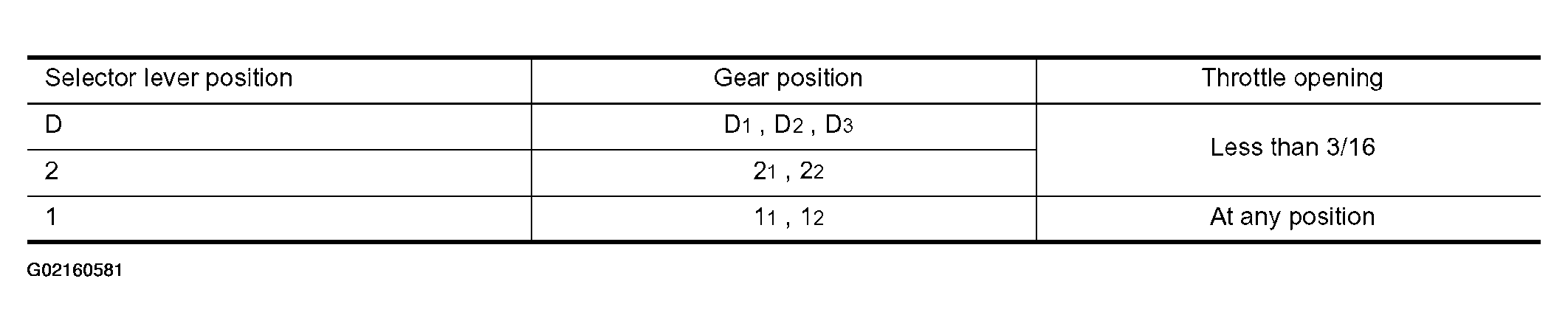

Fig 2: Overrun Clutch Operating Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
