Control of Shift Valves A and B
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
Pilot pressure generated by the operation of shift solenoid valves A and B is applied to the end face of shift valves A and B.

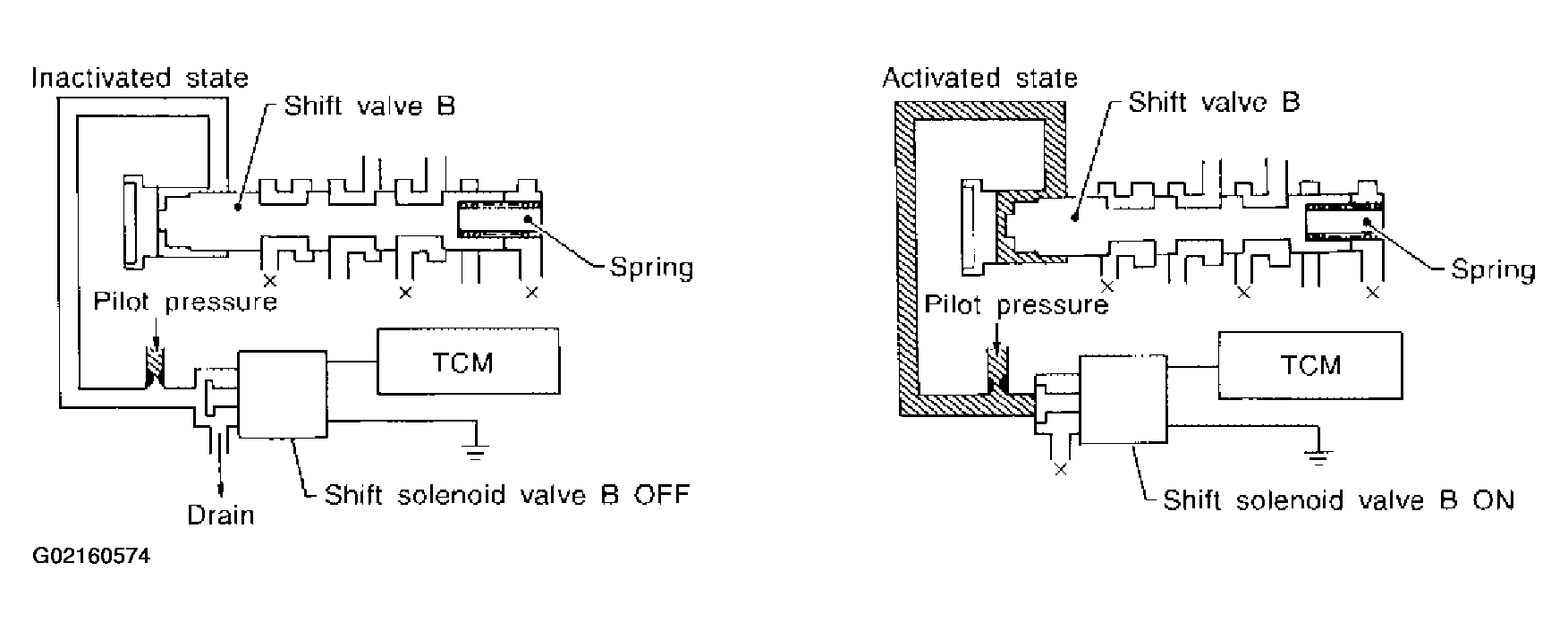

The drawing above shows the operation of shift valve B. When the shift solenoid valve is ON, pilot pressure applied to the end face of the shift valve overcomes spring force, moving the valve upward.
