Cross-sectional View
WARNING:
This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

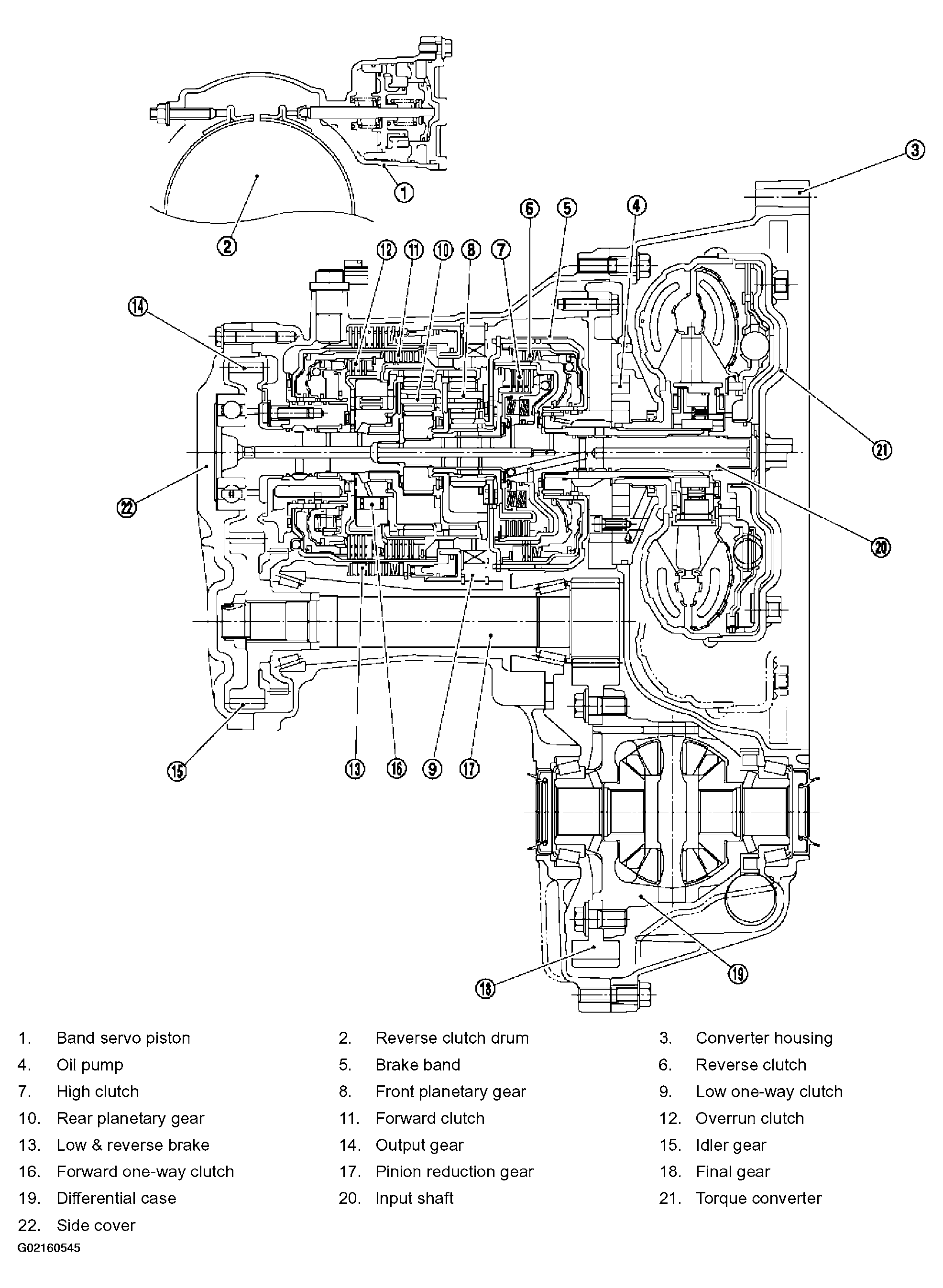

Fig 1: Cross Sectional View Of Automatic Transaxle
Courtesy of NISSAN MOTOR CO., U.S.A.
