Operation Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Touch "REAR DEFOGGER" on the "SELECT TEST ITEM" screen.
  2. Touch "DATA MONITOR" on the "SELECT DIAG MODE" screen.
  3. Touch either "ALL SIGNALS" or "SELECTION FROM MENU" on the "DATA MONITOR" screen.

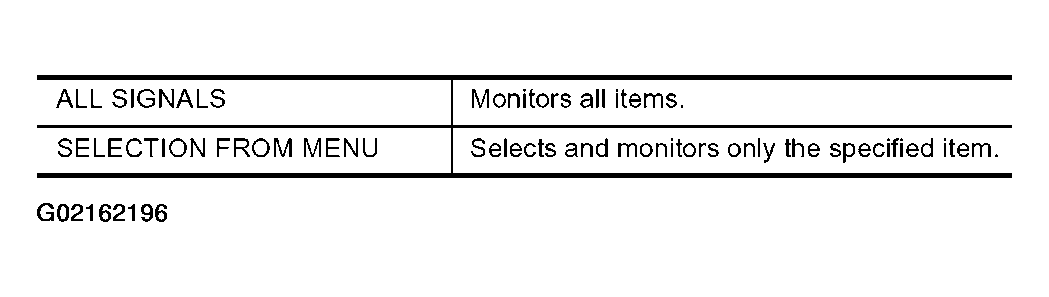

    Fig 1: Data Monitor Operation Procedure Table
    G02162196Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START".
  5. If "SELECTION FROM MENU" is selected, touch the item desired to monitor. If "ALL SIGNALS" is selected, all items are monitored.
  6. During monitoring, touching "COPY" will print the monitored item status.
