Element Check

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Attach probe circuit tester (ohm setting) to antenna terminal on each side.

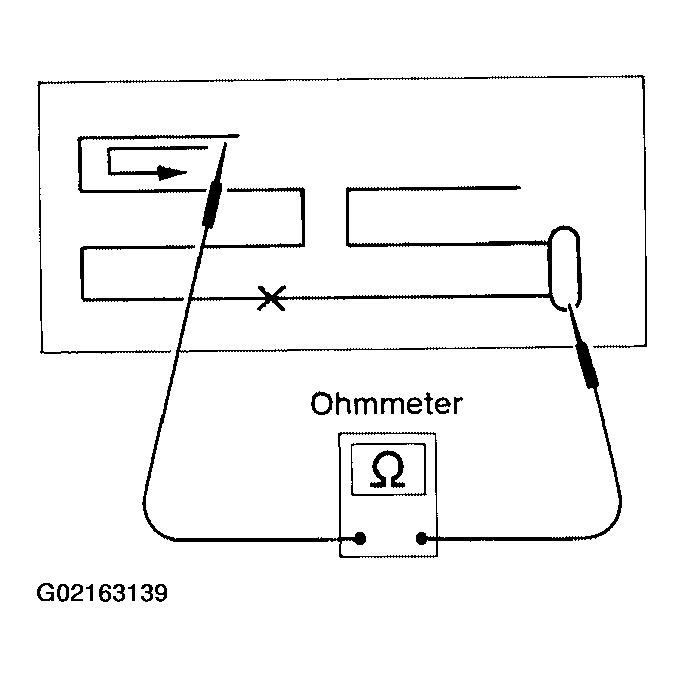

Fig 1: Checking Window Antenna Element
Courtesy of NISSAN MOTOR CO., U.S.A.
- When measuring continuity, wrap tin foil around the top of probe. Then, press the foil against the wire with your finger.

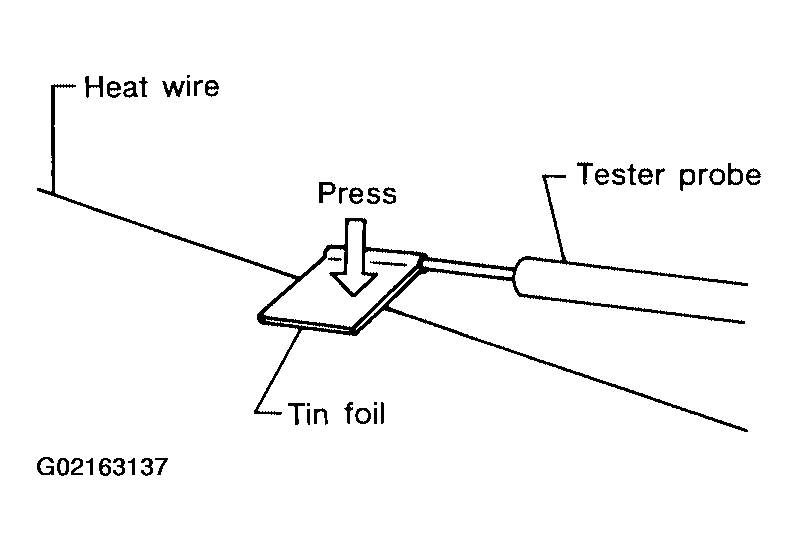

Fig 2: Pressing Foil Against Wire
Courtesy of NISSAN MOTOR CO., U.S.A.
If an element is broken, no continuity will exist.

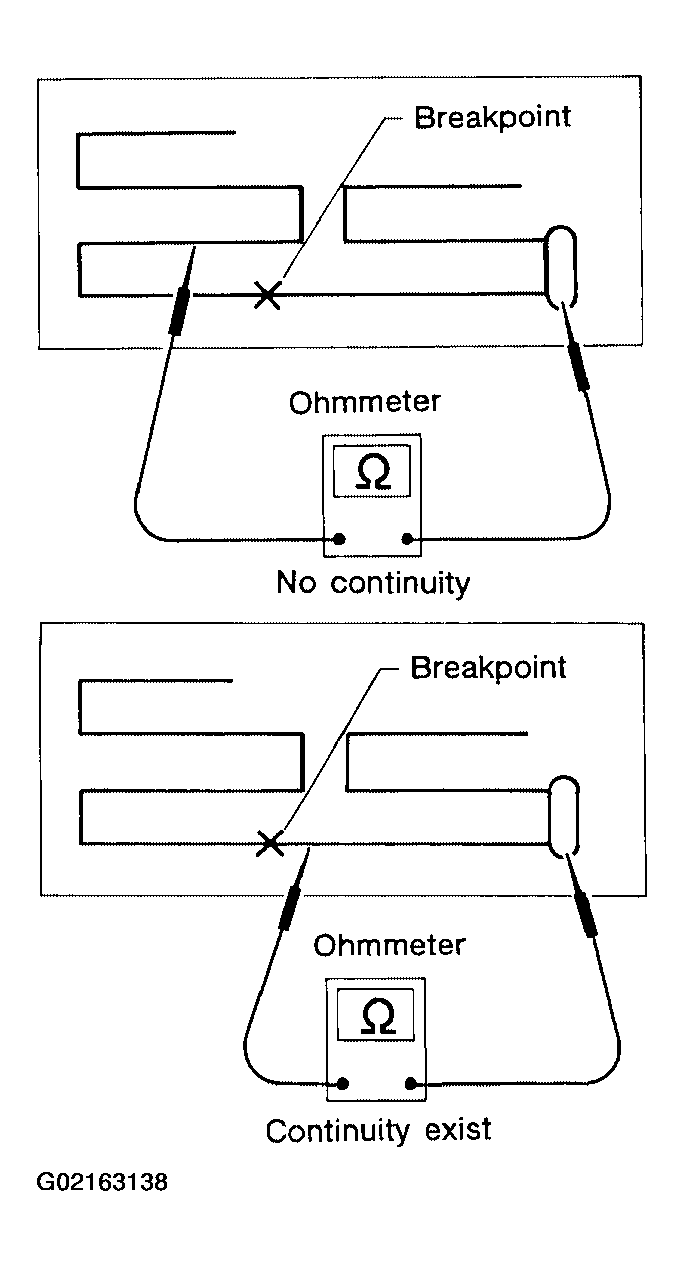

Fig 3: Locating Breakpoints
Courtesy of NISSAN MOTOR CO., U.S.A.
To locate a break, move probe along element. Tester needle will swing abruptly when probe passes the broken point.

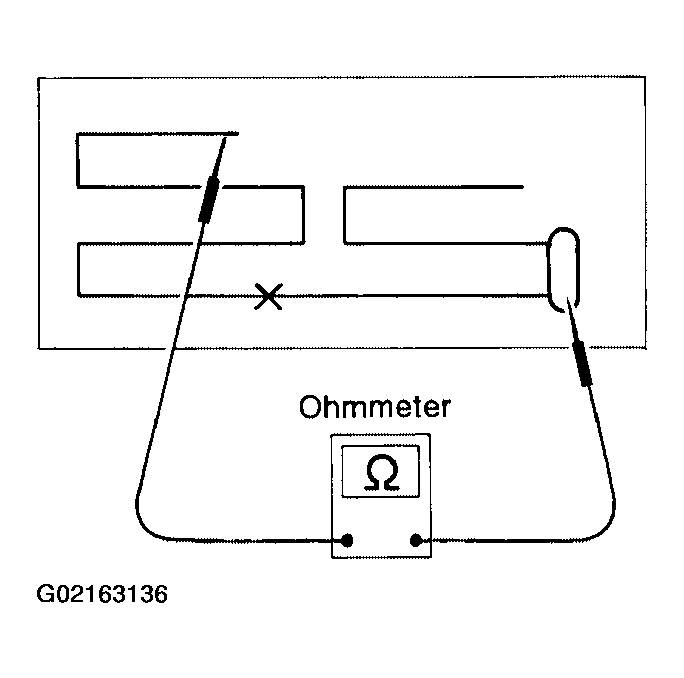

Fig 4: Moving Probe Along Element
Courtesy of NISSAN MOTOR CO., U.S.A.
