CONSULT-II Start Procedure

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

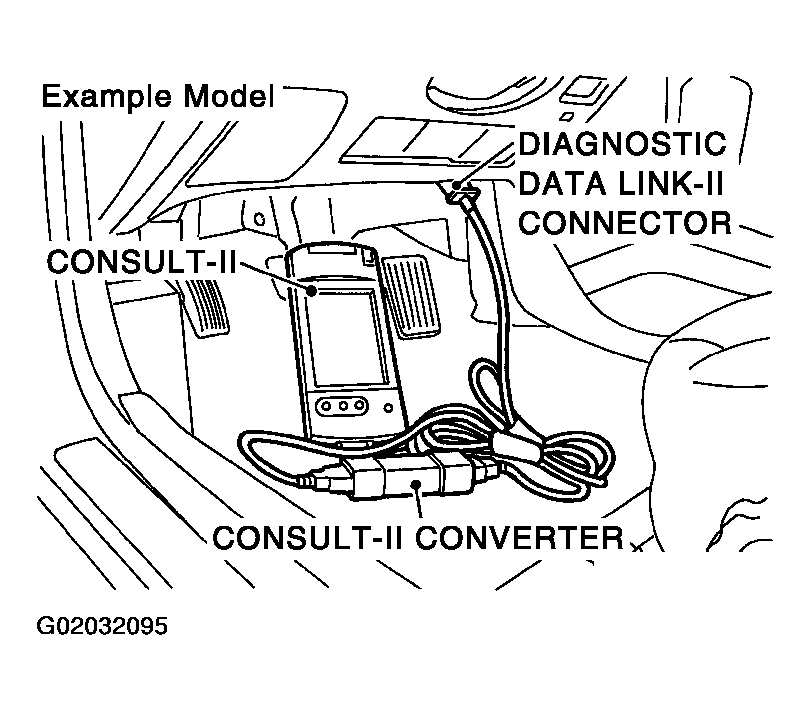

Fig 1: Connecting CONSULT-II Converter To Data Link Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

Turn off the ignition switch.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

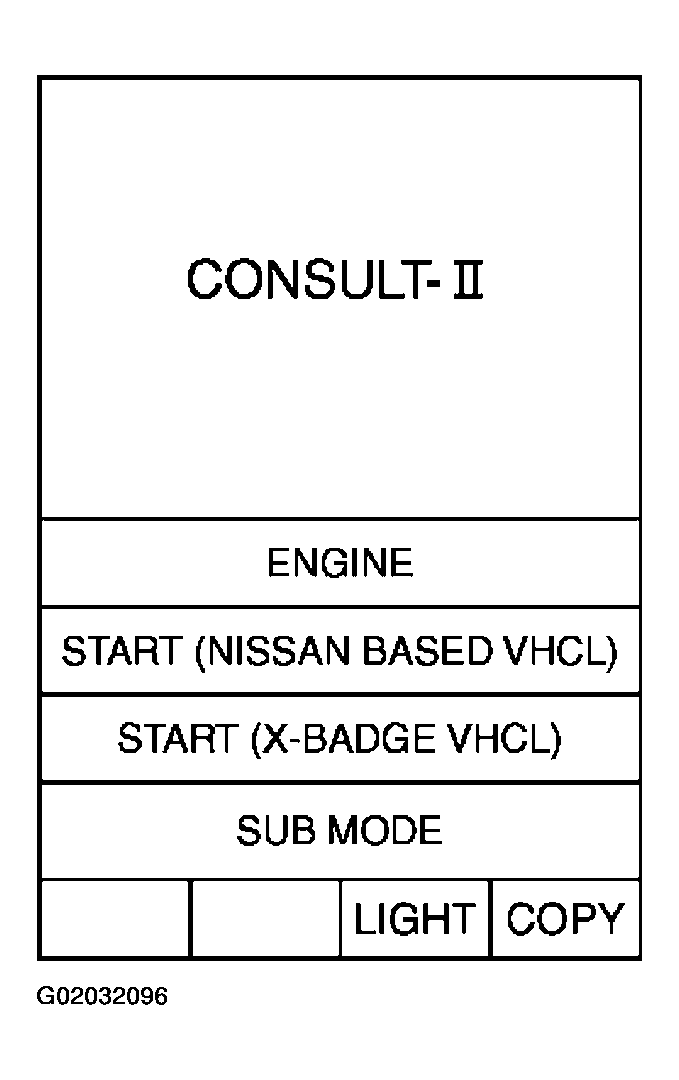

Fig 2: Consult-II Screen Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Turn on the ignition switch.
Touch "START (NISSAN BASED VHCL)" or "System shortcut" (eg: Engine) on the screen.
