Removal And Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove undercover.
  2. Remove suspension member stay.
  3. Drain coolant from radiator.
  4. Disconnect radiator upper and lower hoses.
  5. Remove upper and lower radiator shroud.
  6. Remove A/T oil cooler hoses. (A/T)
  7. Disconnect reservoir tank hose.
  8. Remove radiator mounting bracket.
  9. Remove radiator.
  10. After repairing or replacing radiator, install any part removed in reverse order of removal.

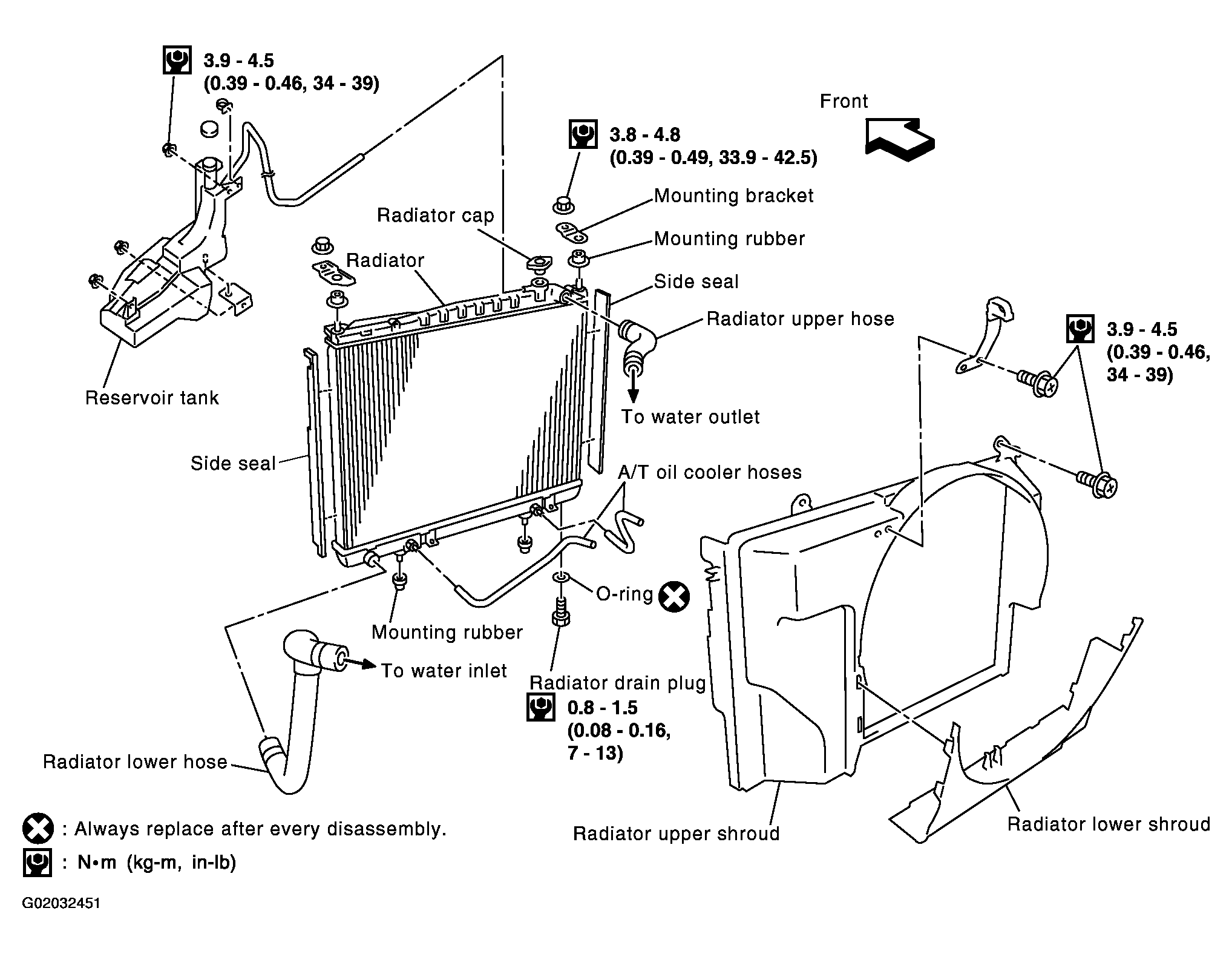

    Fig 1: Removal And Installation-Radiator
    G02032451Courtesy of NISSAN MOTOR CO., U.S.A.
