Checking Radiator Cap

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

To check radiator cap, apply pressure to cap with a tester.

Radiator cap relief pressure:

Standard 78 - 98 kPa (0.8 - 1.0 kg/cm ² , 11 - 14 psi)

Limit 59 kPa (0.6 kg/cm ² , 9 psi)

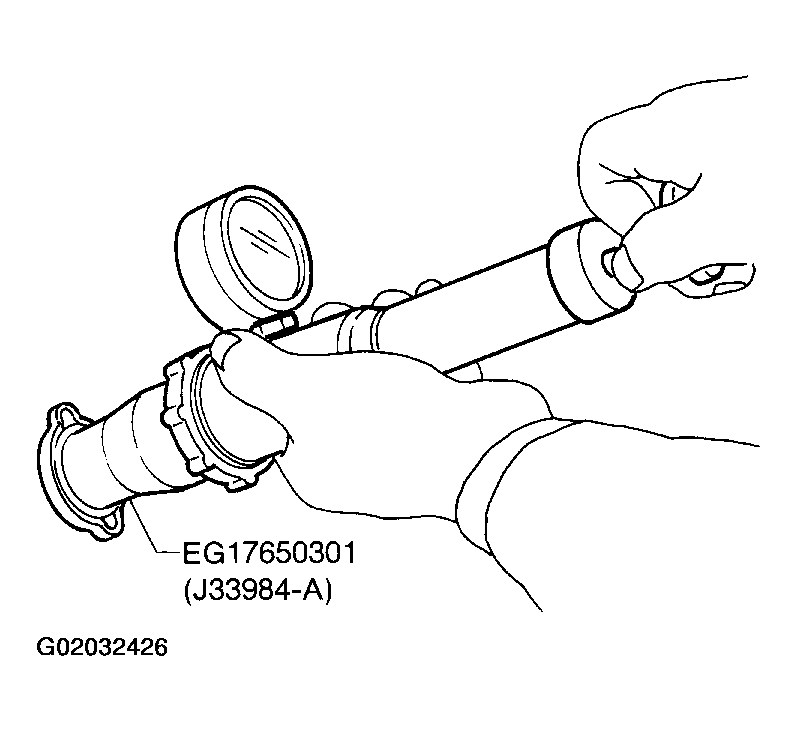

Fig 1: Applying Pressure To Cap With Tester

Courtesy of NISSAN MOTOR CO., U.S.A.

Pull the negative pressure valve to open it.

Check that it closes completely when released.

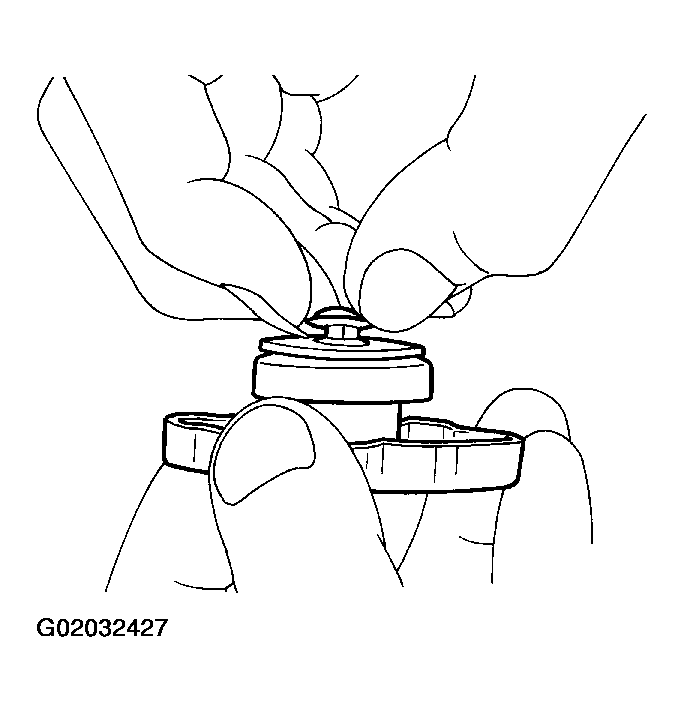

Fig 2: Checking Negative Pressure Valve

Courtesy of NISSAN MOTOR CO., U.S.A.
