Position Switch Check

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

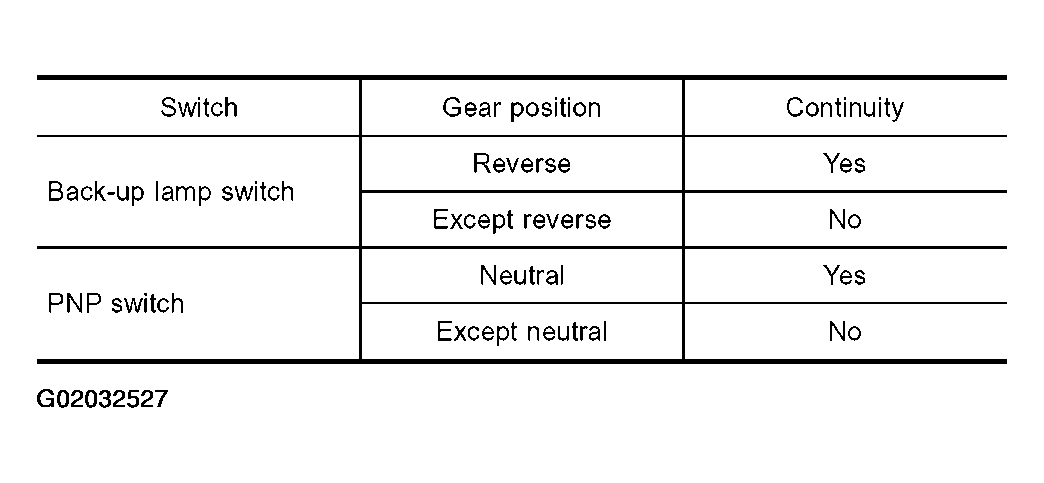

Fig 1: PNP Switch And Back-Up Lamp Switch Continuity Chart
G02032527Courtesy of NISSAN MOTOR CO., U.S.A.

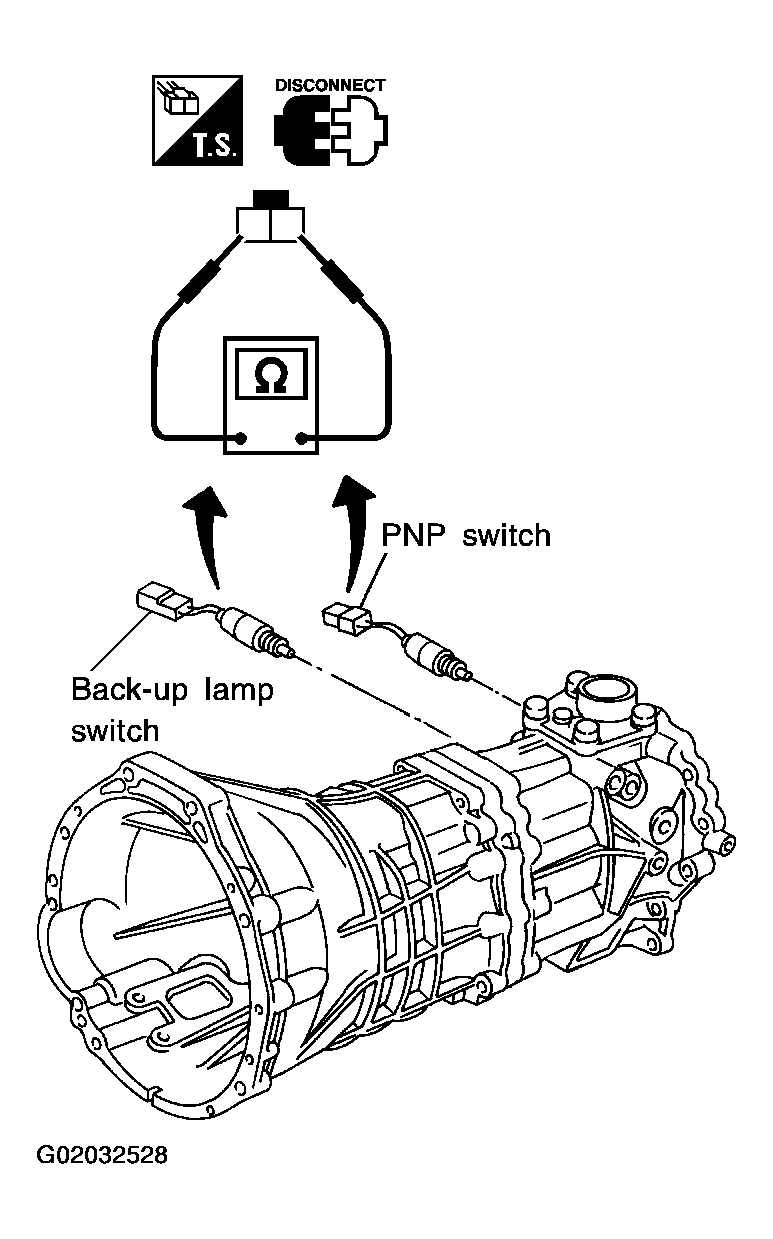

Fig 2: Checking PNP Switch And Back-Up Lamp Switch
G02032528Courtesy of NISSAN MOTOR CO., U.S.A.
