Key Interlock Cable: Installation

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Set key interlock cable to steering lock assembly and install lock plate.
Clamp cable to steering column and fix to control cable with band.
Set selector lever to P position.

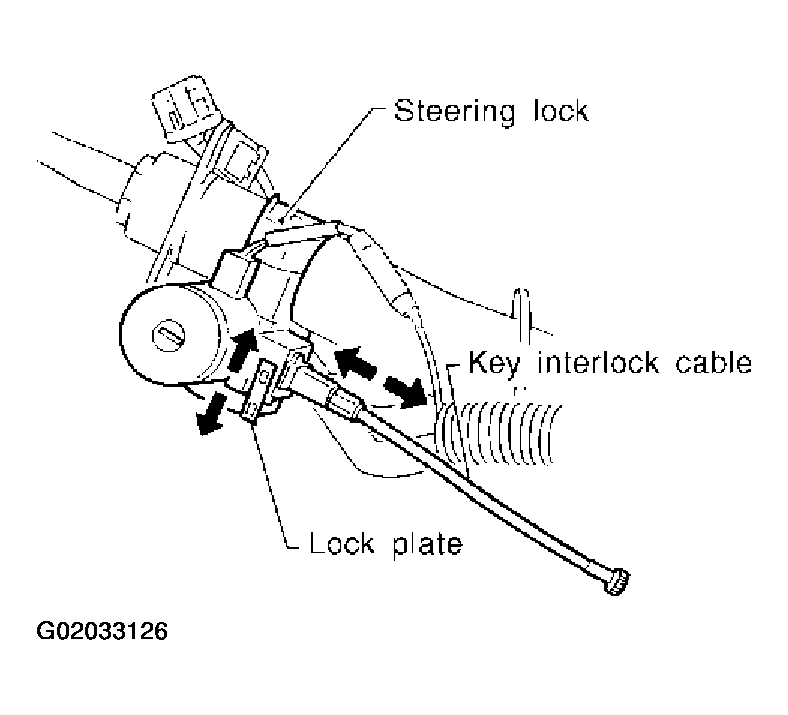

Fig 1: Setting Key Interlock Cable To Steering Lock Assembly And Installing Lock Plate
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert interlock rod into adjuster holder.

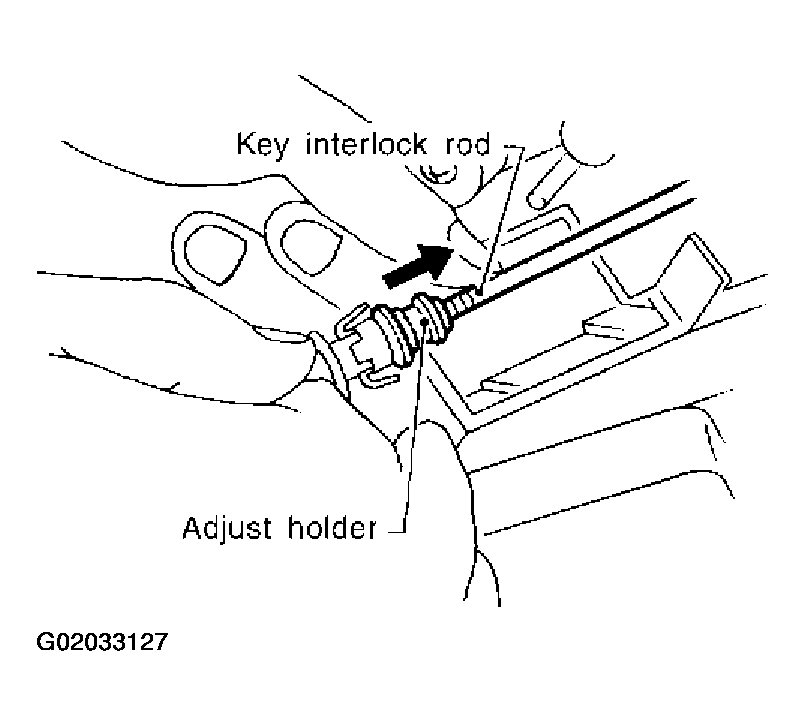

Fig 2: Inserting Interlock Rod Into Adjuster Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
Install casing cap to bracket.
Move slider in order to fix adjuster holder to interlock rod.

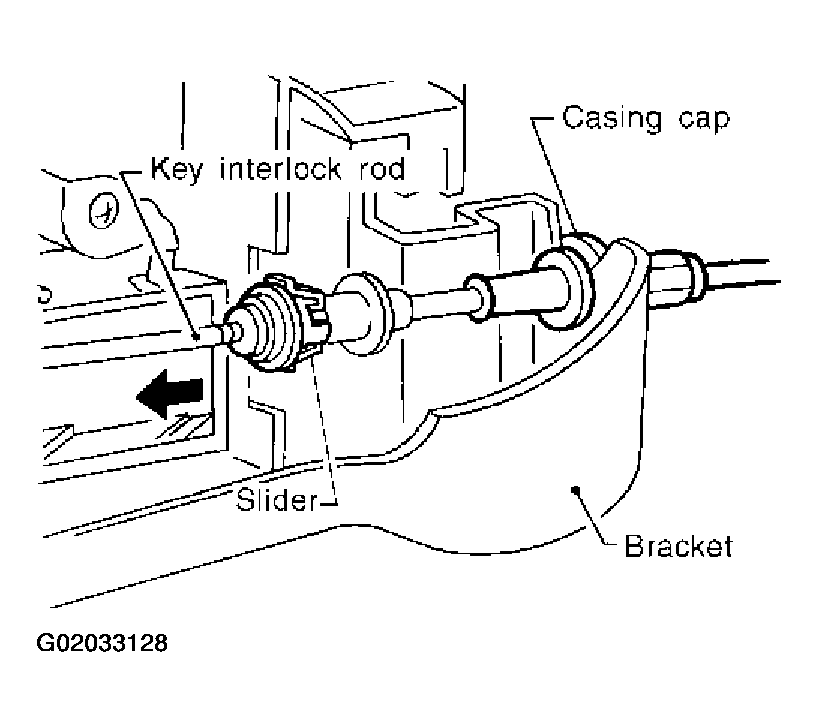

Fig 3: Installing Casing Cap To Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
