Key Interlock Cable: Removal

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Unlock slider from adjuster holder and remove rod from cable.

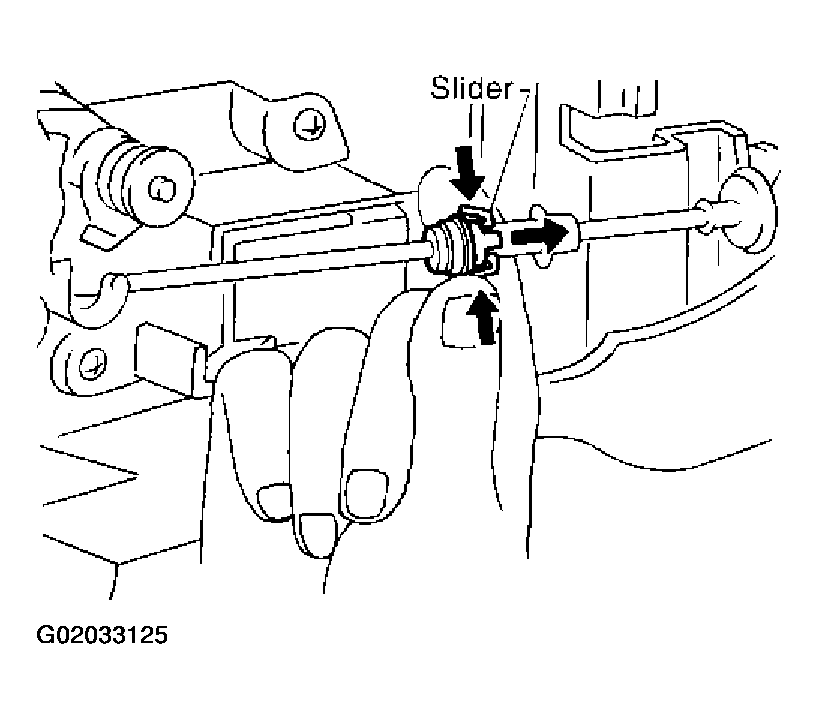

Fig 1: Unlocking Slider From Adjuster Holder And Removing Rod From Cable
G02033125Courtesy of NISSAN MOTOR CO., U.S.A.
