Back-up Control (Engine brake)

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

If the selector lever is shifted to "2" position while driving in D4 (OD) or D3 , great driving force is applied to the clutch inside the transmission. Clutch operating pressure (line pressure) must be increased to deal with this driving force.

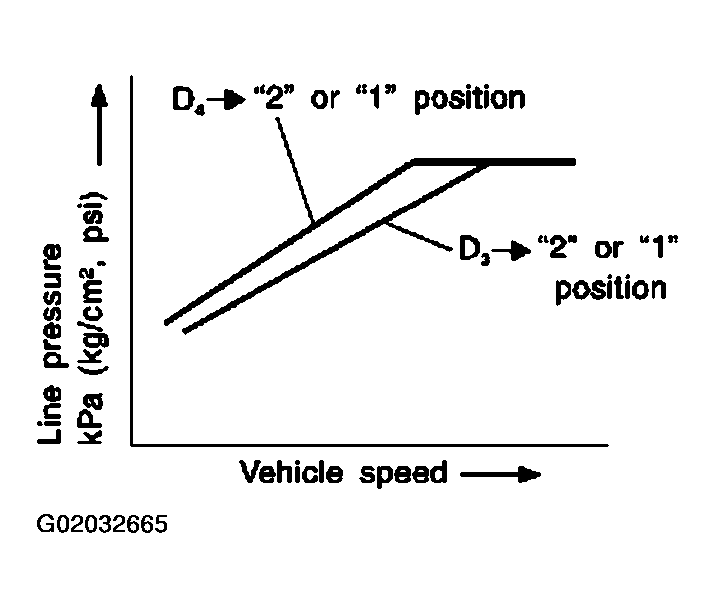

Fig 1: Line Pressure During Engine Braking
G02032665Courtesy of NISSAN MOTOR CO., U.S.A.
