Normal Control

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

The line pressure to throttle opening characteristics is set for suitable clutch operation.

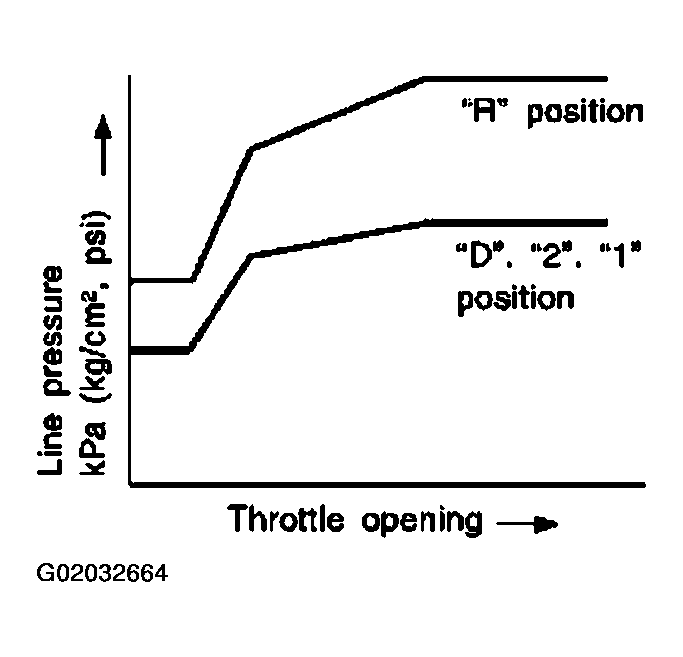

Fig 1: Line Pressure To Throttle Opening Characteristics During Normal Control
G02032664Courtesy of NISSAN MOTOR CO., U.S.A.
