Section 841 (Automatic Transmission): Overhaul: Components

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

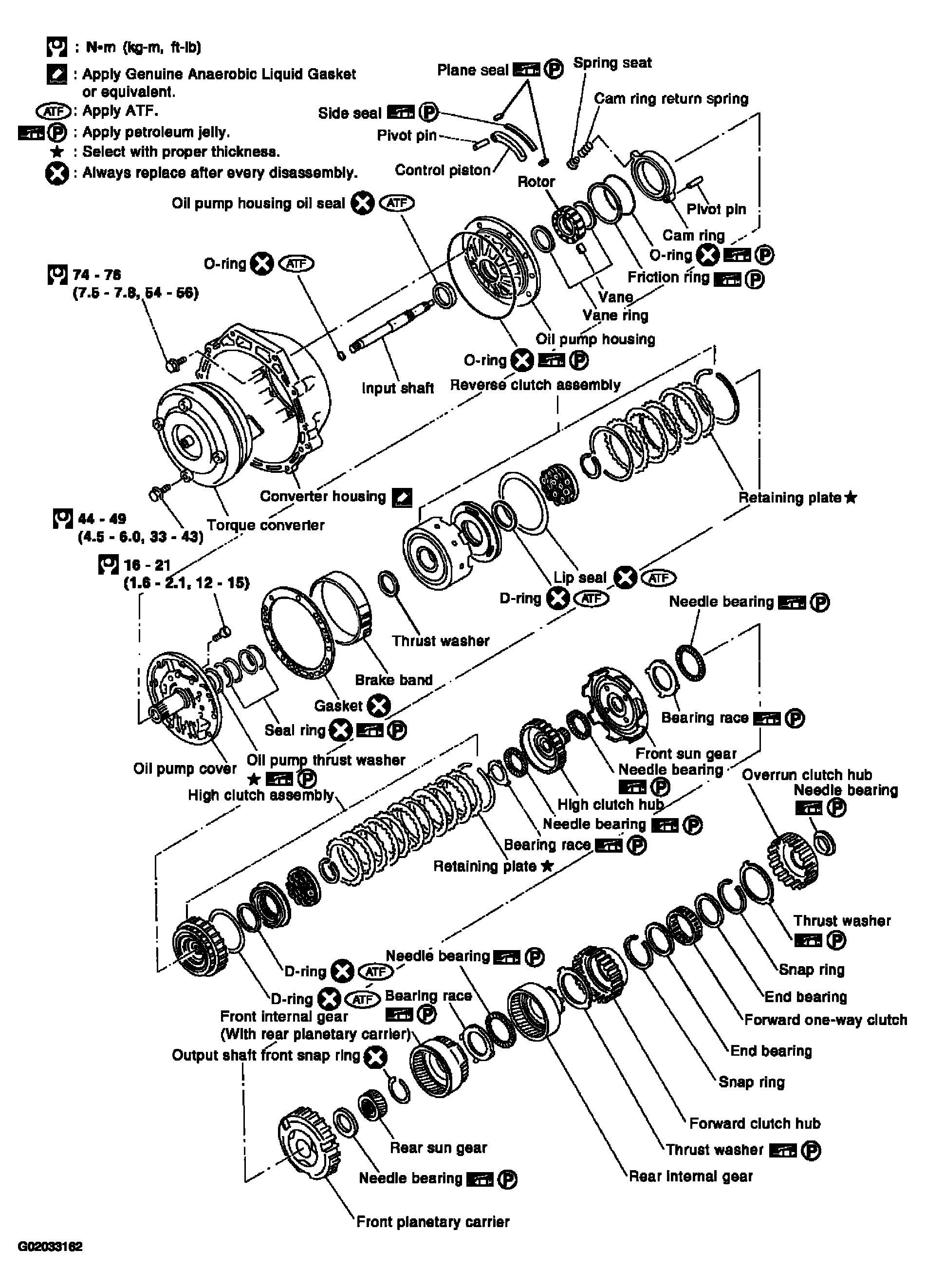

Fig 1: Exploded View Of Automatic Transaxle
G02033162Courtesy of NISSAN MOTOR CO., U.S.A.

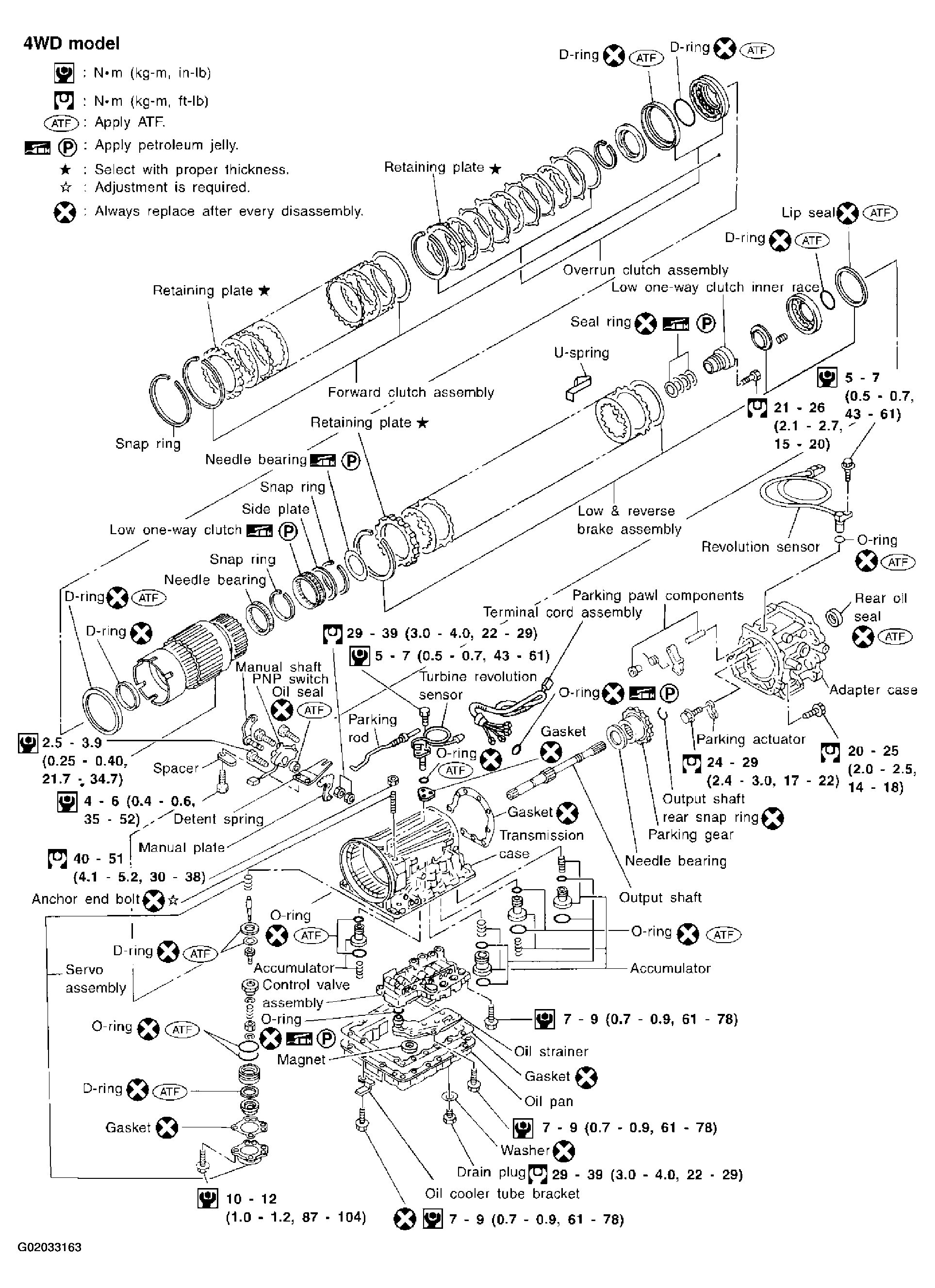

Fig 2: Exploded View Of Automatic Transaxle - 4WD Model
G02033163Courtesy of NISSAN MOTOR CO., U.S.A.

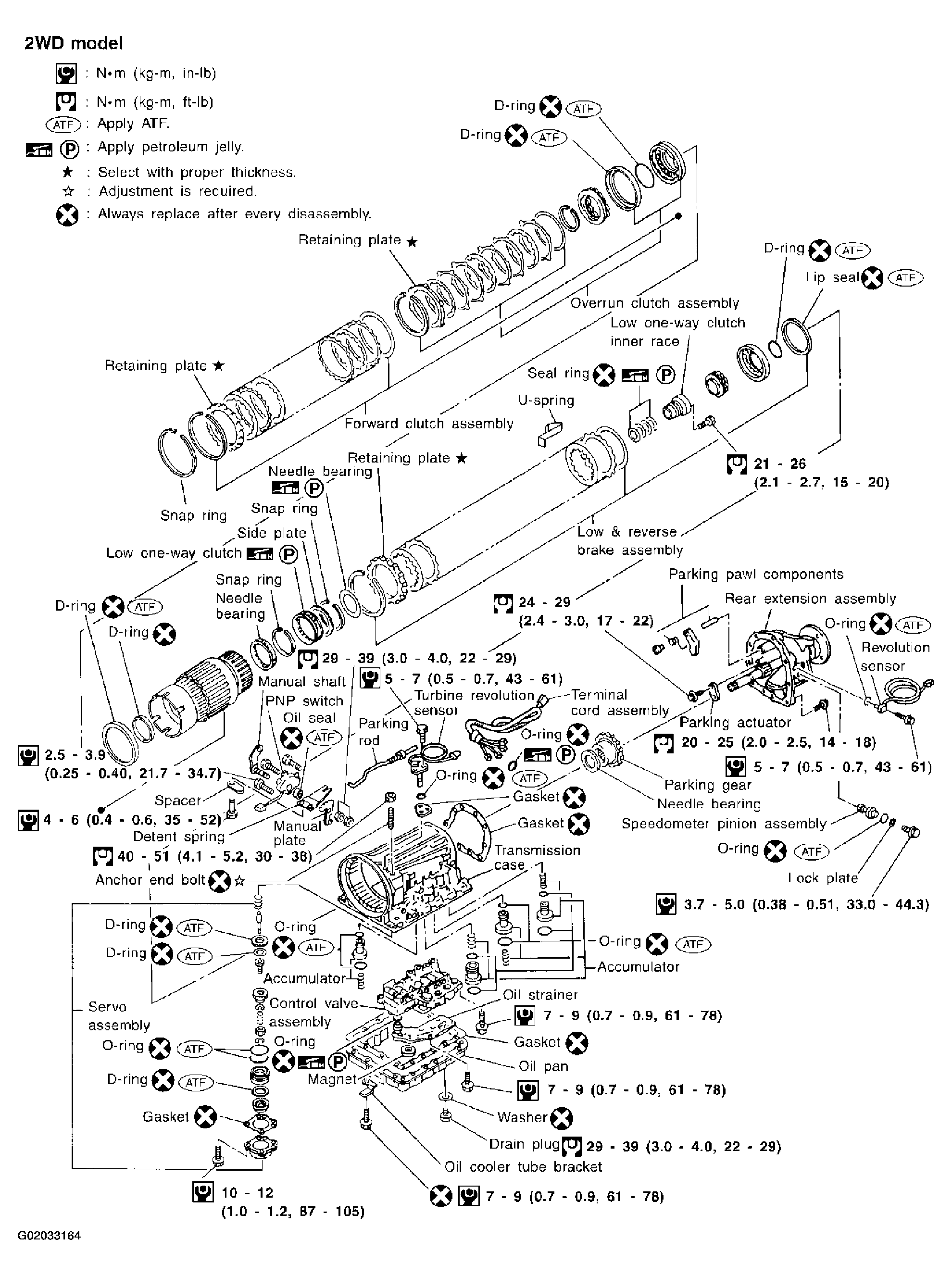

Fig 3: Exploded View Of Automatic Transaxle - 2WD Model
G02033164Courtesy of NISSAN MOTOR CO., U.S.A.
