Control Valve Assembly: Assembly

1. Place oil circuit of upper body face up. Install steel balls in their proper positions.

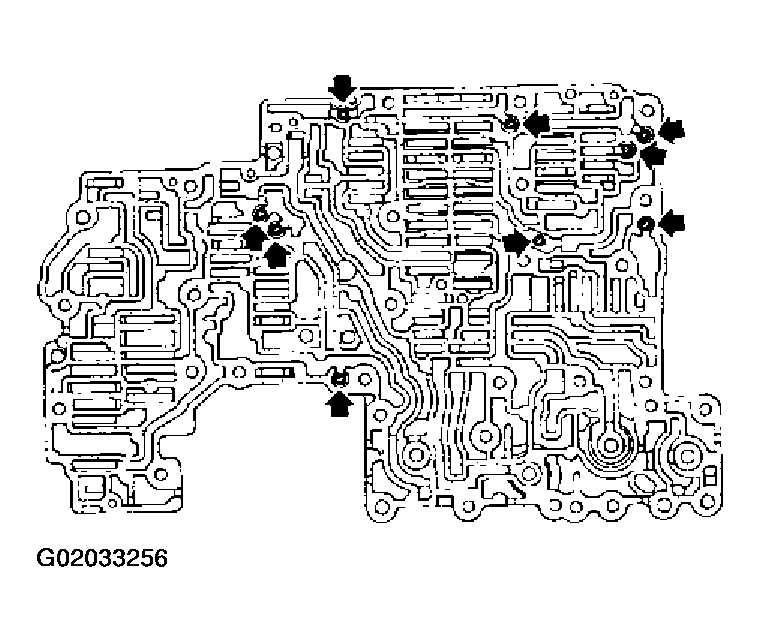

   Fig 1: Identifying Proper Position Of Steel Balls

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Install reamer bolts from bottom of upper body.

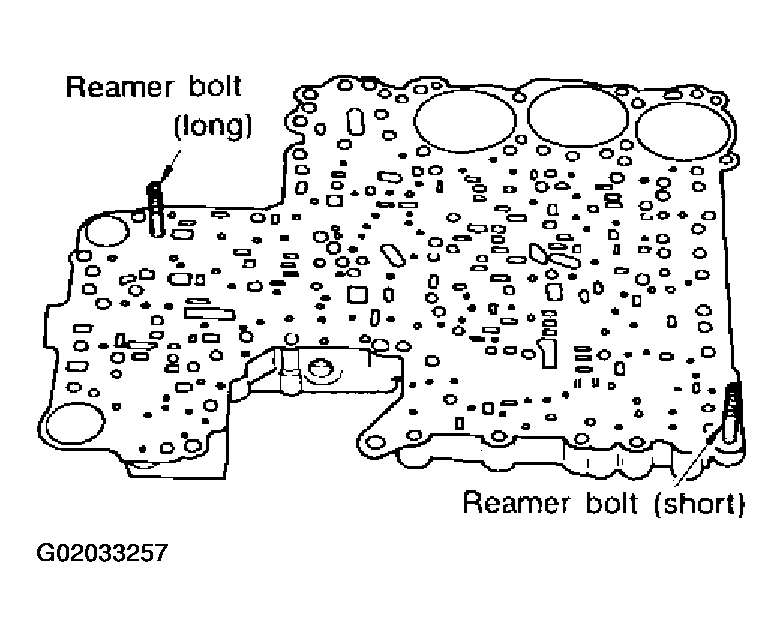

   Fig 2: Locating Reamer Bolts

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Place oil circuit of lower body face up. Install orifice check spring, orifice check valve and pilot filter.

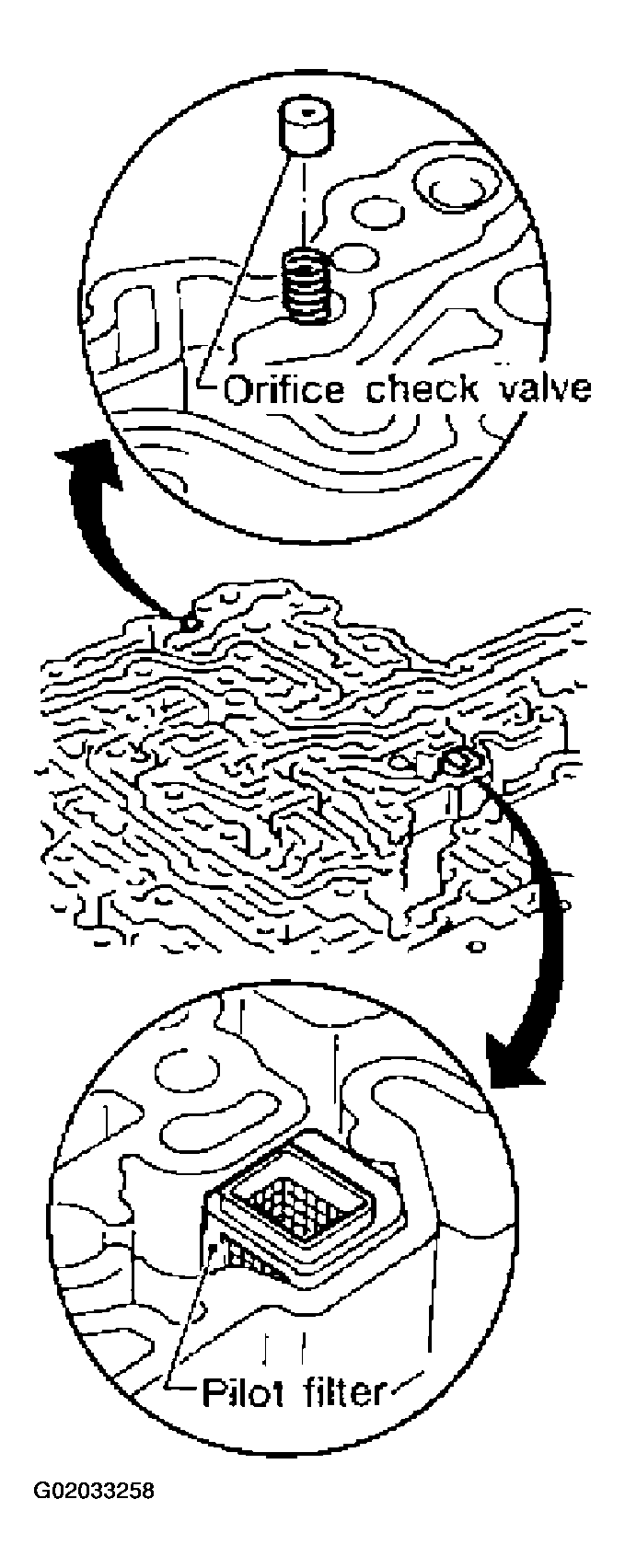

   Fig 3: Installing Orifice Check Spring, Orifice Check Valve And Pilot Filter

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Install lower separator plate on lower body.
5. Install and temporarily tighten support plates, A/T fluid temperature sensor and tube brackets.

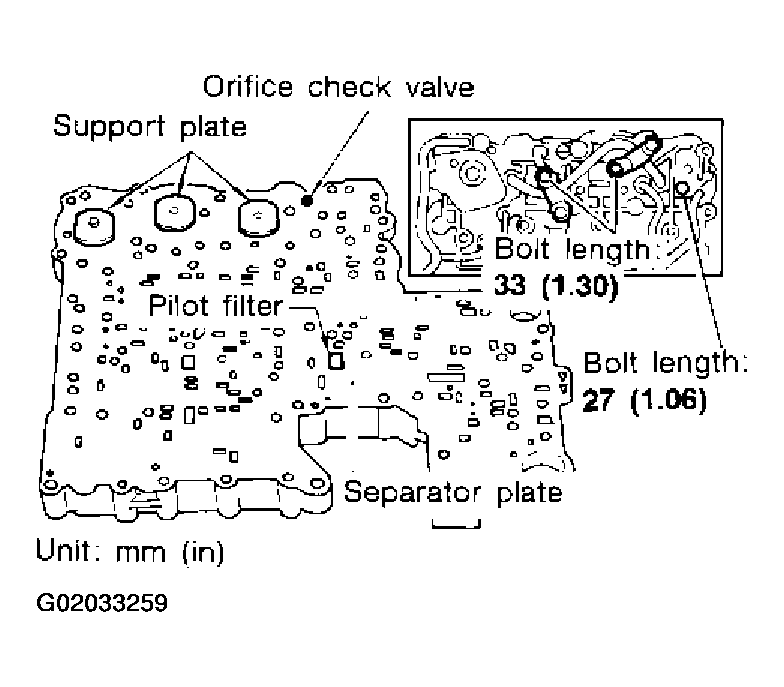

   Fig 4: Installing Support Plates, A/T Fluid Temperature Sensor And Tube Brackets

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Temporarily assemble lower and upper bodies, using reamer bolt as a guide.

• Be careful not to dislocate or drop steel balls, orifice check spring, orifice check valve and pilot filter.

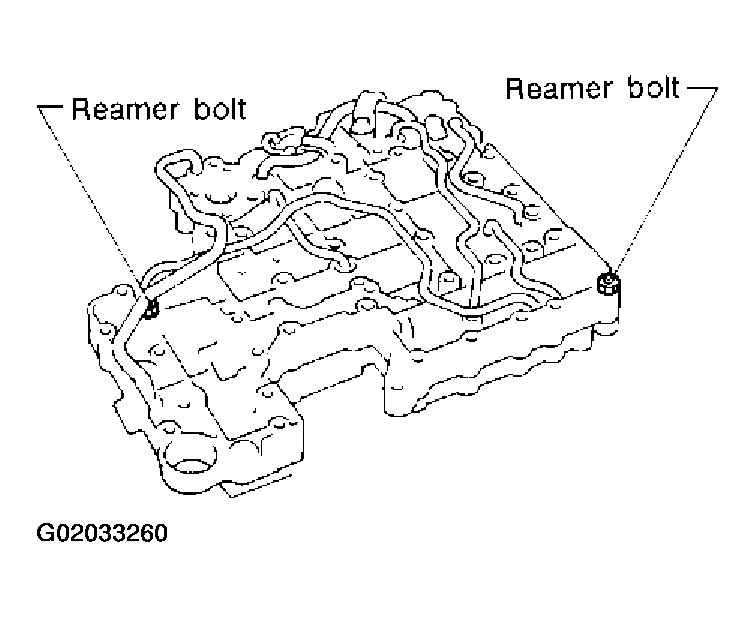

  Fig 5: Identifying Reamer Bolts

  Courtesy of NISSAN MOTOR CO., U.S.A.

Bolt length and location:

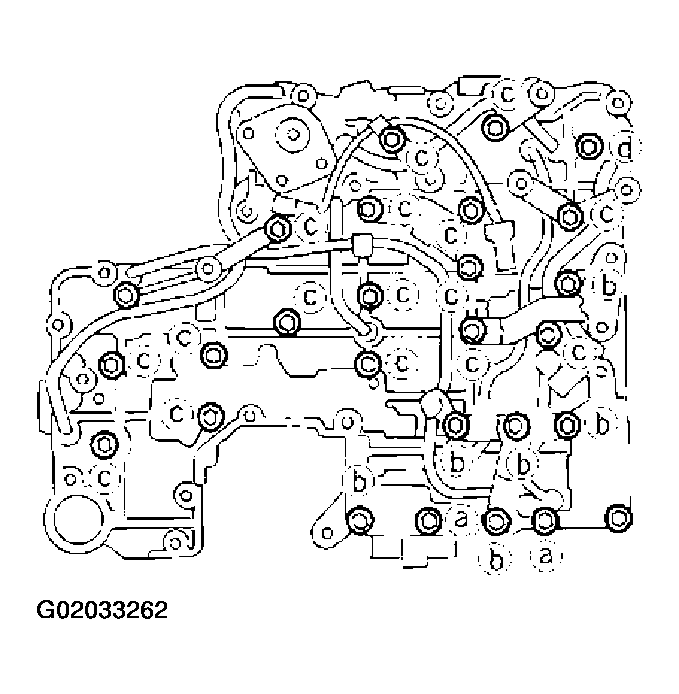

Fig 6: Control Valve Assembly Bolt Length And Location (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

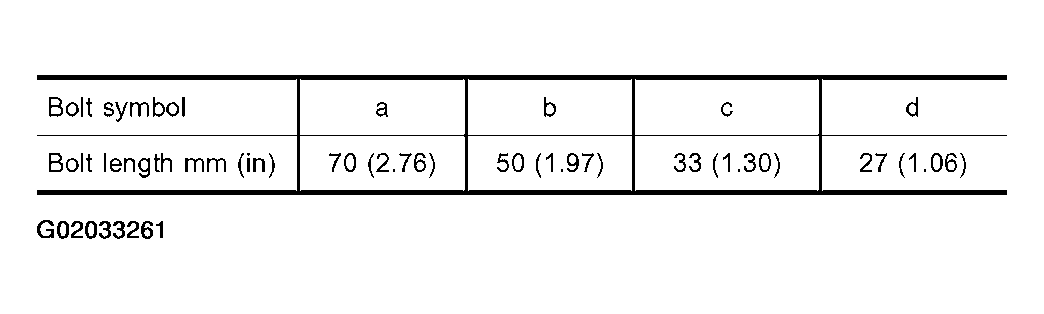

Fig 7: Control Valve Assembly Bolt Length And Location (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Attach O-ring and install torque converter clutch solenoid valve and side plates onto lower body.

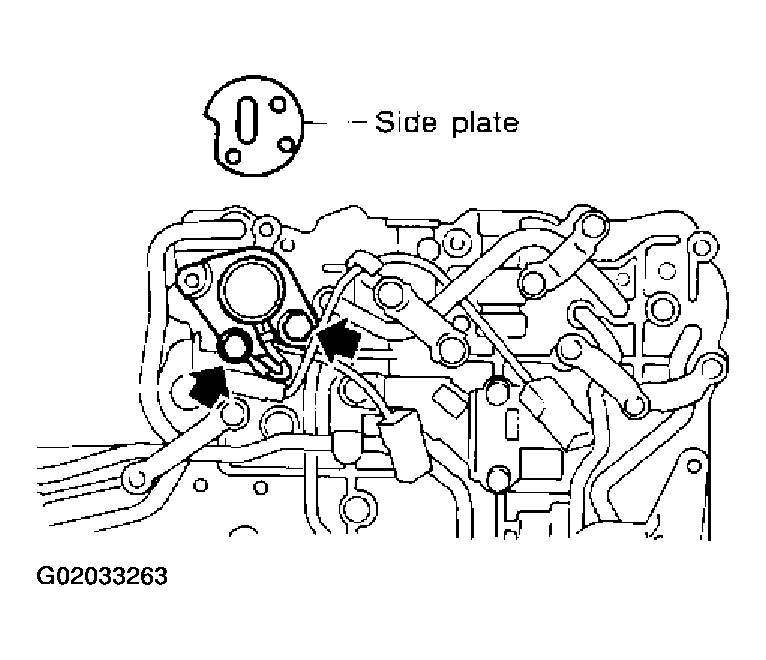

   Fig 8: Installing Torque Converter Clutch Solenoid Valve And Side Plates Onto Lower Body

   Courtesy of NISSAN MOTOR CO., U.S.A.

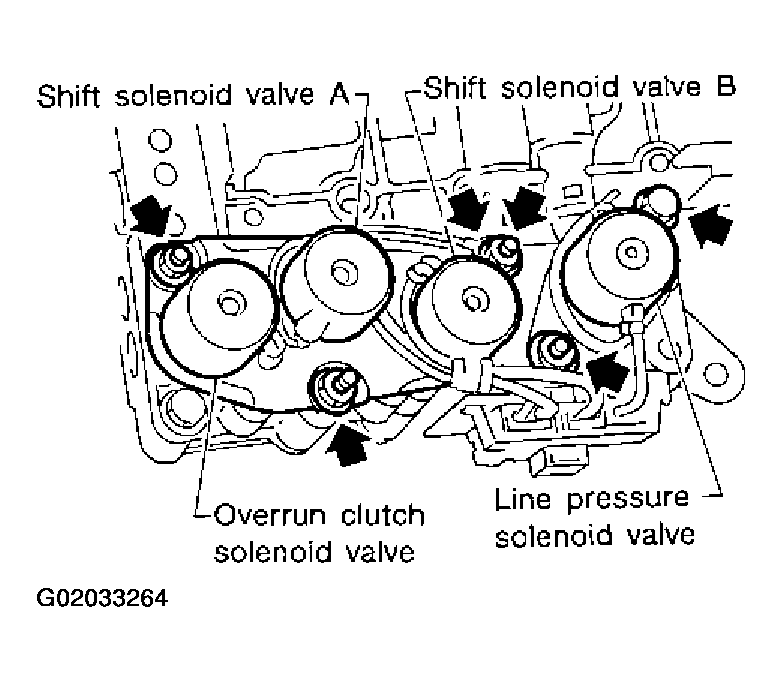

2. Attach O-rings and install 3-unit solenoids assembly onto upper body.
3. Attach O-ring and install line pressure solenoid valve onto upper body.
