Tooth Contact: Notes

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Drain the oil.
Remove the rear cover. Refer to REMOVAL OF DIFFERENTIAL ASSEMBLY .
Attach dummy cover set. Refer to RING GEAR TO DRIVE PINION BACKLASH .

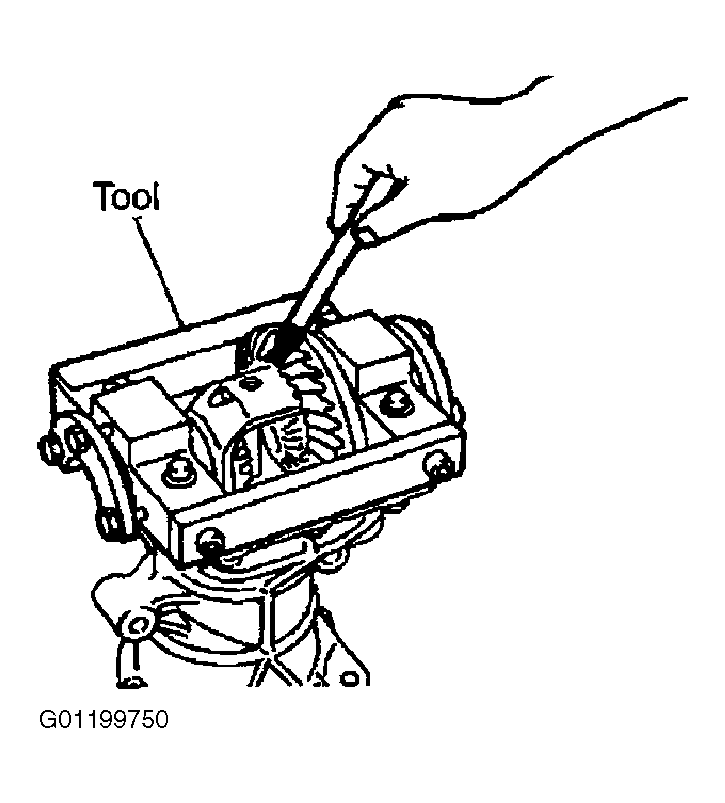

Fig 1: Applying Ferric Oxide And Oil On Teeth Of Ring Gear
Courtesy of NISSAN MOTOR CO., U.S.A.

Tool Number:KV381086S1 ( - )
Thoroughly clean ring gear and drive pinion teeth.
Lightly apply a mixture of powdered ferric oxide and oil or the equivalent. Apply it to 3 to 4 teeth of ring gear drive side.
Rotate the ring gear back and forth in several times, check drive pinion gear to ring gear tooth contact.

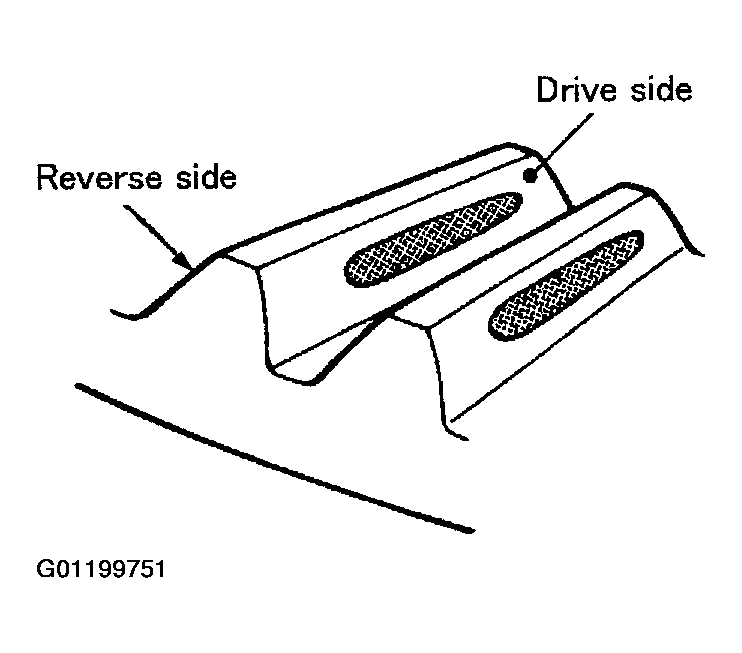

Fig 2: Checking Tooth Contact On Drive Side And Reverse Side
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Check tooth contact on drive side and reverse side.

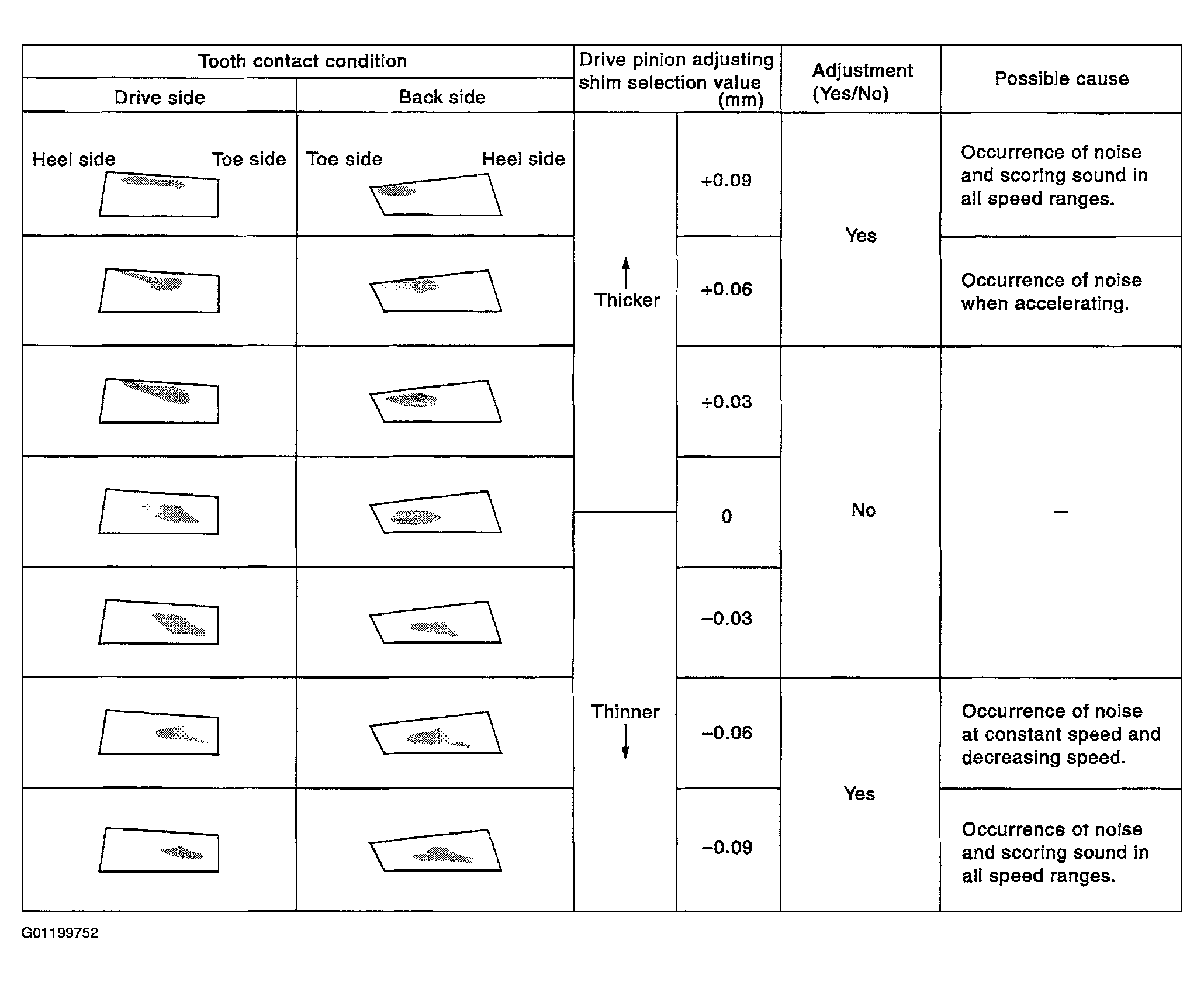

Fig 3: Tooth Contact Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
If the tooth contact is improperly adjusted, follow the procedure in Fig 4 to adjust the pinion height (dimension X in the figure).

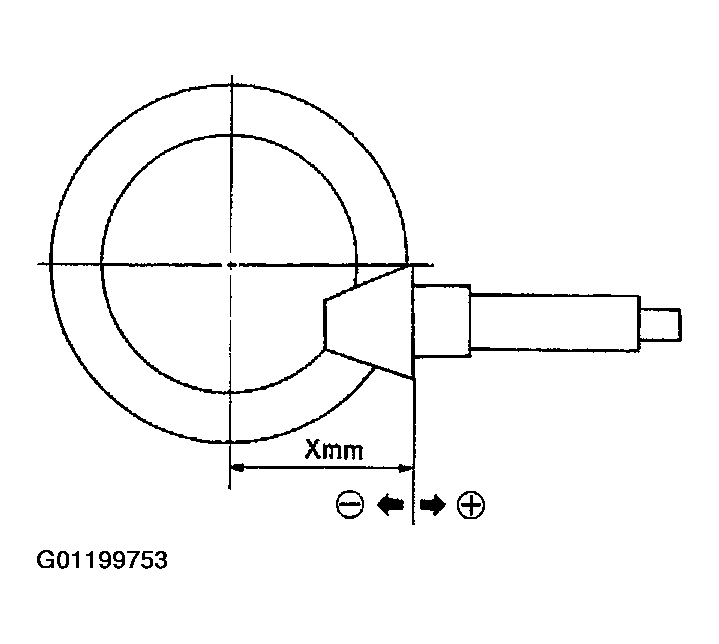

Fig 4: Adjusting Procedure Of Pinion Height Dimension
Courtesy of NISSAN MOTOR CO., U.S.A.
