CONSULT-II Basic Operation Procedure

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

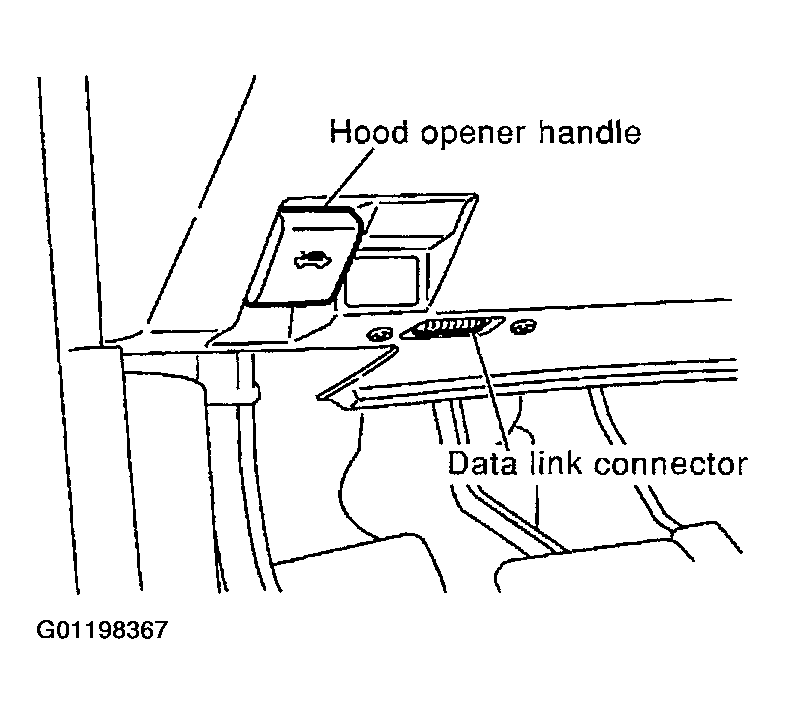

Fig 1: Identifying Hood Opener Handle And Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch START (NISSAN BASED VHCL).

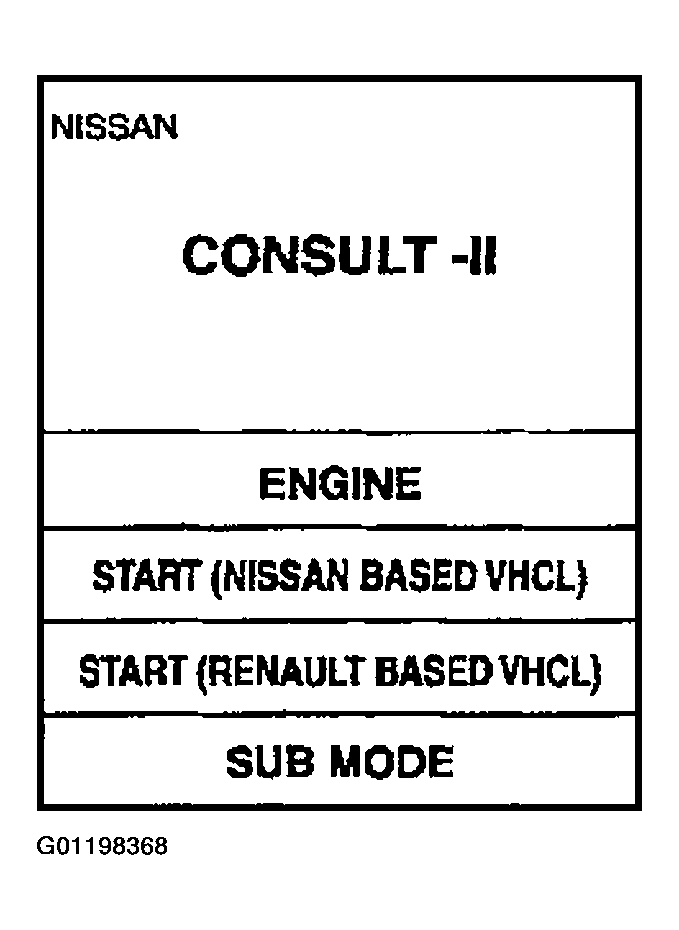

Fig 2: CONSULT-II DISPLAY Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch BCM on SELECT SYSTEM screen.
If BCM is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

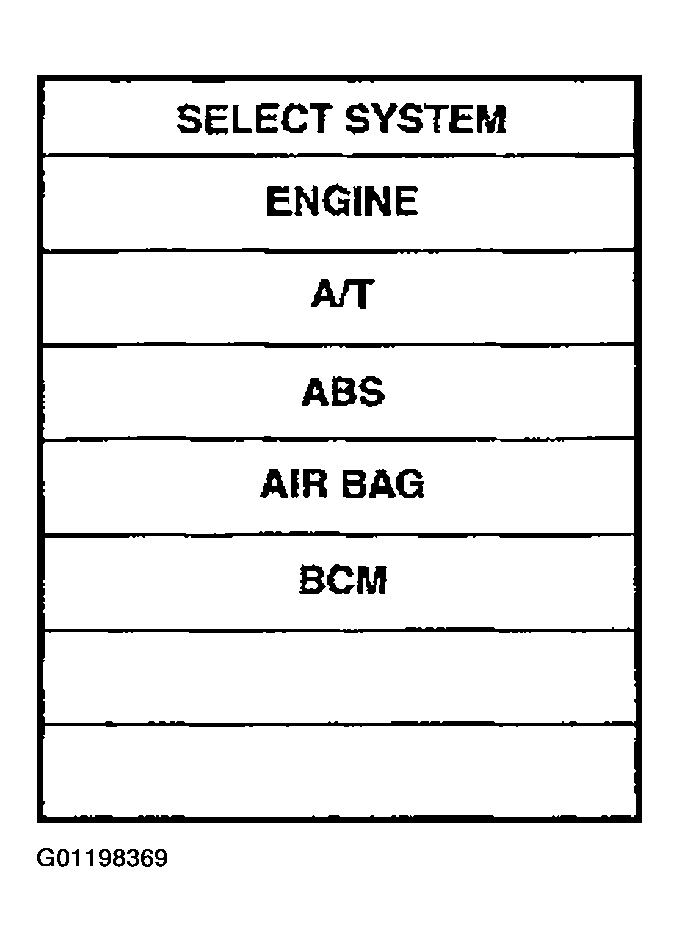

Fig 3: CONSULT-II SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select item to be diagnosed on SELECT TEST ITEM screen.

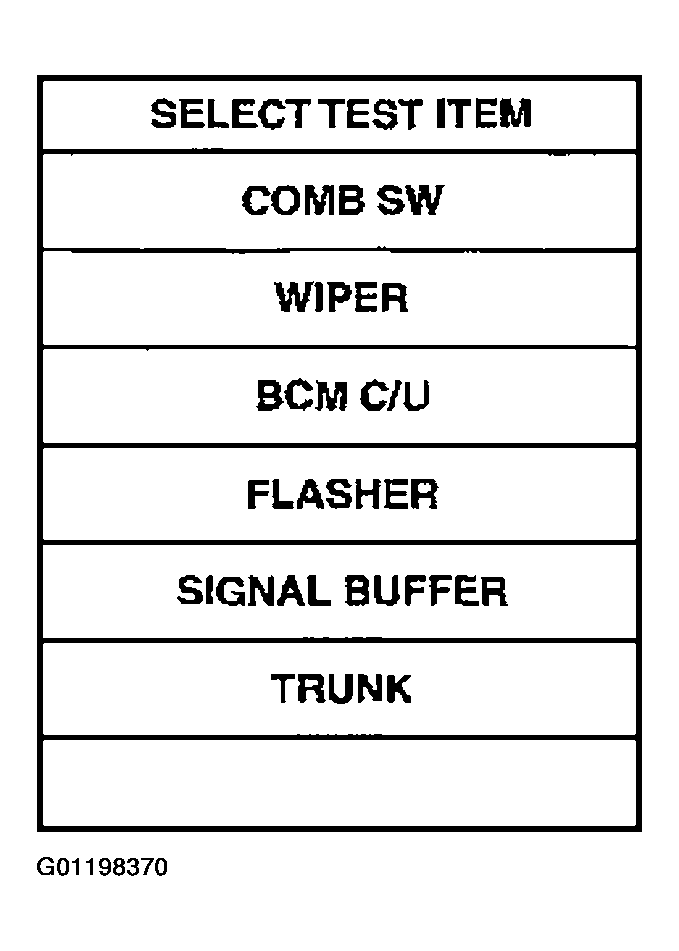

Fig 4: CONSULT-II SELECT TEST ITEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
