Security Indicator Lamp Check

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

SECURITY INDICATOR LAMP ACTIVE TEST
With CONSULT-II

Check THEFT IND in ACTIVE TEST mode with CONSULT-II.

Perform operation shown on display indicator lamp should illuminate.

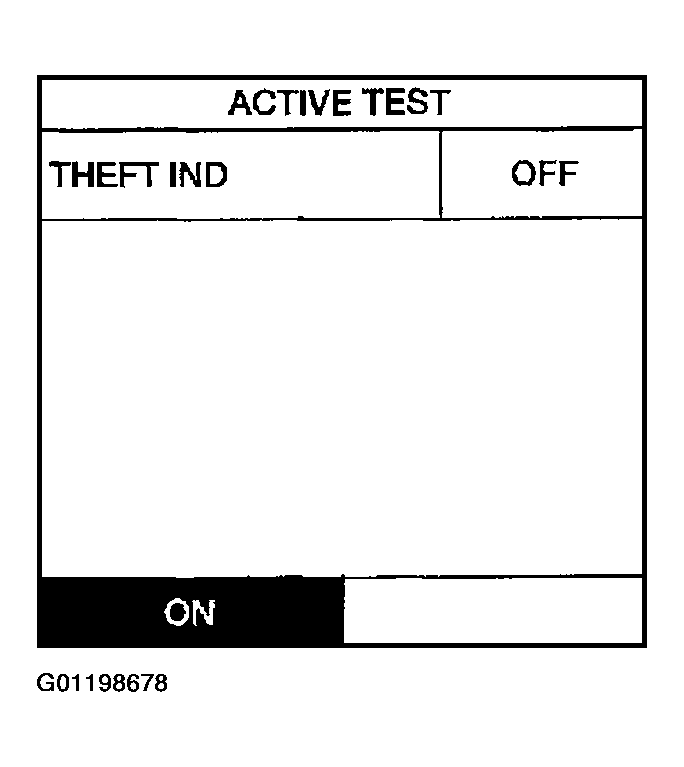

Fig 1: CONSULT-II ACTIVE TEST Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Disconnect BCM harness connector M37.
2. Check voltage between BCM harness connector M37 terminal 55 (G/O) and ground.

  Fig 2: Checking Voltage Between BCM And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Battery voltage should exist.
OK or NG
1. OK: Security indicator lamp is OK.
2. NG: GO TO 2.
Check Power Supply Circuit For Security Indicator Lamp
1. Disconnect security indicator lamp connector.
2. Check voltage between combination meter (security indicator lamp) connector M25 terminal 21 (Y/R) and ground.

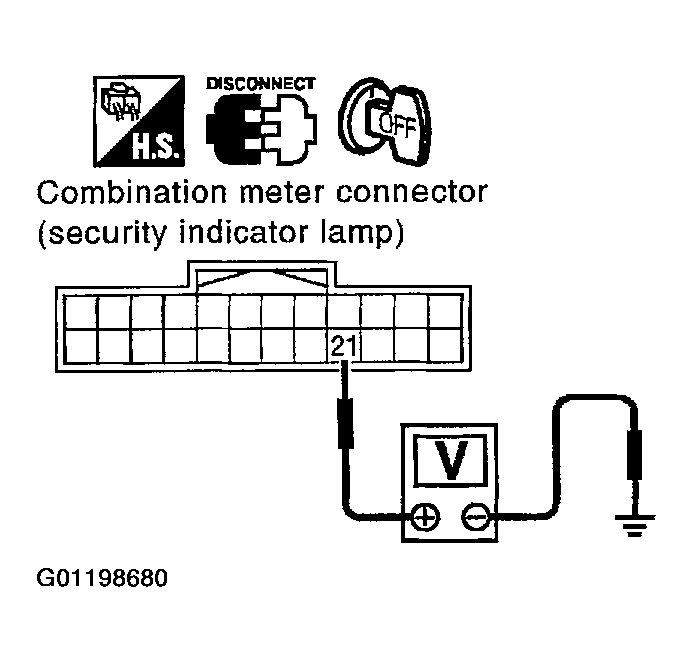

  Fig 3: Checking Voltage Between Combination Meter And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Battery voltage should exist.
OK or NG
1. OK: Check the following.
  - Harness for open or short between combination meter (security indicator lamp) and BCM.
  - Indicator lamp condition
2. NG: Check the following.
  - 10A fuse [No. 21, located infuse block (J/B)]
  - Harness for open or short between security indicator lamp and fuse
