Intake Sensor

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

After disconnecting intake sensor connector, measure resistance between terminals 1 and 2 at sensor harness side, using the table below.

Fig 1: Intake Sensor Temperature & Resistance Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace intake sensor.

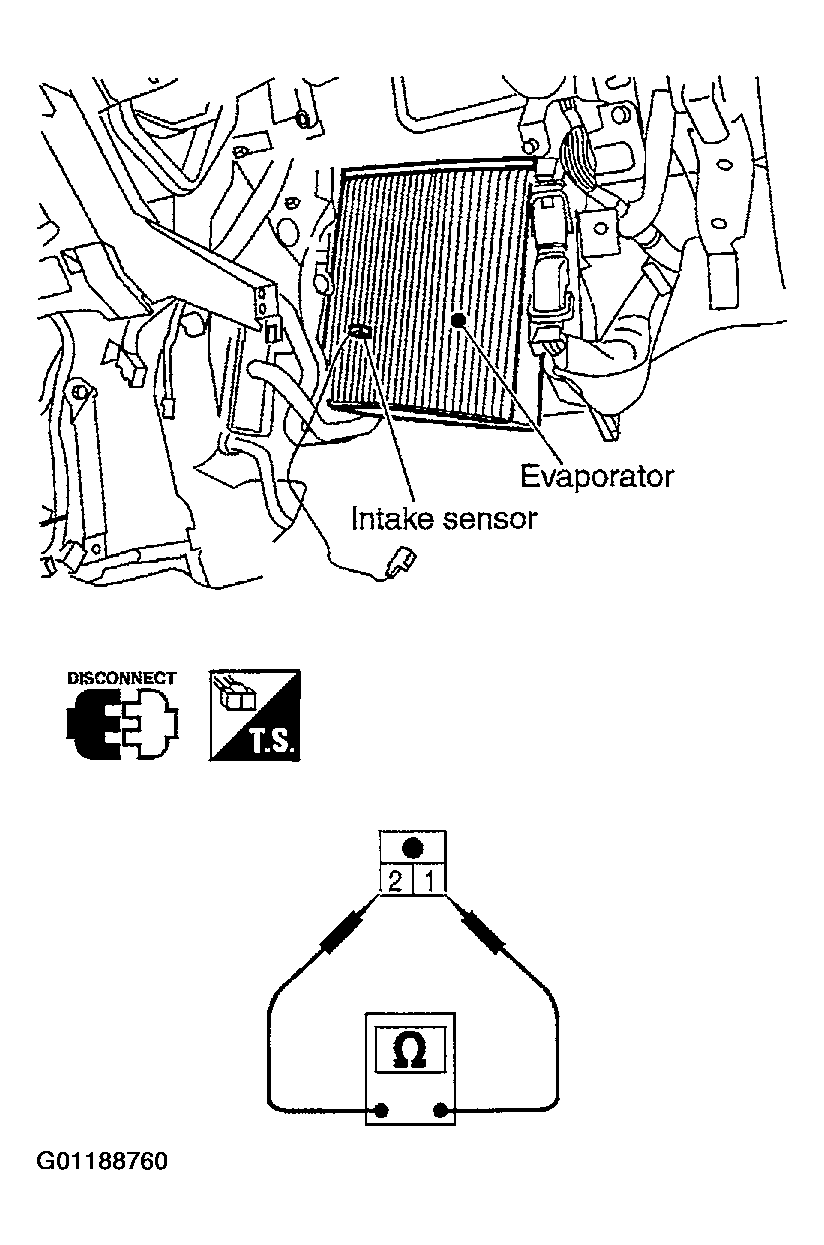

Fig 2: Identifying Intake Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
