Disassembly And Assembly Of Combination Meter: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

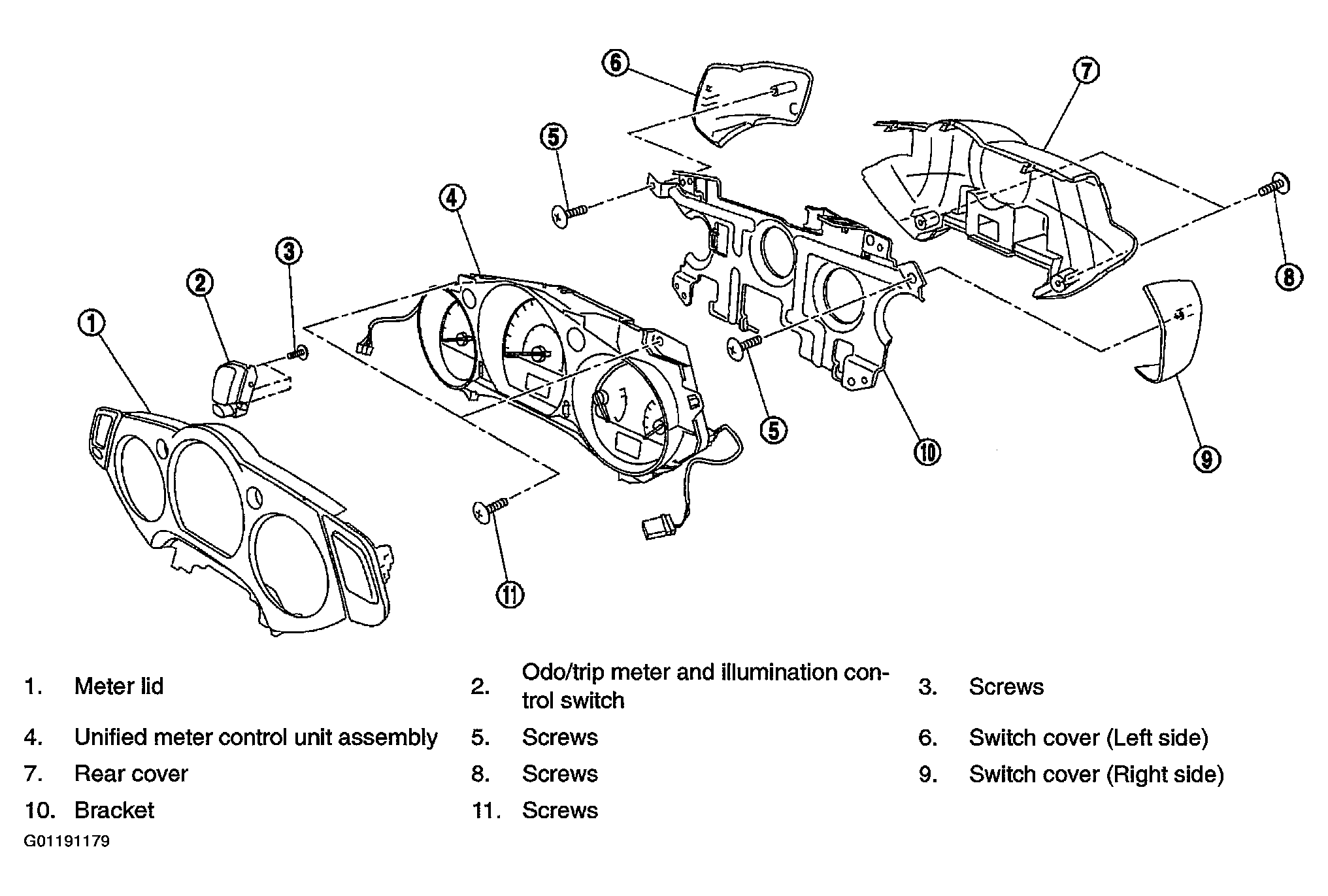

Fig 1: Exploded View Of Combination Meter

Courtesy of NISSAN MOTOR CO., U.S.A.

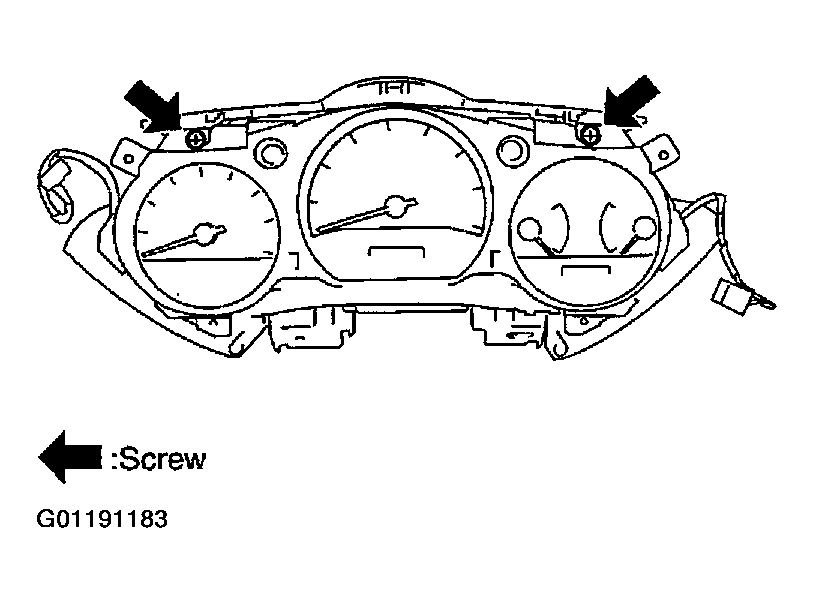

Remove screws (2). Disconnect odo/trip meter and illumination control switch and hazard switch connectors and remove meter lid.

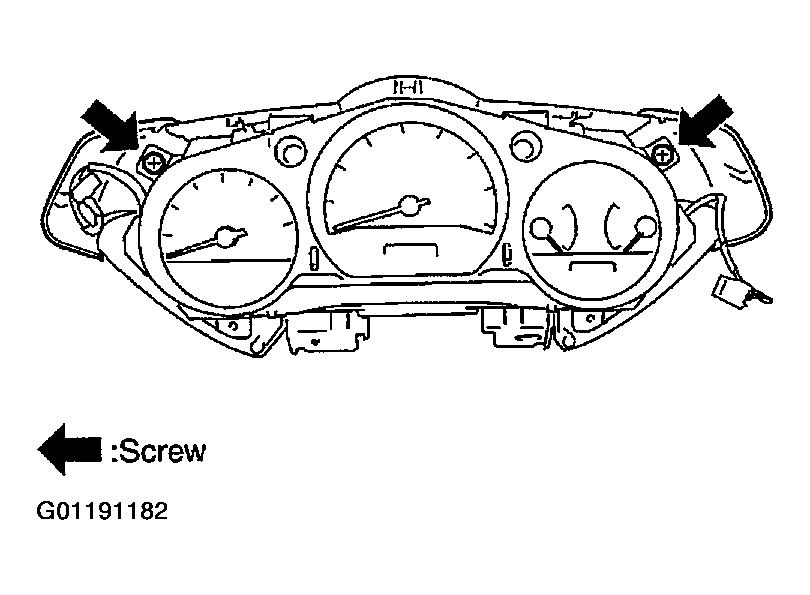

Fig 2: Locating Rear Cover Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws (3) and remove odo/trip meter and illumination control switch.

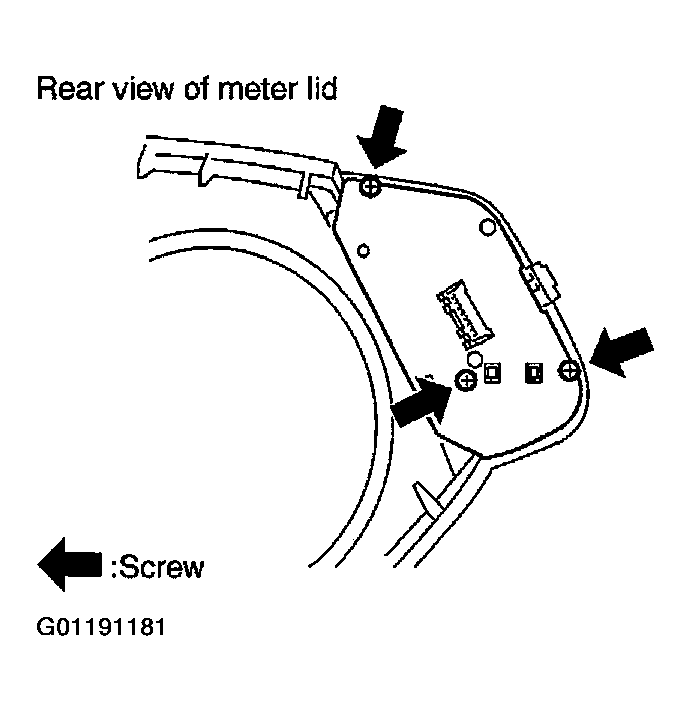

Fig 3: Locating Meter Lid Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws (2) and remove switch cover.

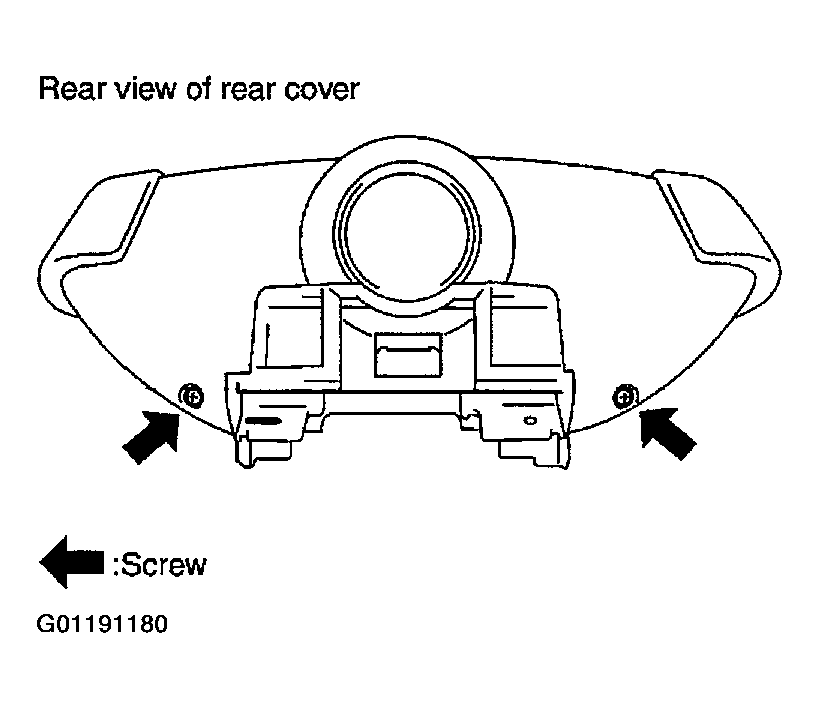

Fig 4: Locating Switch Cover Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove screws (2) and remove rear cover.

Fig 5: Locating Rear Cover Screws
Courtesy of NISSAN MOTOR CO., U.S.A.
Disengaged the tabs (2) to separate bracket.
Remove bulbs.
