Check Fuel Level Sensor Unit And Fuel Pump (Main)

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Check resistance between fuel level sensor unit and fuel pump (main) connector terminal 2 and 6.

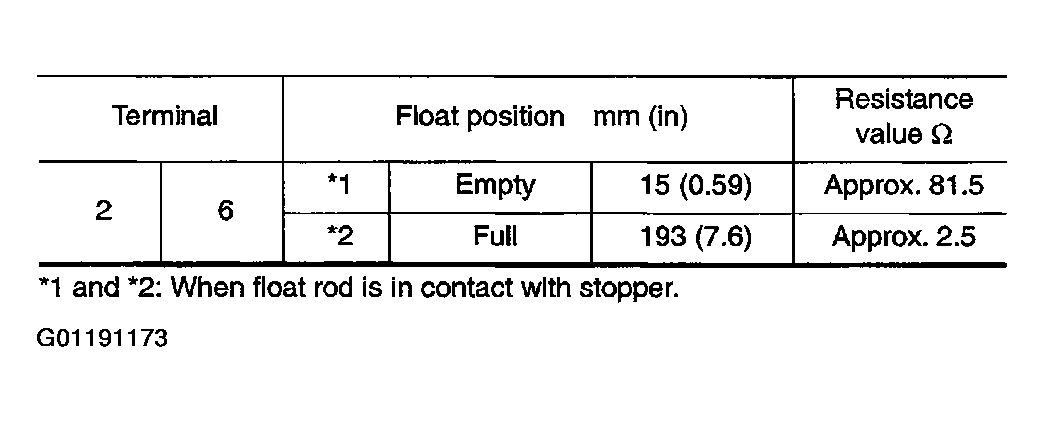

Fig 1: Terminal Resistance Value Based On Position
G01191173Courtesy of NISSAN MOTOR CO., U.S.A.

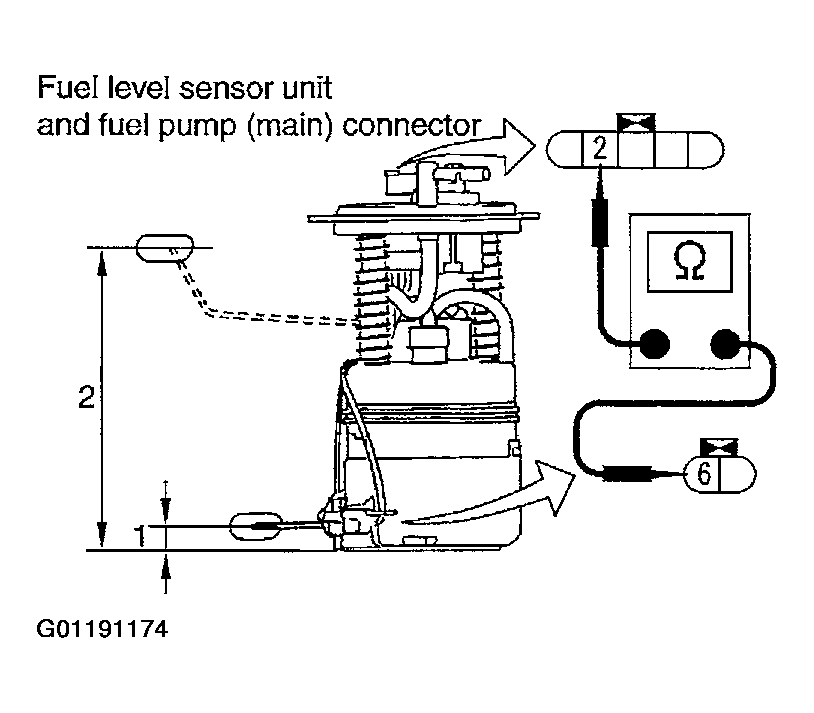

Fig 2: Checking Fuel Level Sensor Unit And Fuel Pump
G01191174Courtesy of NISSAN MOTOR CO., U.S.A.
