CONSULT-II Basic Operation Procedure

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, and turn ignition switch ON.

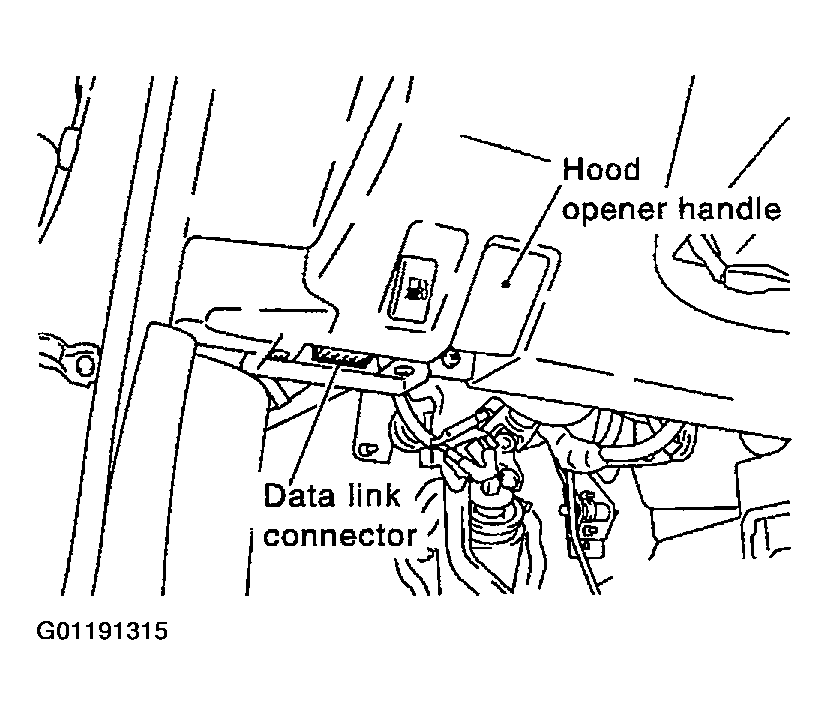

Fig 1: Identifying Hood Opener Handle And Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch START (NISSAN BASED VHCL).

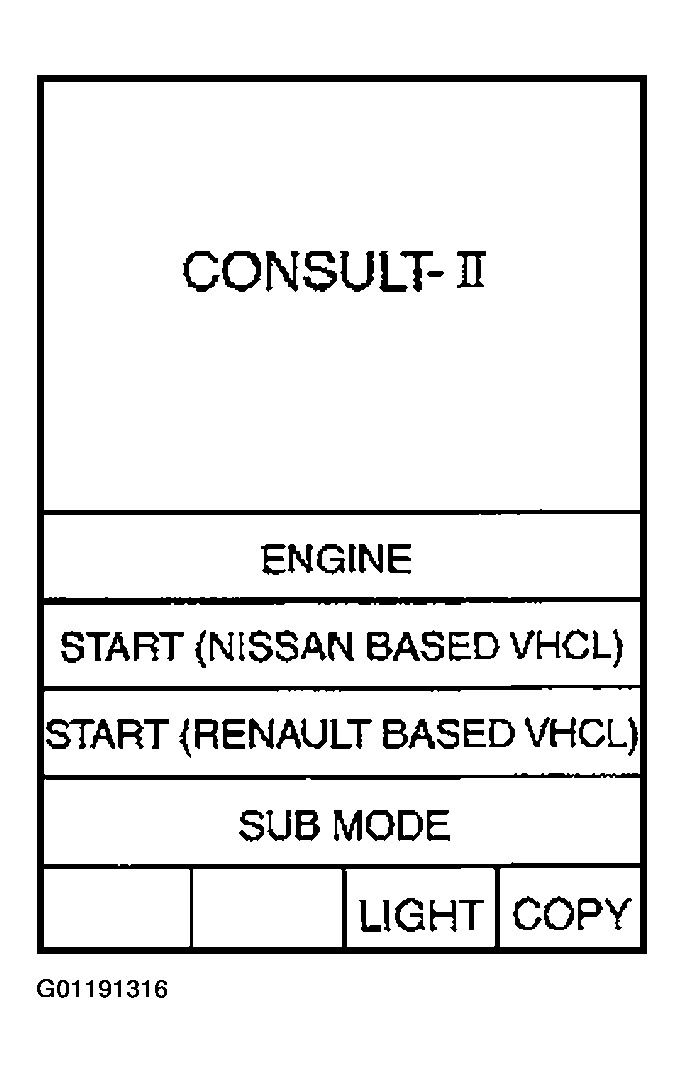

Fig 2: CONSULT-II Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch BCM on SELECT SYSTEM screen. If BCM is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

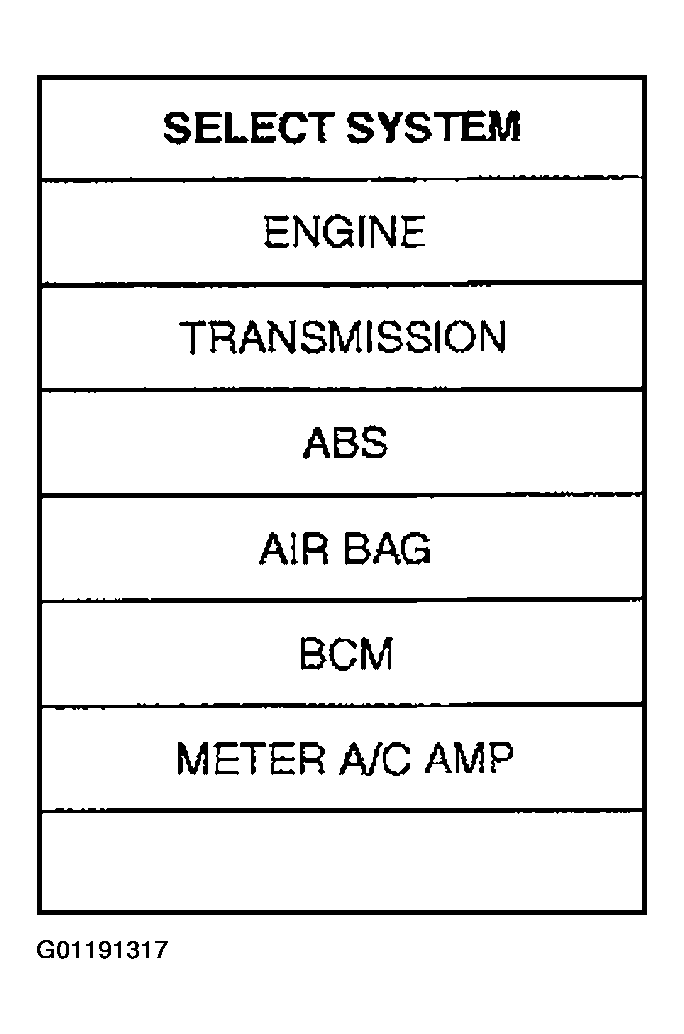

Fig 3: Select System Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch KEY WARN ALM, LIGHT WARN ALM, SEAT BELT ALM or BCM C/U.
Select DATA MONITOR ACTIVE TEST or SELF-DIAG RESULTS.

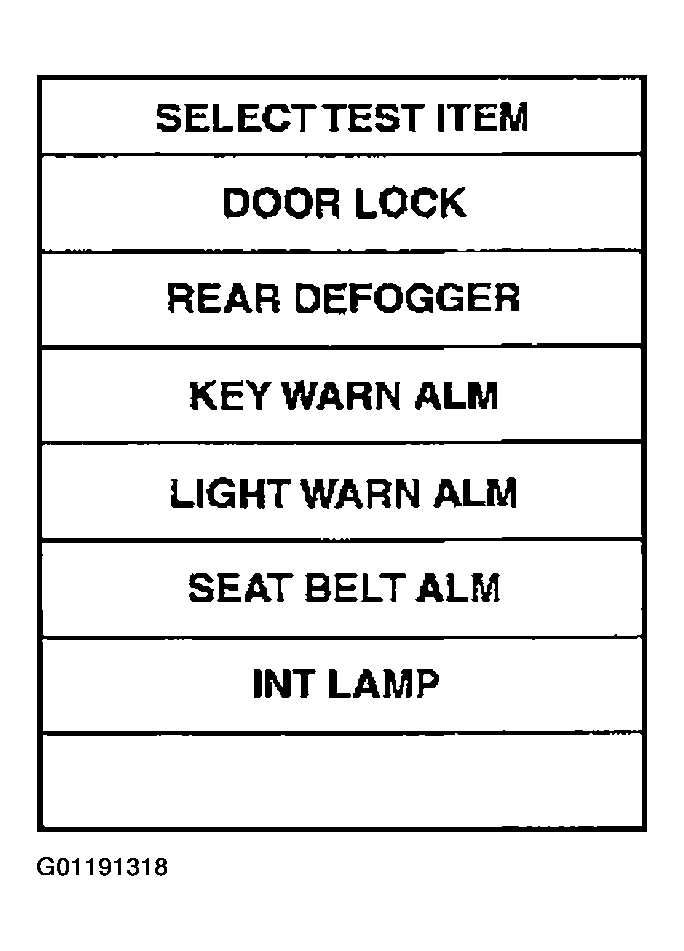

Fig 4: Select Test Item Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
