Operation Procedure

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Touch IGN WARN ALM, LIGHT WARN ALM or SEAT BELT ALM on SELECT TEST ITEM screen.
Touch DATA MONITOR on SELECT DIAG MODE screen.
Touch ALL SIGNALS or SELECTION FROM MENU on DATA MONITOR screen.

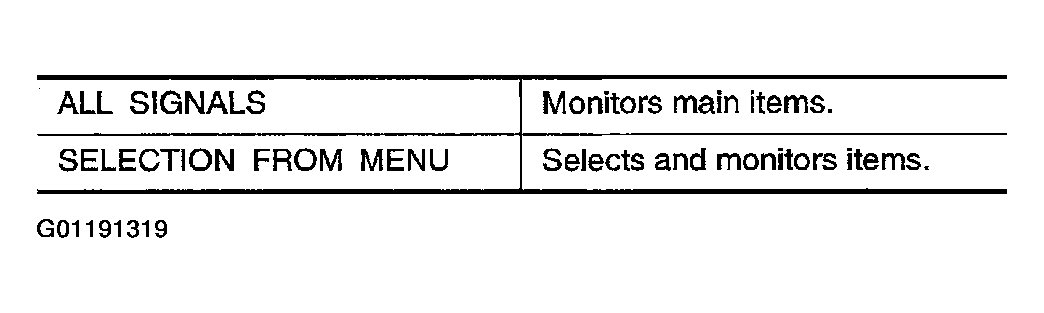

Fig 1: All Signals Monitor Main Items Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch START.
If SELECTION FROM MENU is selected, touch the desired monitor item. If ALL SIGNALS is selected, all items required to control are monitored.
During monitoring, touching RECORD can start recording the monitored item status.
