Data Monitor Procedure

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to data link connector.

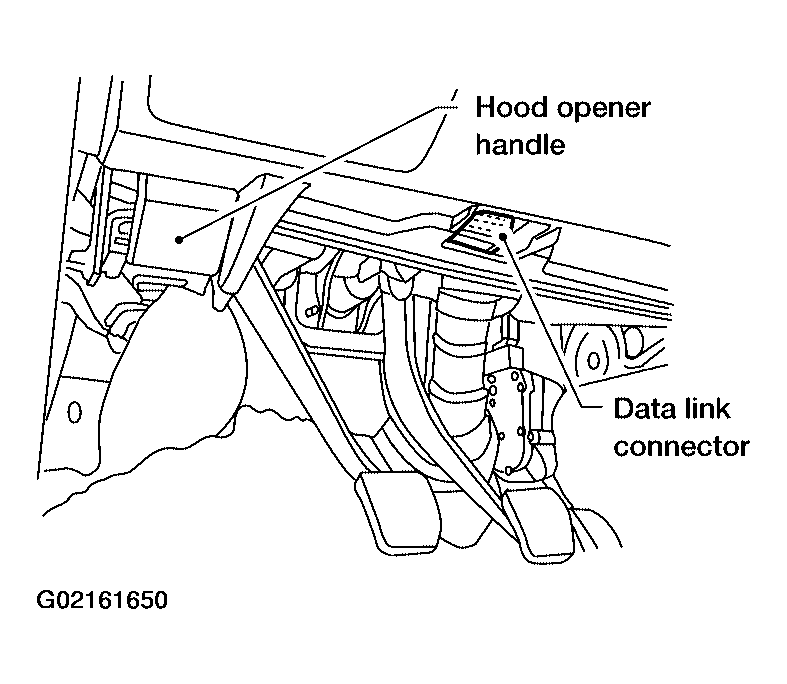

    Fig 1: Connecting CONSULT-II To Data Link Connector
    G02161650Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START" on CONSULT-II screen.

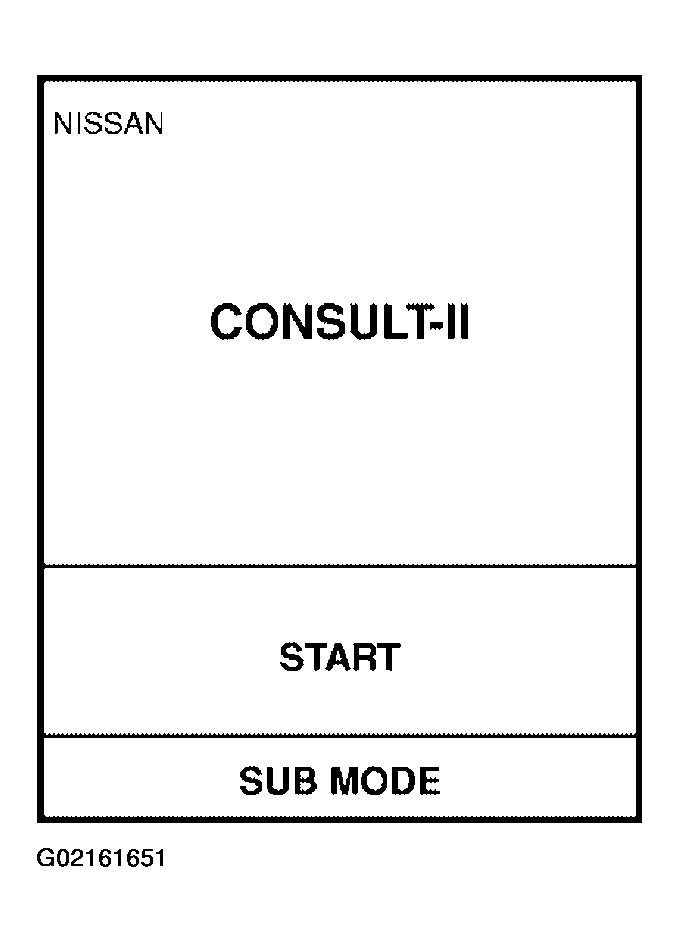

    Fig 2: Displaying CONSULT-II
    G02161651Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS".

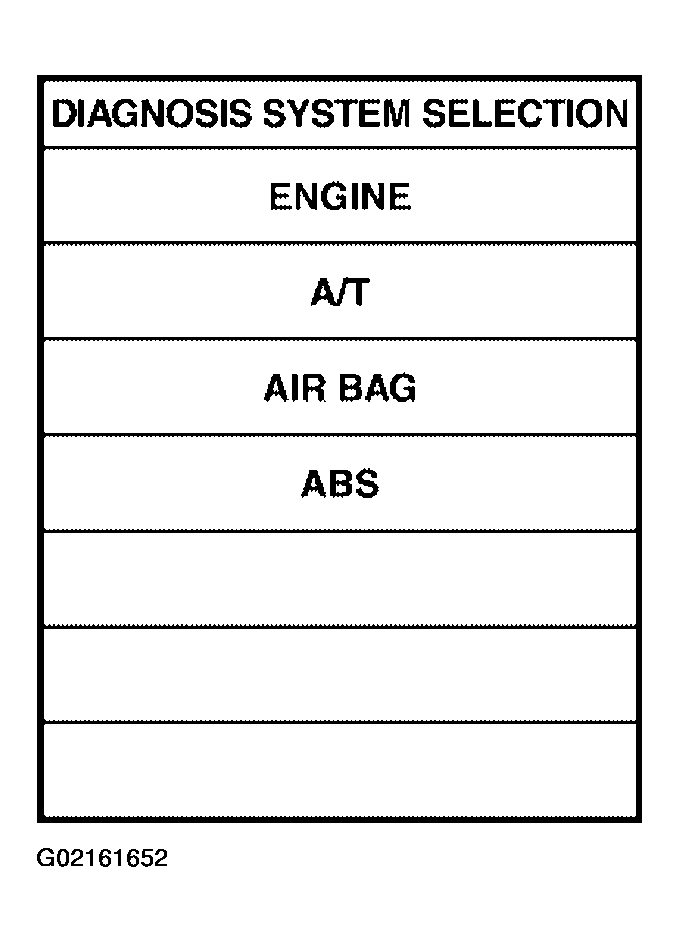

    Fig 3: Displaying Diagnosis System Selection
    G02161652Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".

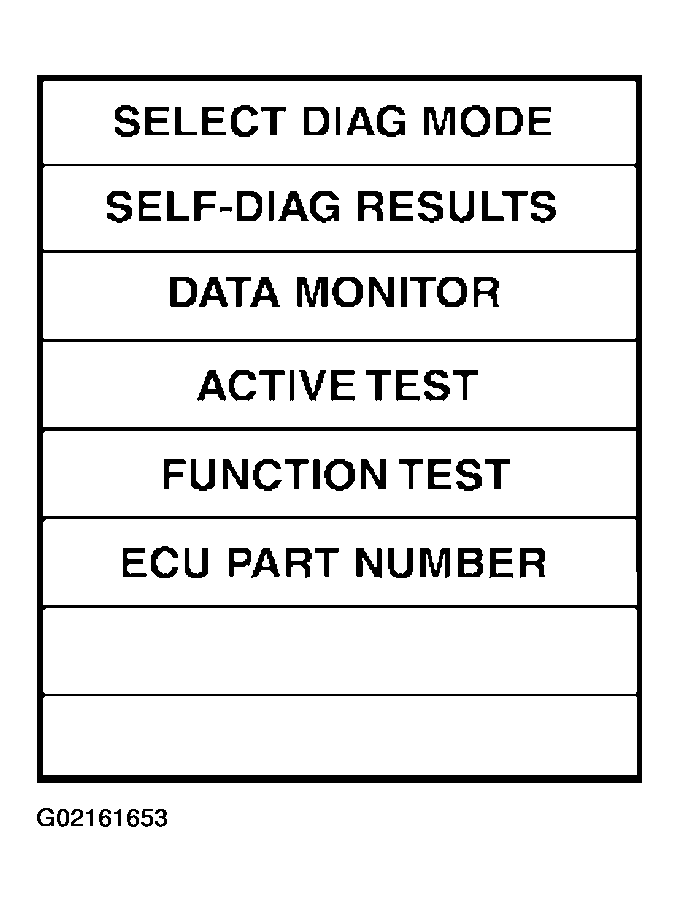

    Fig 4: Displaying Self-Diag Mode
    G02161653Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "SETTING" on "SELECT MONITOR ITEM" screen.
  8. Touch "LONG TIME" on "SET RECORDING COND" screen.
  9. Touch "START" on "SELECT MONITOR ITEM".
