Section 928 (Headlight Dimmer Switch): Replacement

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE STEERING COLUMN COVER (See OVERHAUL )
REMOVE HEADLAMP DIMMER SWITCH ASSY
1. Disconnect the connector.
2. Using a screwdriver, release the claw and pull out the headlight dimmer switch assy.
NOTE: Pressing the claw hard breaks the claw.

HINT:

Tape the screwdriver tip before use.

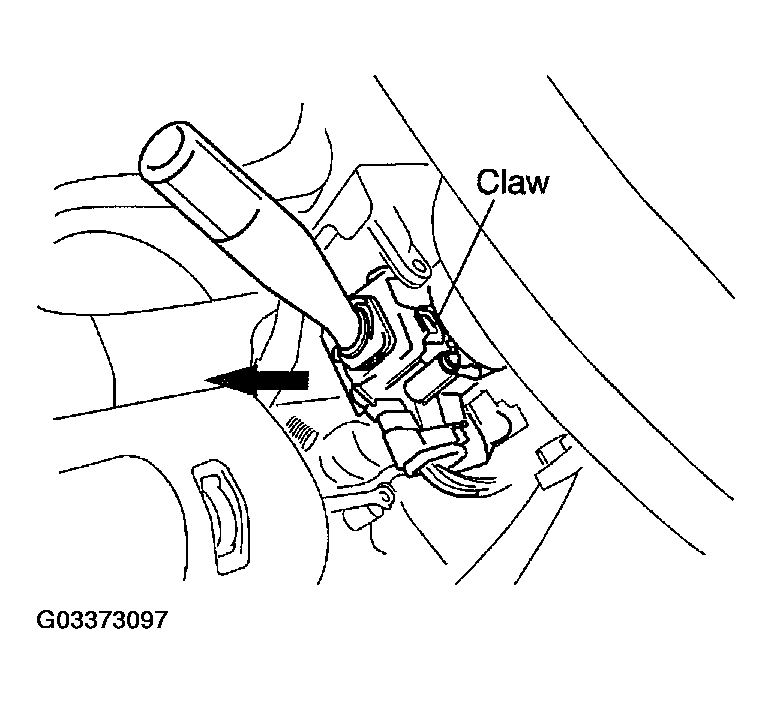

Fig 1: Releasing Claw And Pulling Out Headlight Dimmer Switch Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
