Band Servo Piston Assembly: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Install D-rings to band servo piston retainer.
    • Apply ATF to D-rings.
    • Pay attention to position of each D-ring.

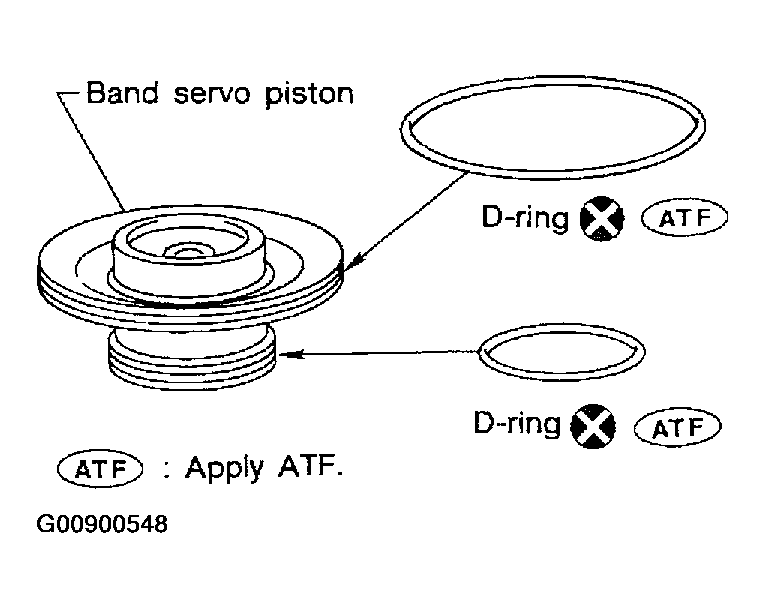

    Fig 1: Installing D-Rings To Band Servo Piston Retainer
    G00900548Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install band servo piston stem, band servo thrust washer, OD servo return spring and spring retainer to band servo piston.

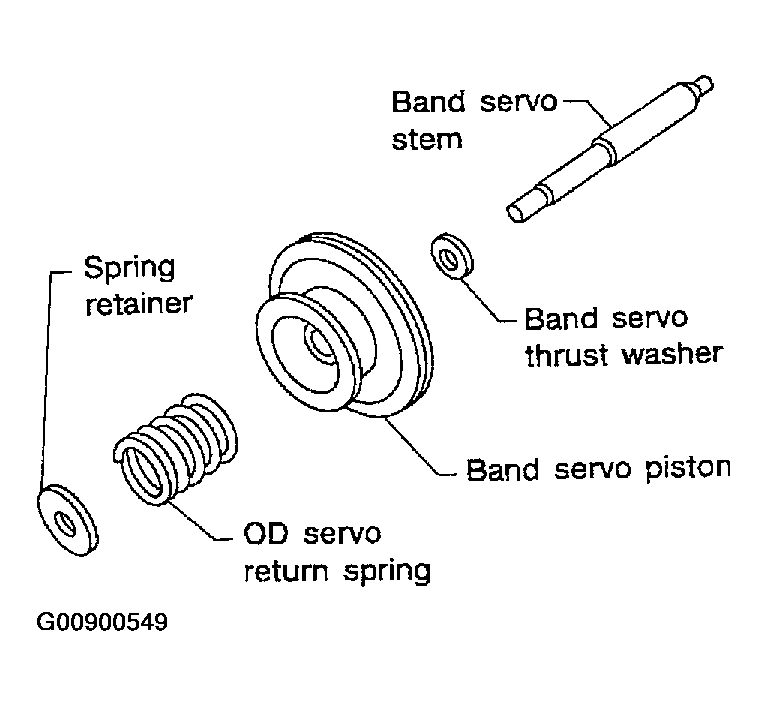

    Fig 2: Installing Band Servo Piston Stem, Band Servo Thrust Washer, OD Servo Return Spring And Spring Retainer To Band Servo Piston
    G00900549Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place piston stem end on a wooden block. While pushing servo piston spring retainer down, install E-ring.

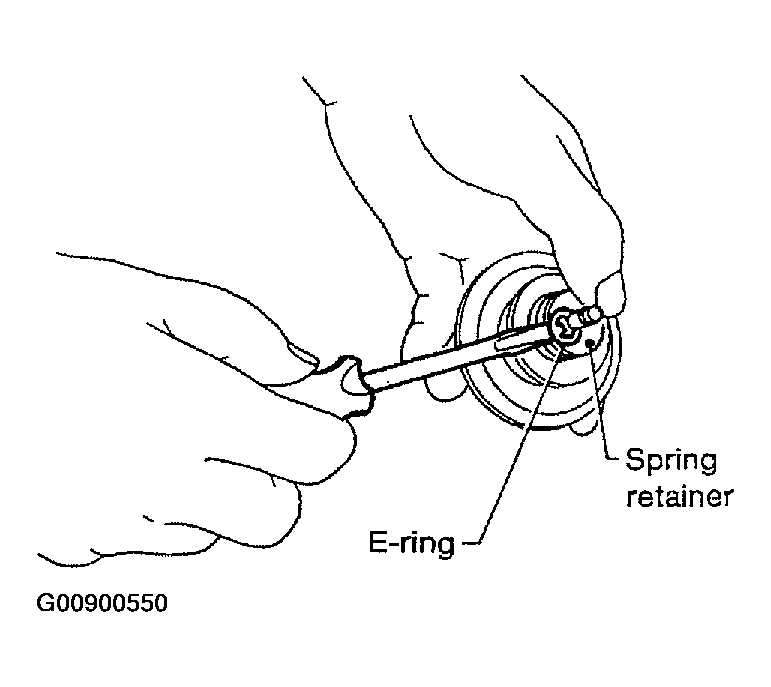

    Fig 3: Installing E-Ring
    G00900550Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install O-rings to servo piston retainer.
    • Apply ATF to O-rings.
    • Pay attention to the positions of the O-rings.

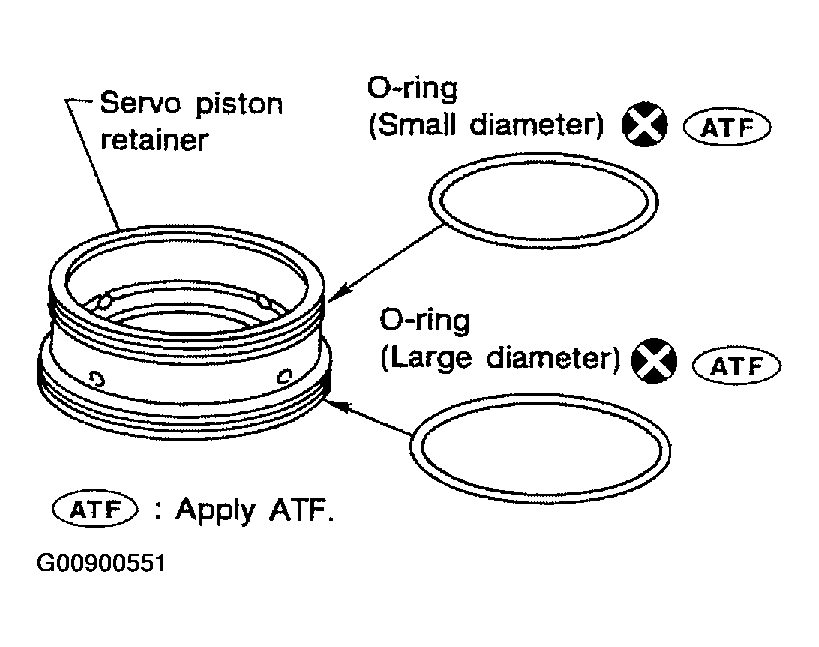

    Fig 4: Installing O-Rings To Servo Piston Retainer
    G00900551Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install band servo piston assembly to servo piston retainer by pushing it inward.

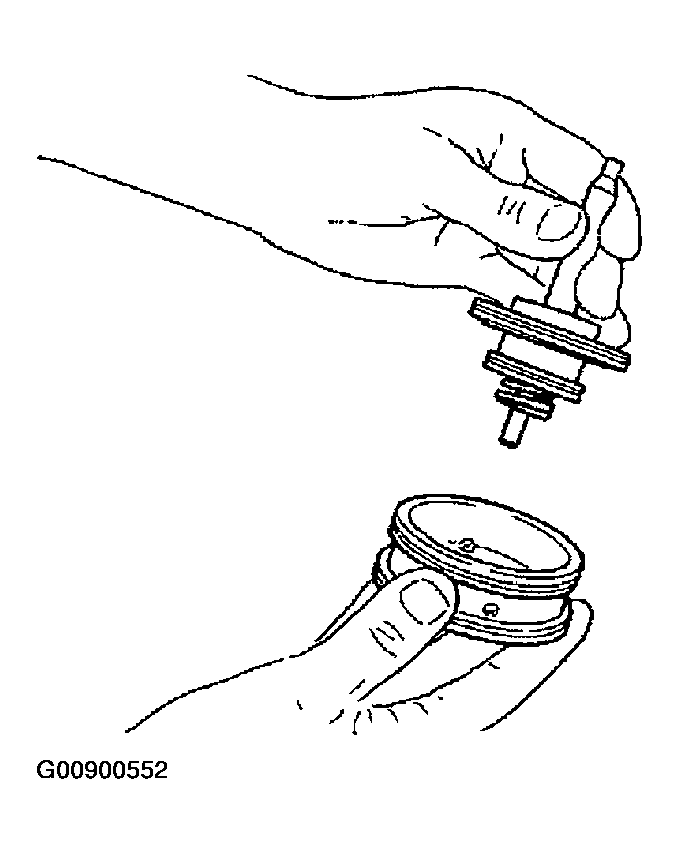

    Fig 5: Installing Band Servo Piston Assembly To Servo Piston Retainer
    G00900552Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install D-ring to OD servo piston.
    • Apply ATF to D-ring.

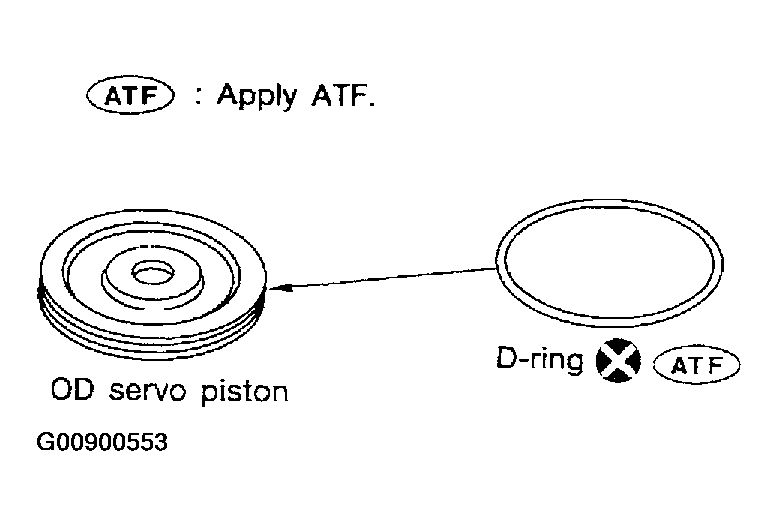

    Fig 6: Installing D-Ring To OD Servo Piston
    G00900553Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Install O-rings to OD servo piston retainer.
    • Apply ATF to O-rings.
    • Pay attention to the positions of the O-rings.

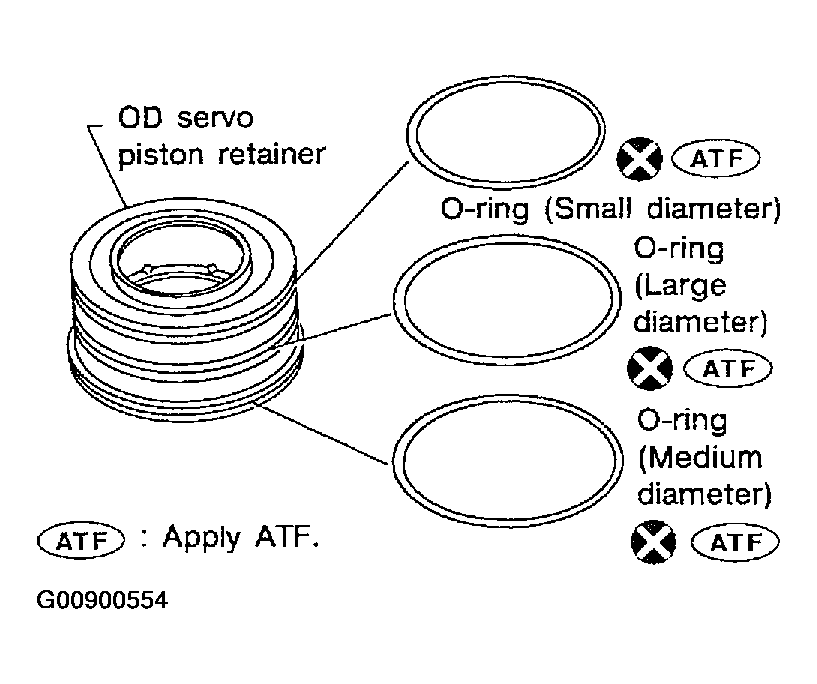

    Fig 7: Installing O-Rings To OD Servo Piston Retainer
    G00900554Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install OD servo piston to OD servo piston retainer.

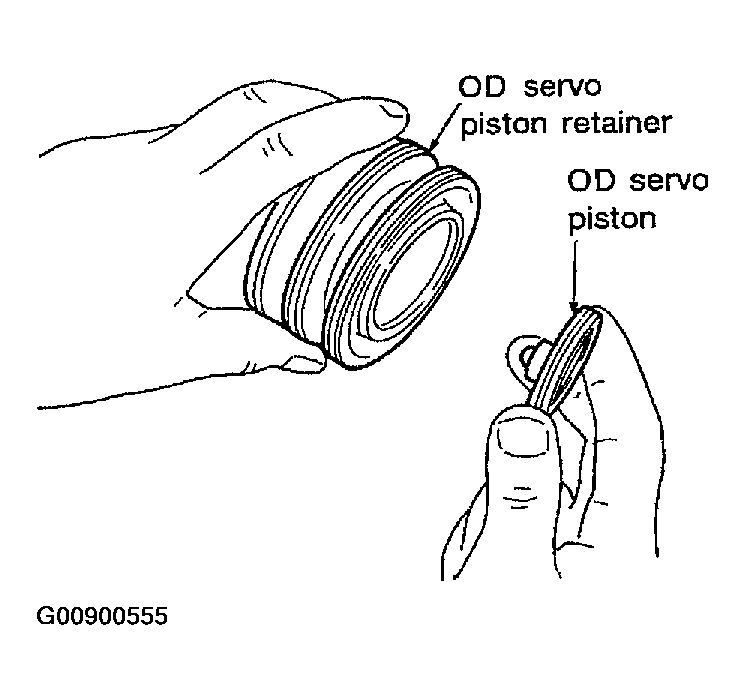

    Fig 8: Installing OD Servo Piston To OD Servo Piston Retainer
    G00900555Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Install band servo piston assembly and 2nd servo return spring to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case.

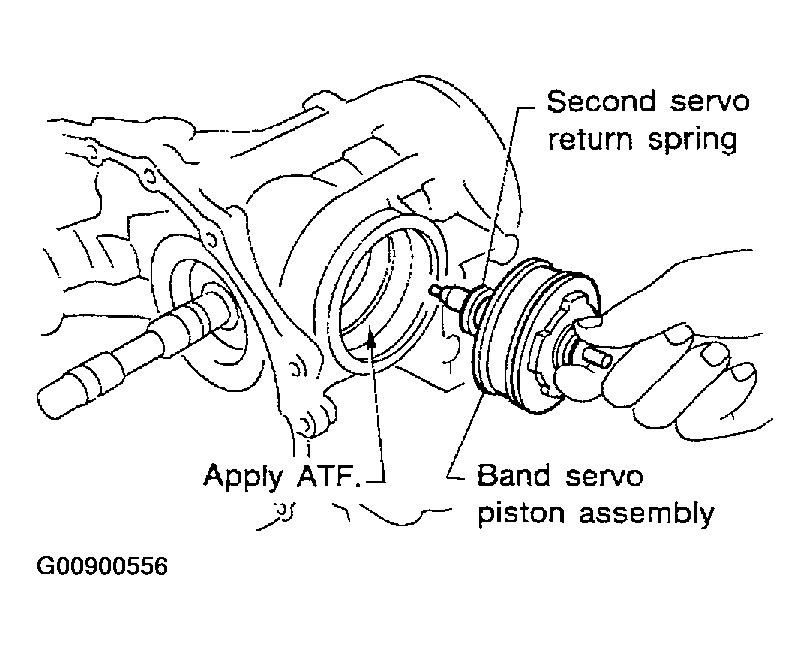

    Fig 9: Installing Band Servo Piston Assembly And 2nd Servo Return Spring To Transmission Case
    G00900556Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install OD servo piston assembly to transmission case.
    • Apply ATF to O-ring of band servo piston and transmission case.

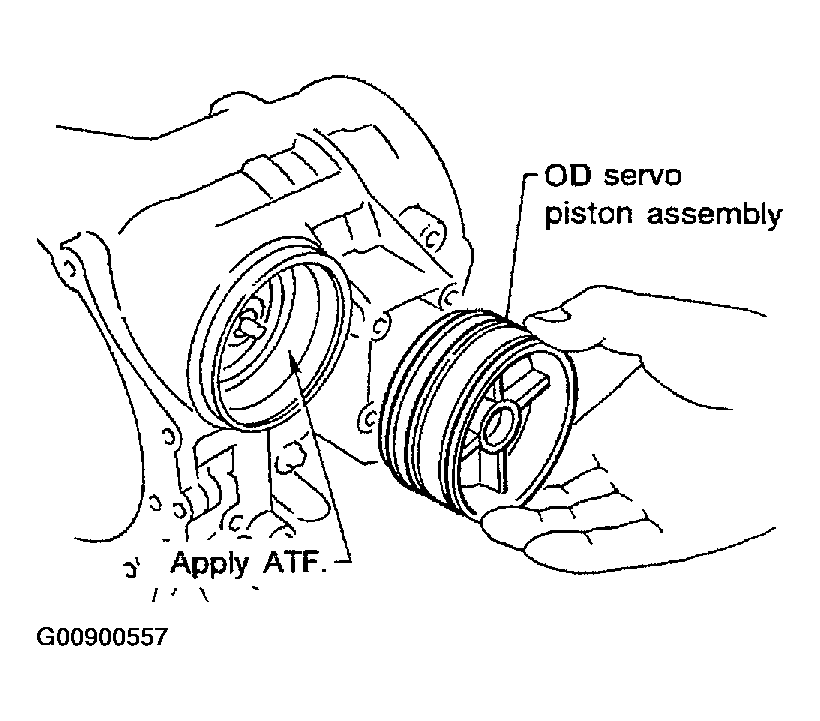

    Fig 10: Installing OD Servo Piston Assembly To Transmission Case
    G00900557Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install band servo piston snap ring to transmission case.

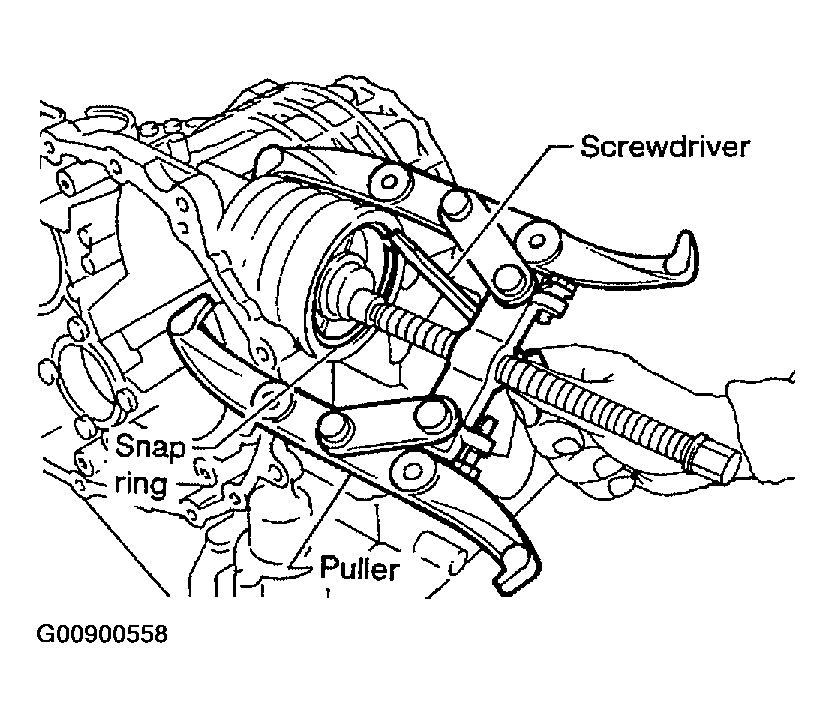

    Fig 11: Installing Band Servo Piston Snap Ring To Transmission Case
    G00900558Courtesy of NISSAN MOTOR CO., U.S.A.
