Band Servo Piston Assembly: Components

WARNING: This page is about a different variant/trim than selected.

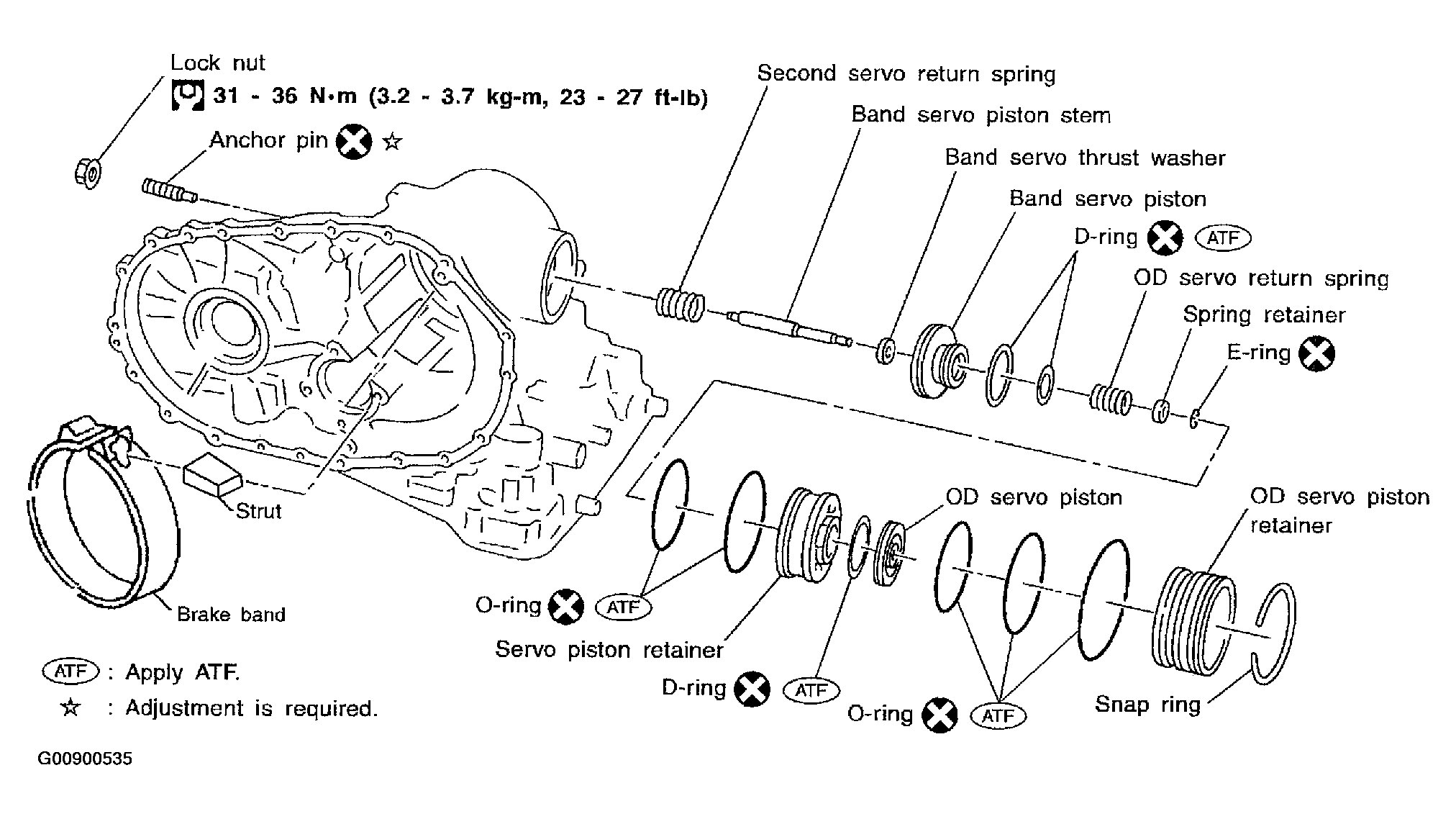

Fig 1: Identifying Band Servo Piston Assembly Components And Tightening Torques
G00900535Courtesy of NISSAN MOTOR CO., U.S.A.
