Control Valve Upper Body: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove valves at retainer plates.
- Do not use a magnetic "hand".

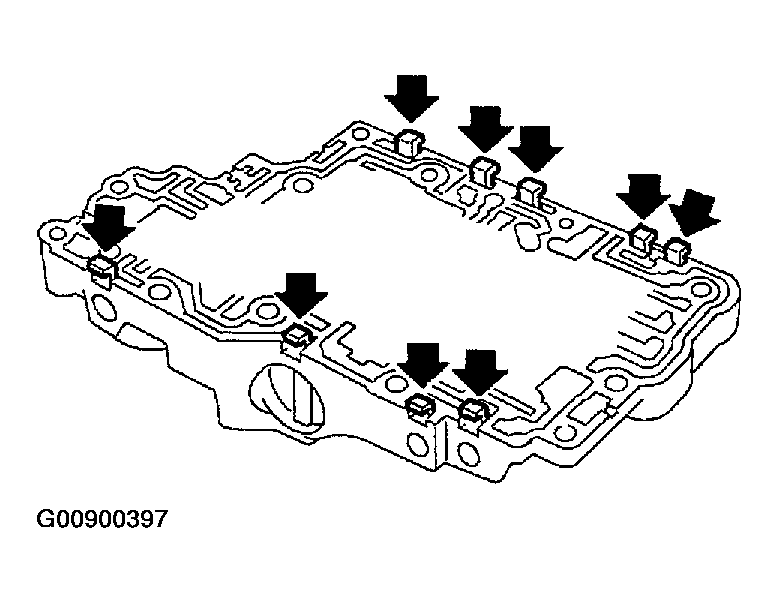

Fig 1: Removing Retainer Plate Valves
Courtesy of NISSAN MOTOR CO., U.S.A.

Use a screwdriver to remove retainer plates.

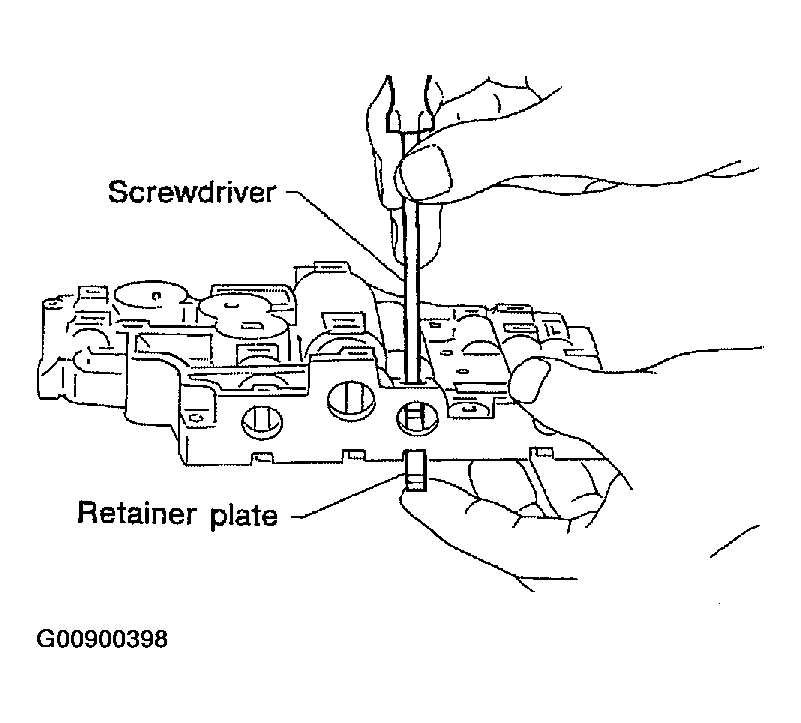

Fig 2: Removing Retainer Plates (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove retainer plates while holding spring, plugs or sleeves.

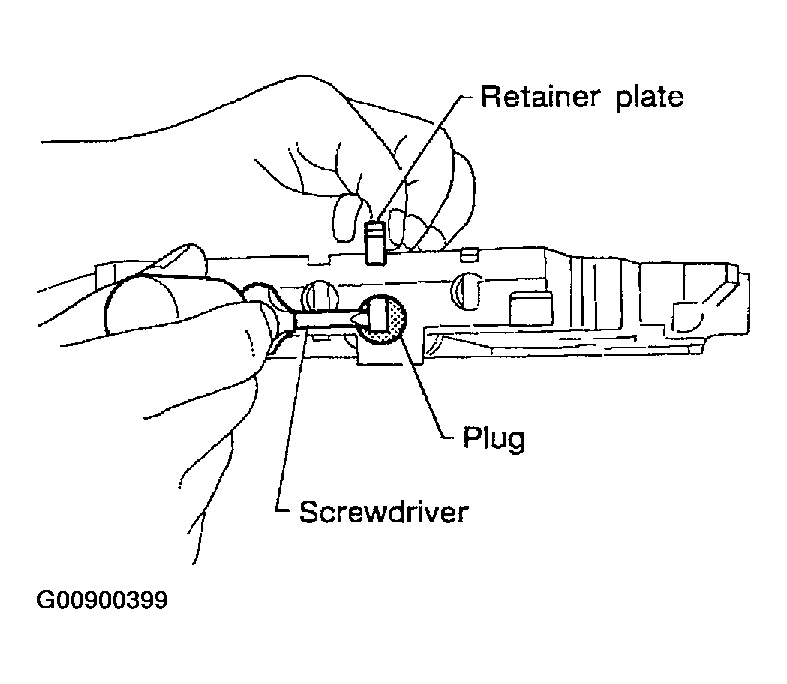

Fig 3: Removing Retainer Plates (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
- Remove plugs slowly to prevent internal parts from jumping out.
Place mating surface of valve body face down, and remove internal parts.
- If a valve is hard to remove, place valve body face down and lightly tap it with a soft hammer.
- Be careful not to drop or damage valves and sleeves.

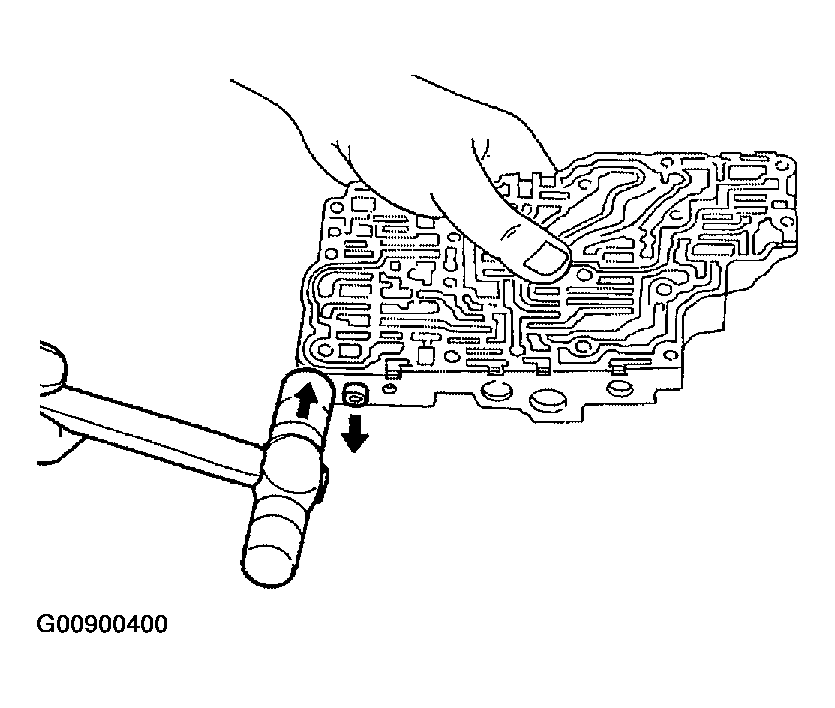

Fig 4: Tapping Control Valve Upper Body
Courtesy of NISSAN MOTOR CO., U.S.A.
