Overrun Clutch Operating Conditions
WARNING:
This page is about a different variant/trim than selected.

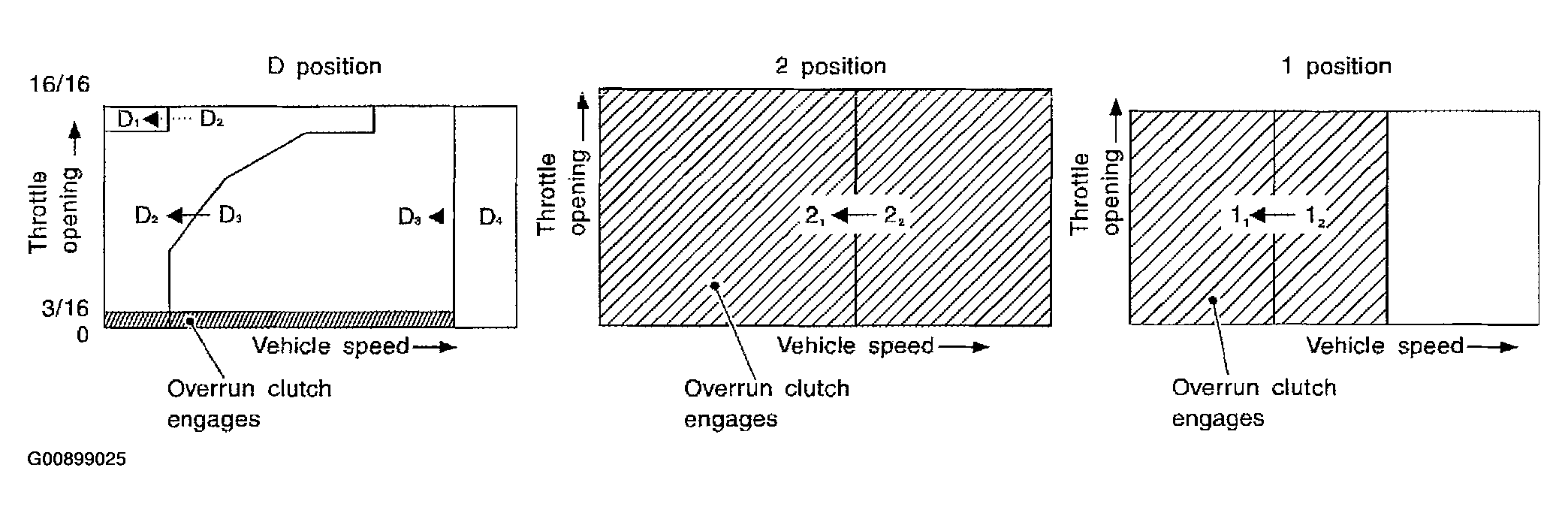

Fig 1: Identifying Overrun Clutch Operating Conditions
Courtesy of NISSAN MOTOR CO., U.S.A.

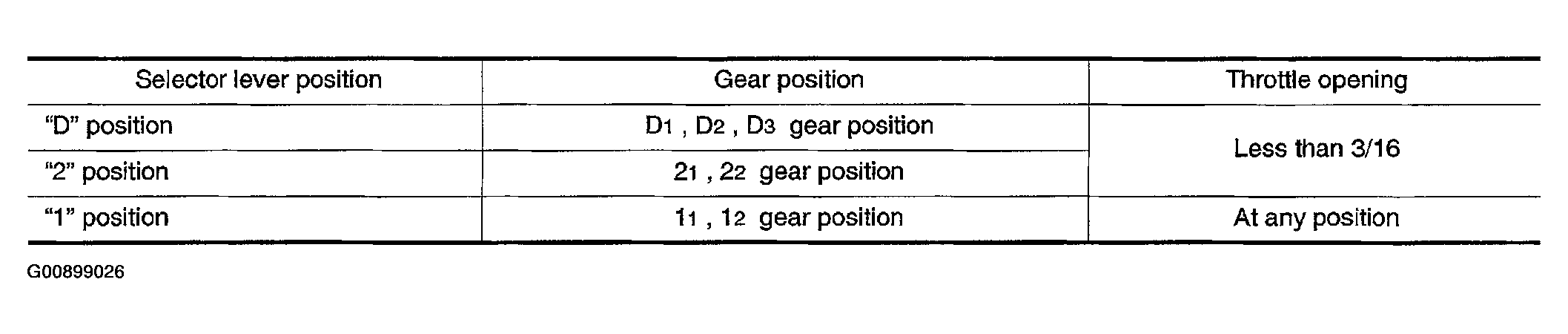

Fig 2: Overrun Clutch Operating Conditions Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
