Function Of Clutch And Brake

WARNING: This page is about a different variant/trim than selected.

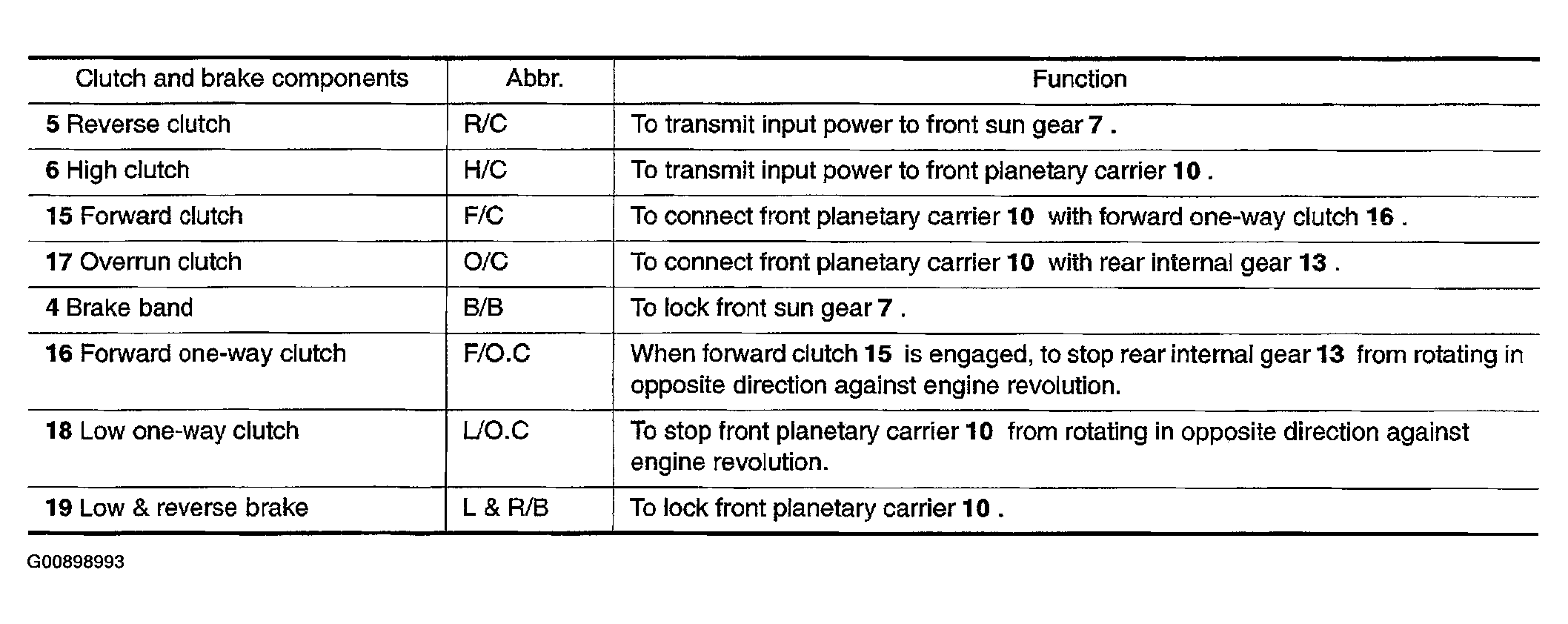

Fig 1: Clutch And Brake Function Chart
G00898993Courtesy of NISSAN MOTOR CO., U.S.A.
