Terminals and Reference Value for Display Control Unit

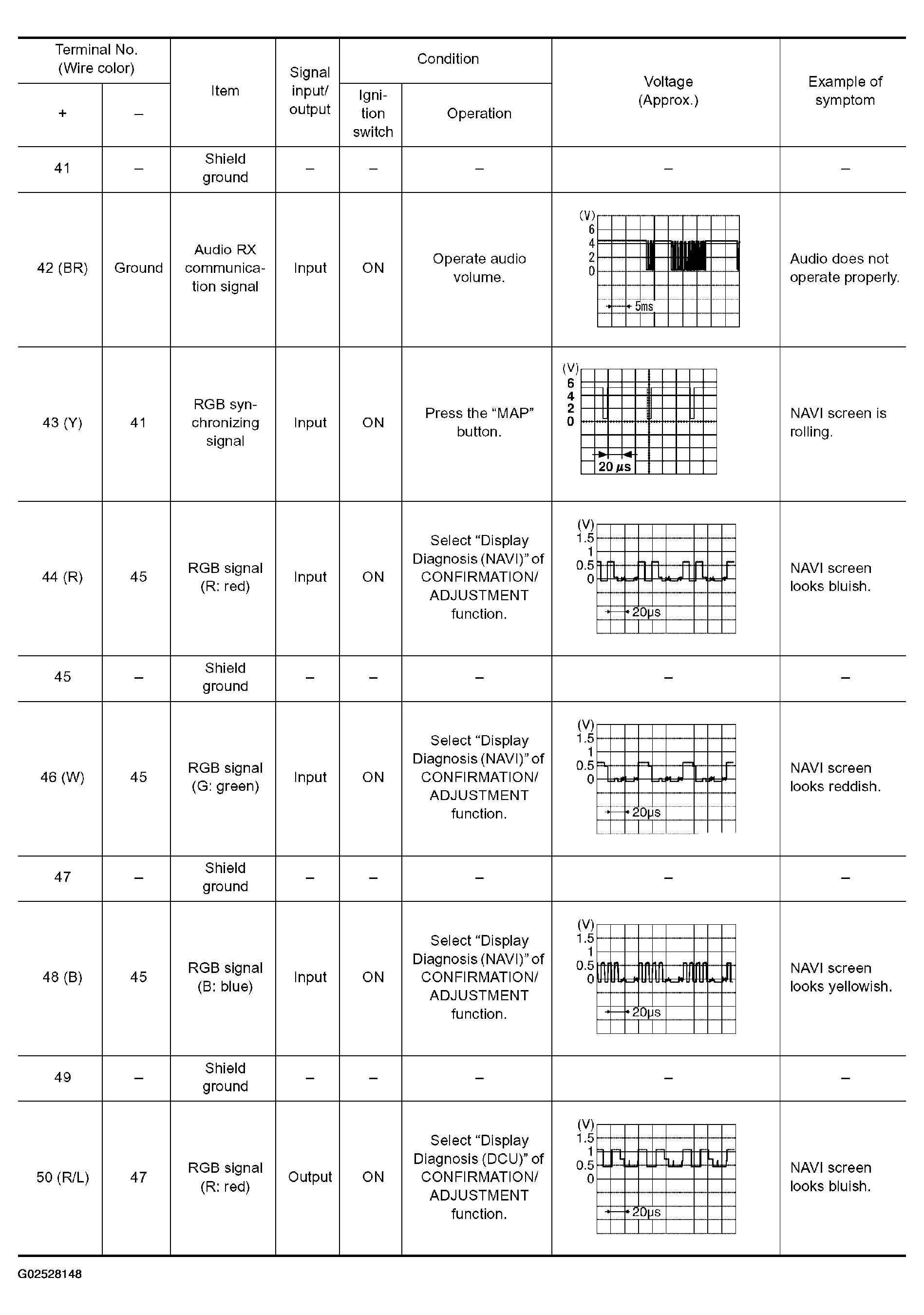

Fig 1: Terminals And Display Control Unit Reference Value Chart (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

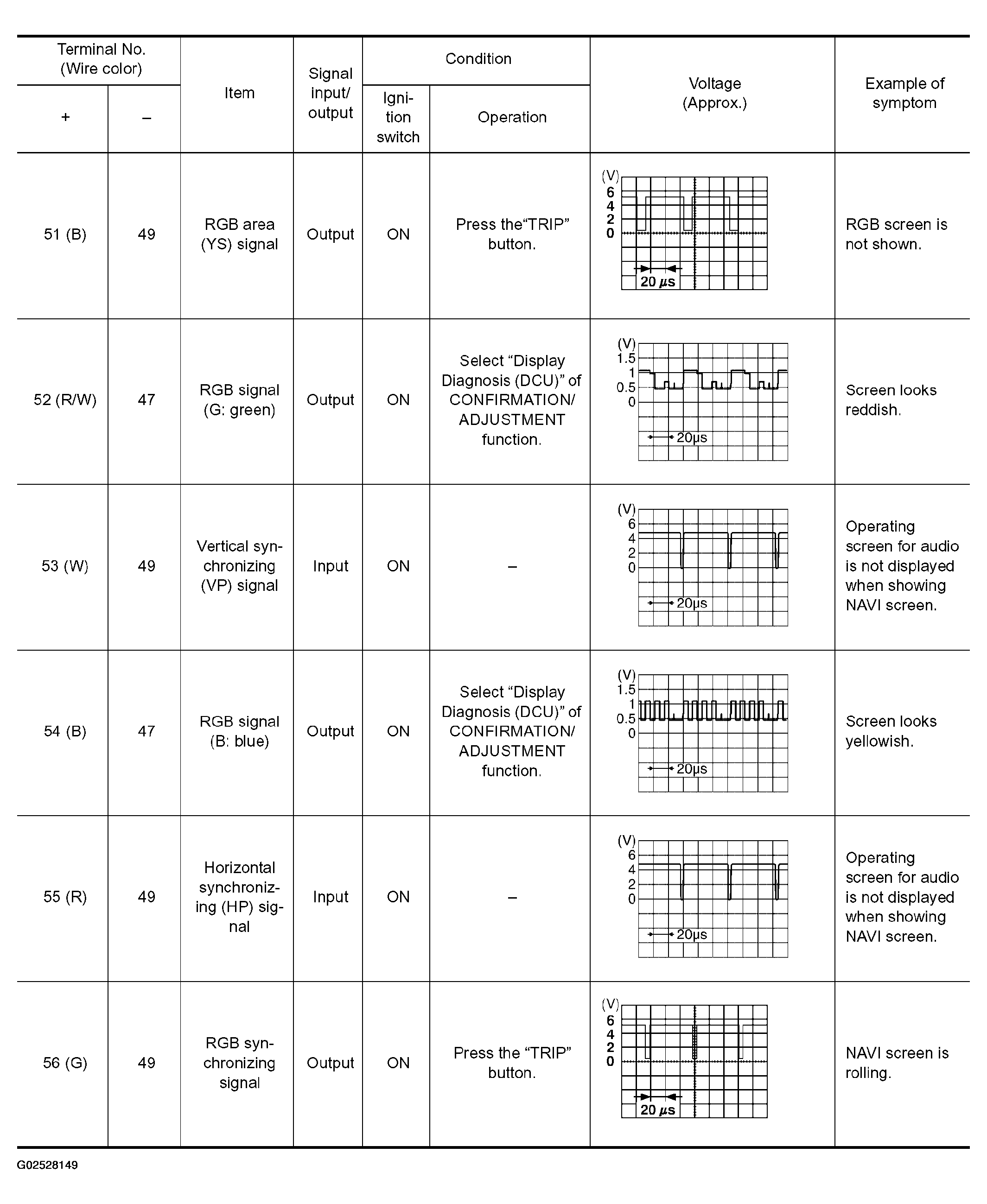

Fig 2: Terminals And Display Control Unit Reference Value Chart (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

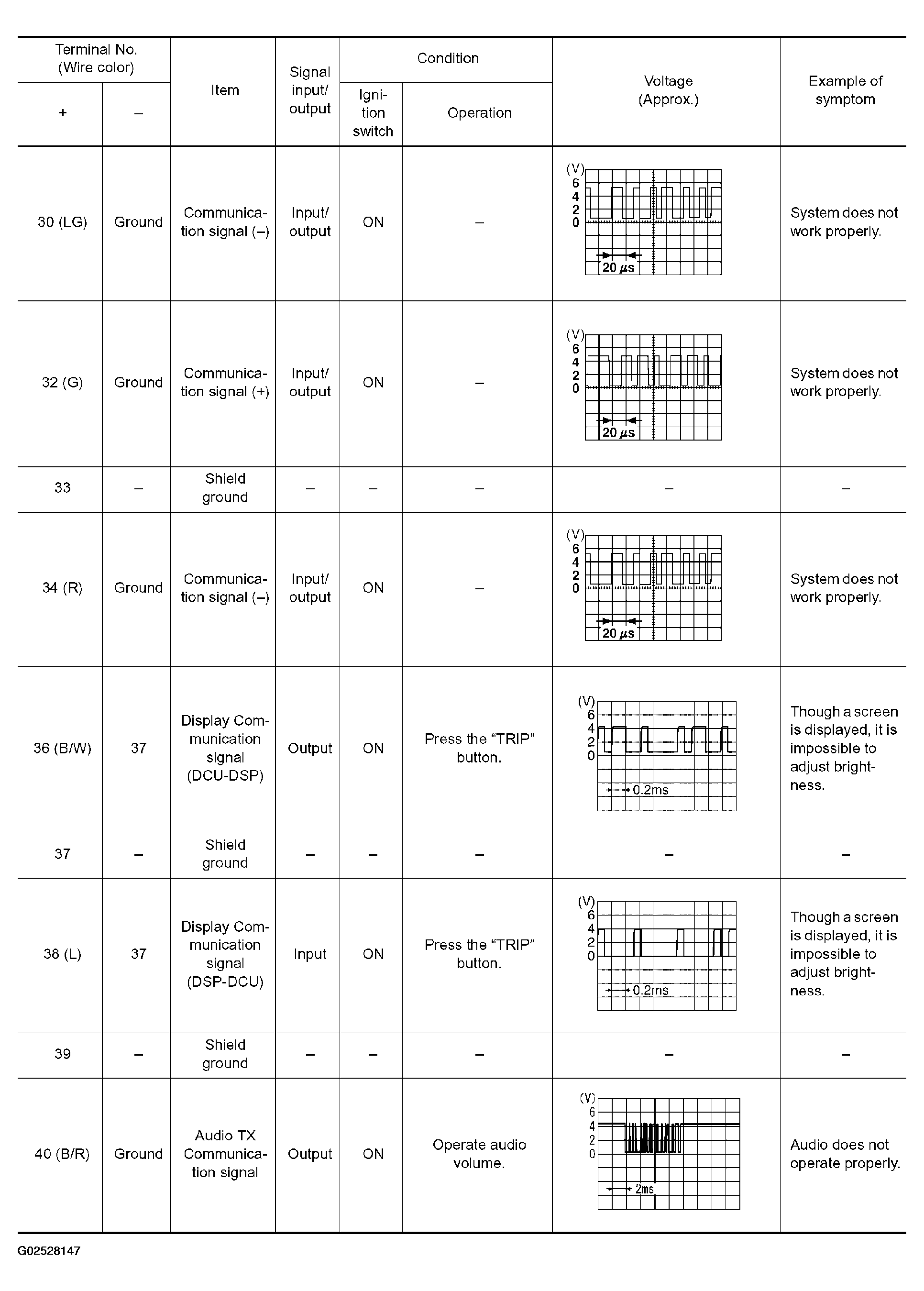

Fig 3: Terminals And Display Control Unit Reference Value Chart (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

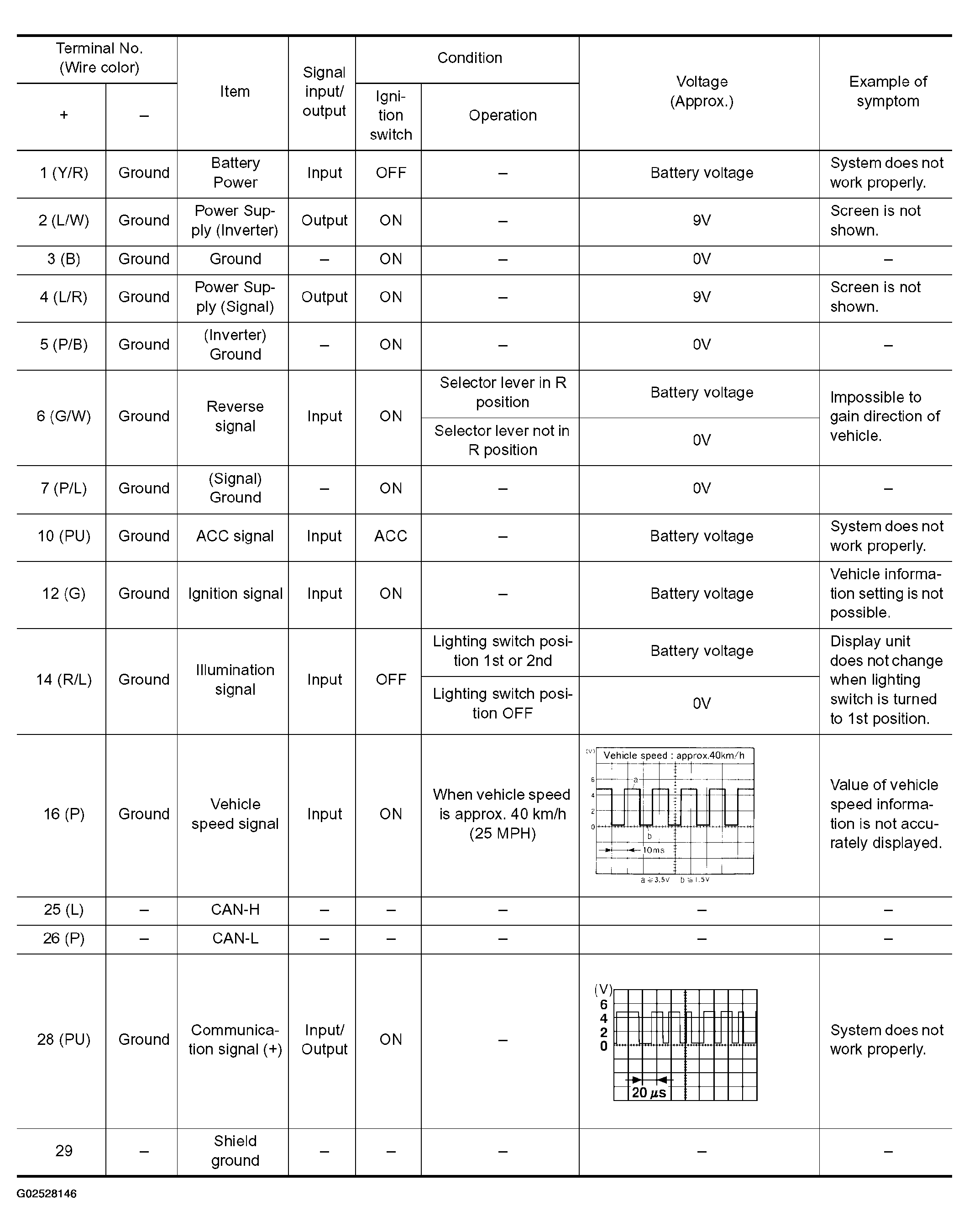

Fig 4: Terminals And Display Control Unit Reference Value Chart (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
