All Signals, Main Signals, Select From Menu: Notes

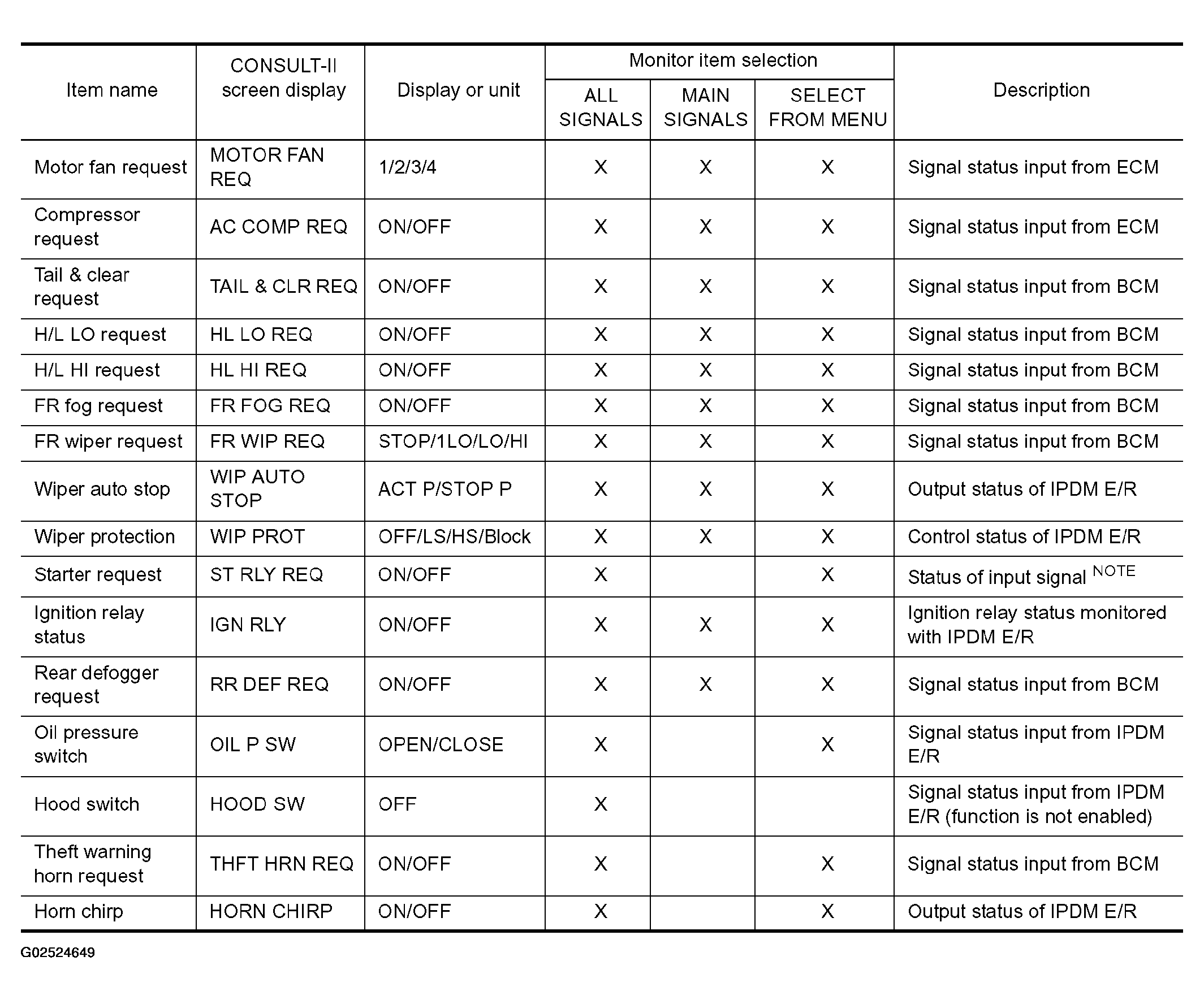

Fig 1: All Signals And Main Signals Menu Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Perform monitoring of IPDM E/R data with the ignition switch ON. When the ignition switch is in ACC position, display may not be correct.
