Method A

  1. Slide the harness protector off the ignition coil No.1 to clear the wires.
  2. Attach timing light to the wires.
  3. Check ignition timing.

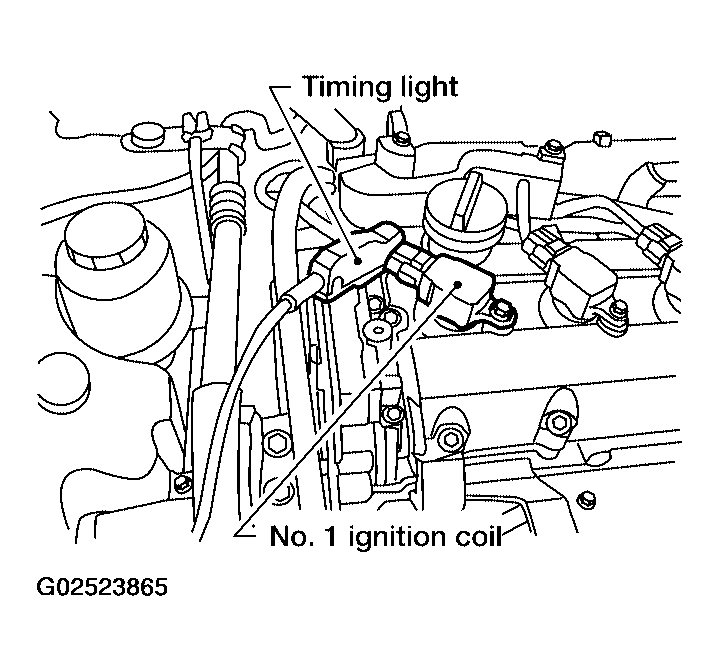

    Fig 1: Attaching Timing Light To Wires
    G02523865Courtesy of NISSAN MOTOR CO., U.S.A.
