Write Configuration Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

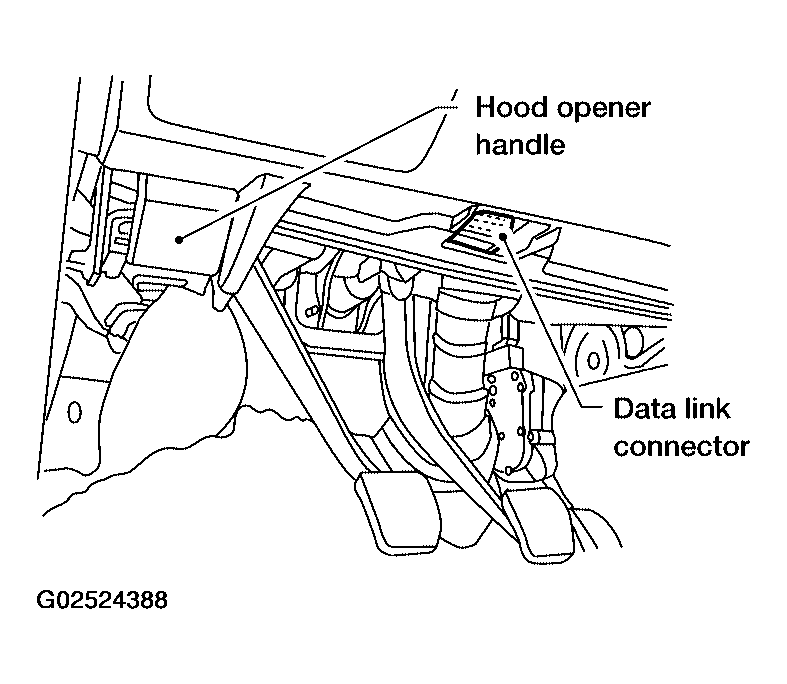

    Fig 1: Identifying Data Link Connector Location
    G02524388Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

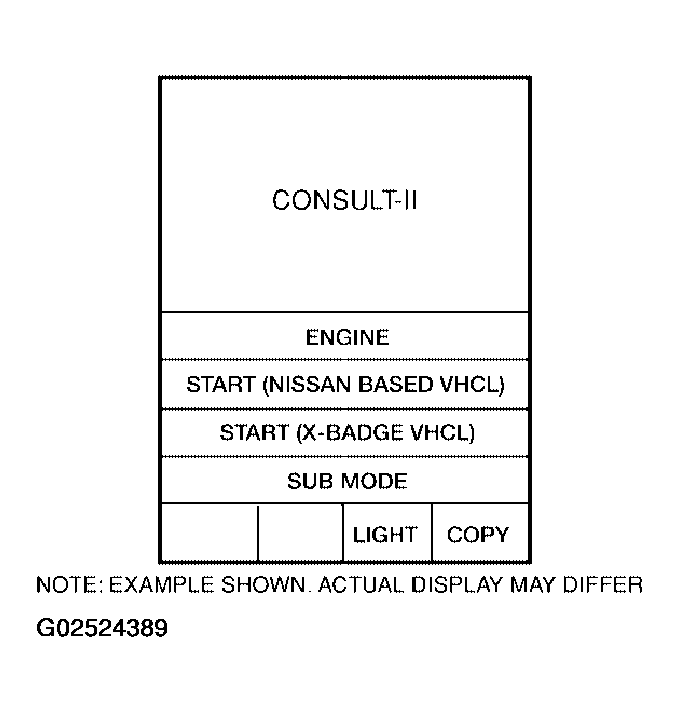

    Fig 2: Identifying Consult - II Display
    G02524389Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to LAN SYSTEM to check data link connector (DLC) circuit.

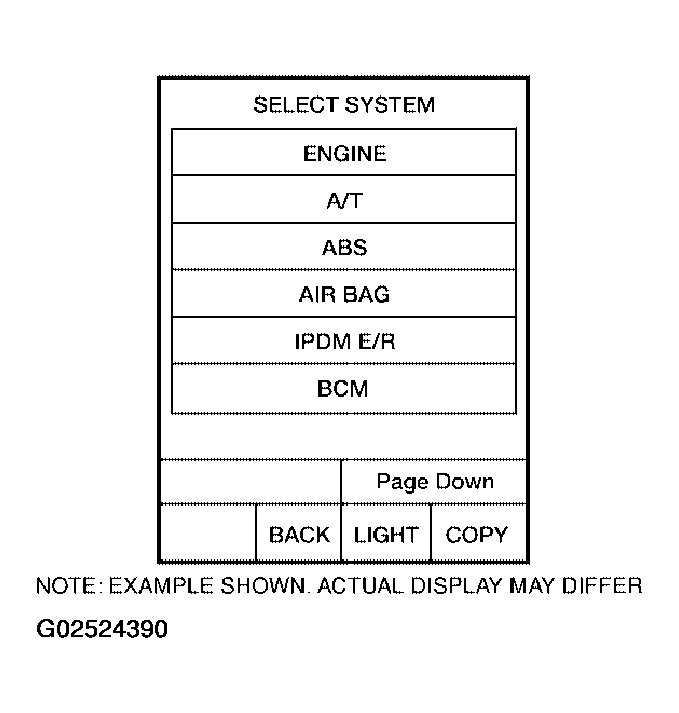

    Fig 3: Identifying Select System Display
    G02524390Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.

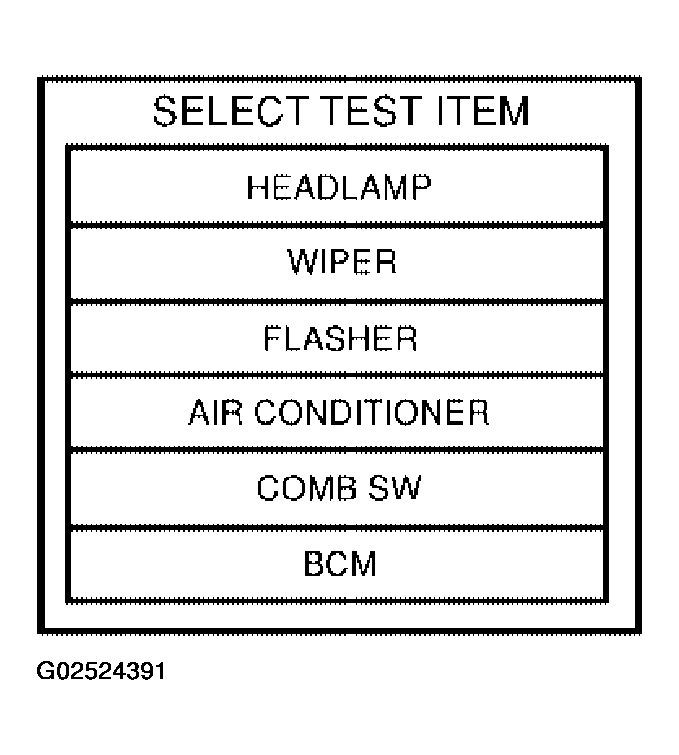

    Fig 4: Identifying Select Test Item Display
    G02524391Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

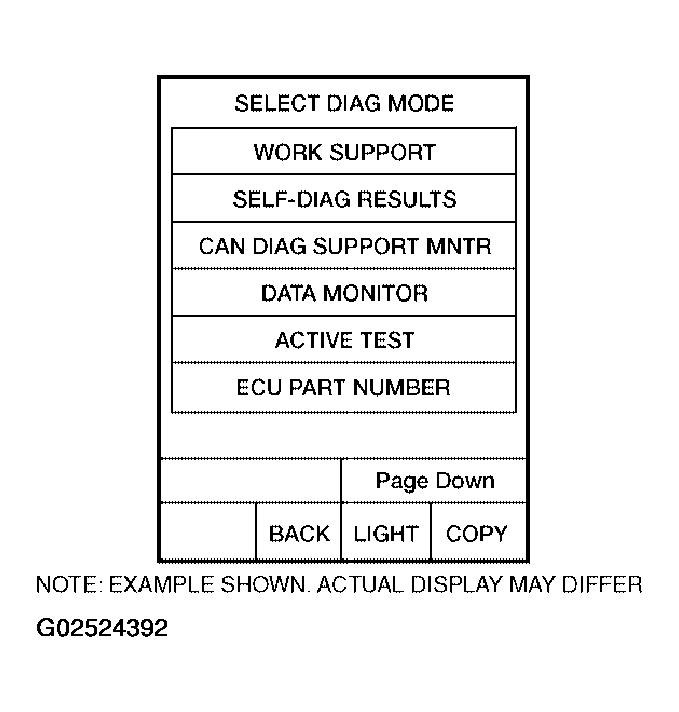

    Fig 5: Identifying Select Diag Mode Display
    G02524392Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "L31 (SPEC1)" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to "MODEL VARIATION ".

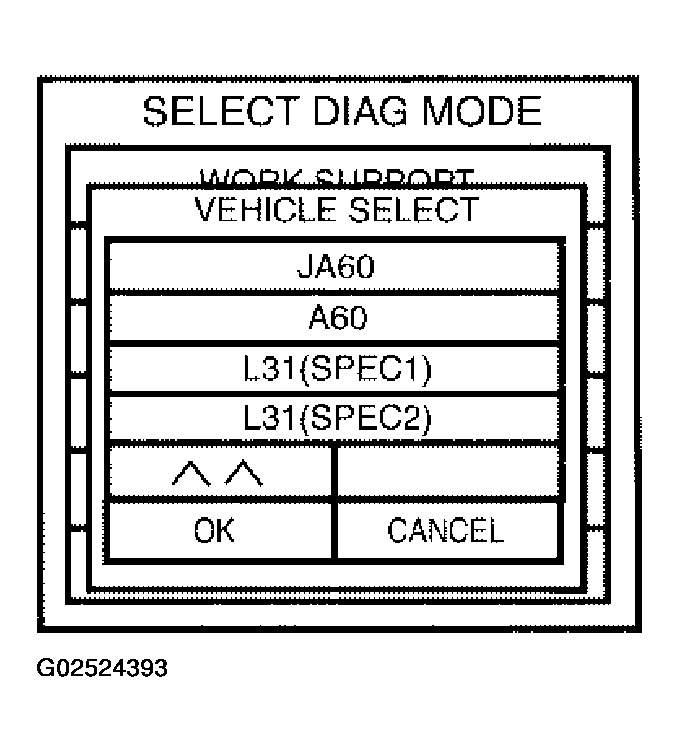

    Fig 6: Identifying Vehicle Select Display
    G02524393Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "WRITE CONFIGURATION" on "CONFIGURATION" screen.

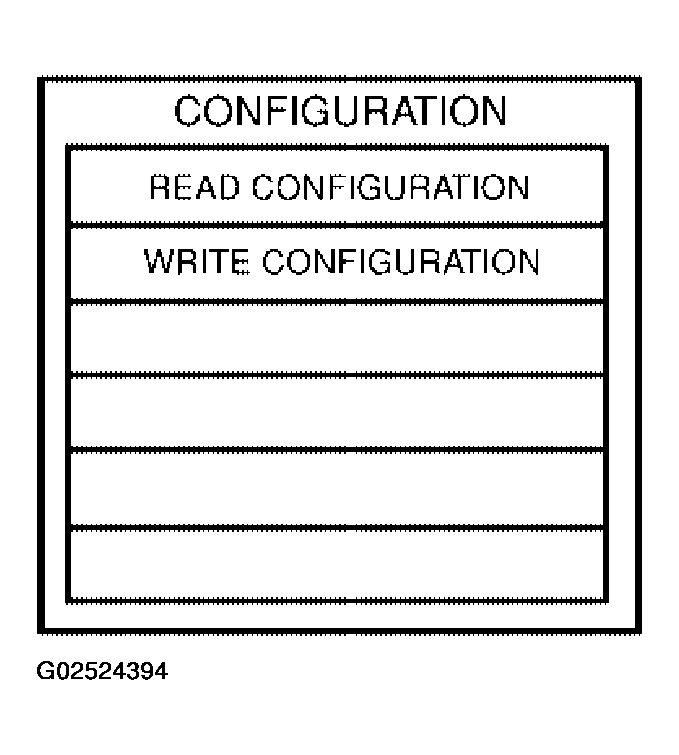

    Fig 7: Identifying Configuration Display
    G02524394Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "YES".

    For canceling touch "NO".

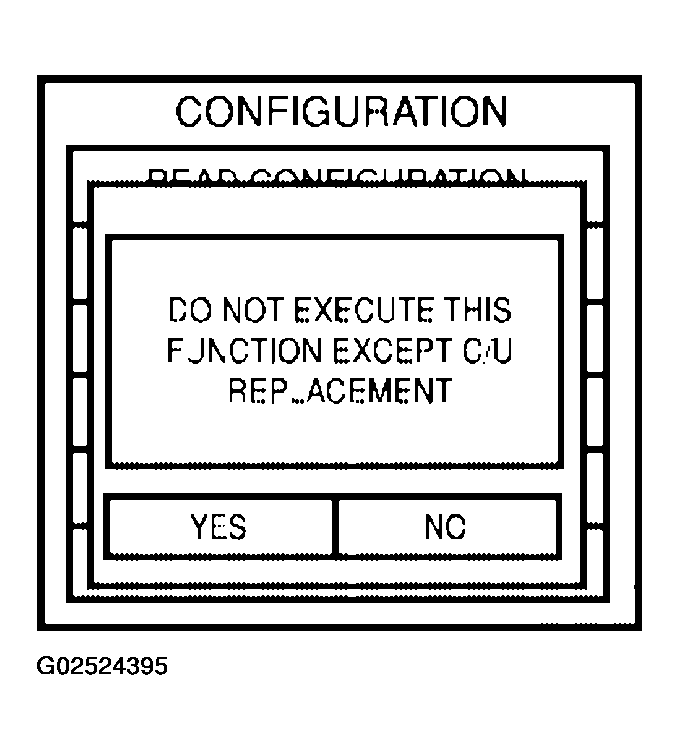

    Fig 8: Identifying Scan Tools Display
    G02524395Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Using the following flow chart, identify the correct model and configuration list. Confirm and/or change setting value for each item according to the configuration list.

    Depending on CONSULT-II software version being used, some or all of the write configuration items shown in the following configuration lists may be displayed. If an item does not appear on the CONSULT-II "WRITE CONFIGURATION" screen(s), then it is an auto setting item and it cannot be manually set or changed.

    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to "MODEL VARIATION ".

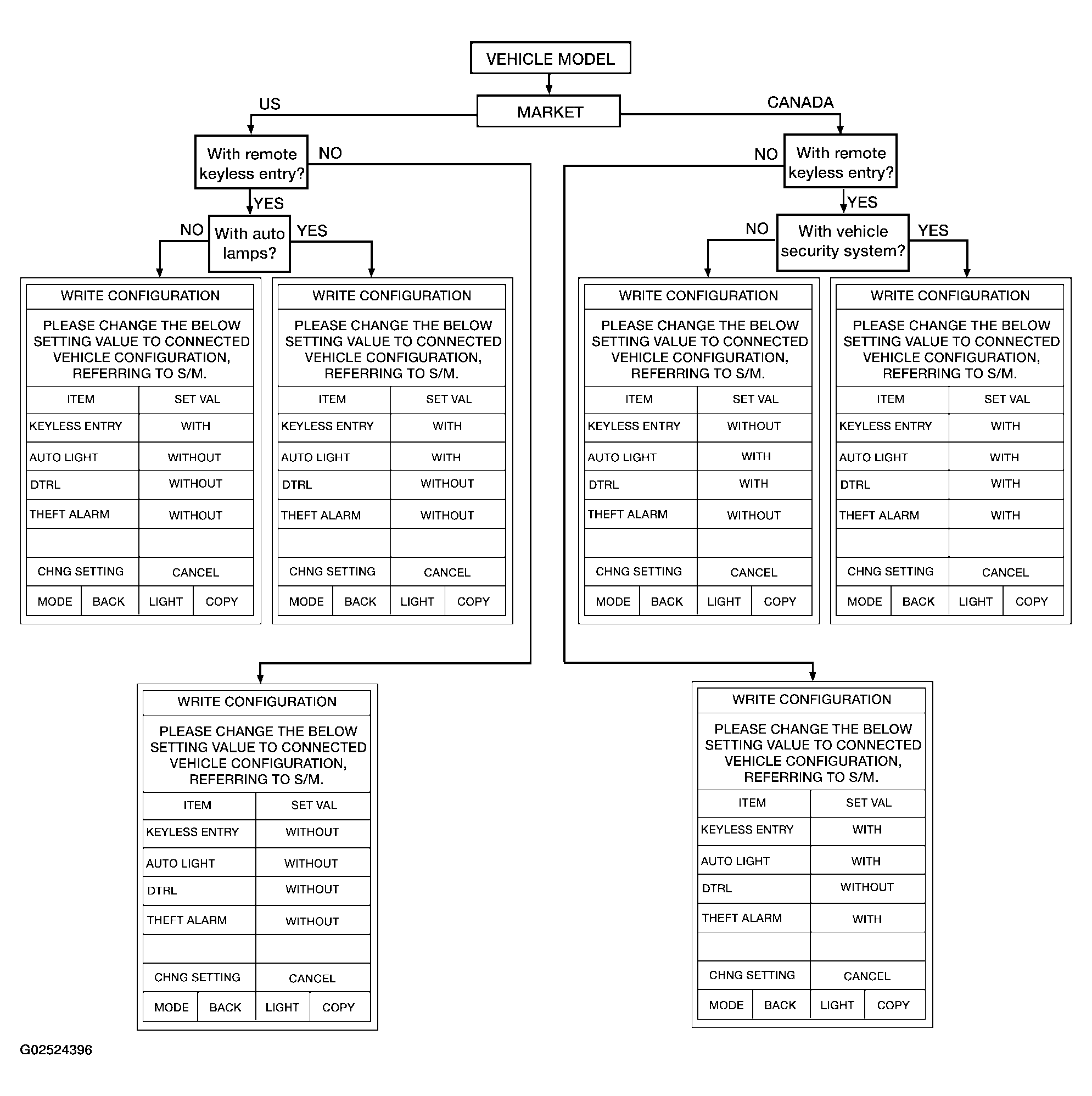

    Fig 9: Flow Chart (Identify Correct Model And Configuration List)
    G02524396Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Touch "CHNG SETTING" on "WRITE CONFIGURATION" screen.
    CAUTION: Make sure to touch "CHNG SETTING" even if the indicated configuration of brand-new BCM is same as the desirable configuration.

    If not, configuration which is set automatically by selecting vehicle model cannot be memorized.

  11. Touch "OK" on "WRITE CONFIGURATION" screen.

    If "CANCEL" is touched, it will return to previous screen.

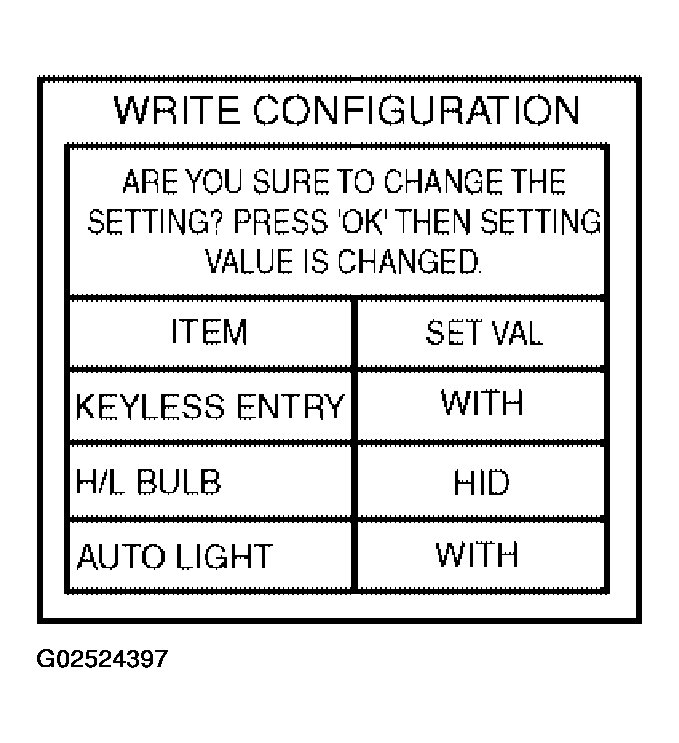

    Fig 10: Identifying Scan Tools Display (Write Configuration)
    G02524397Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Wait until the next screen during setting.

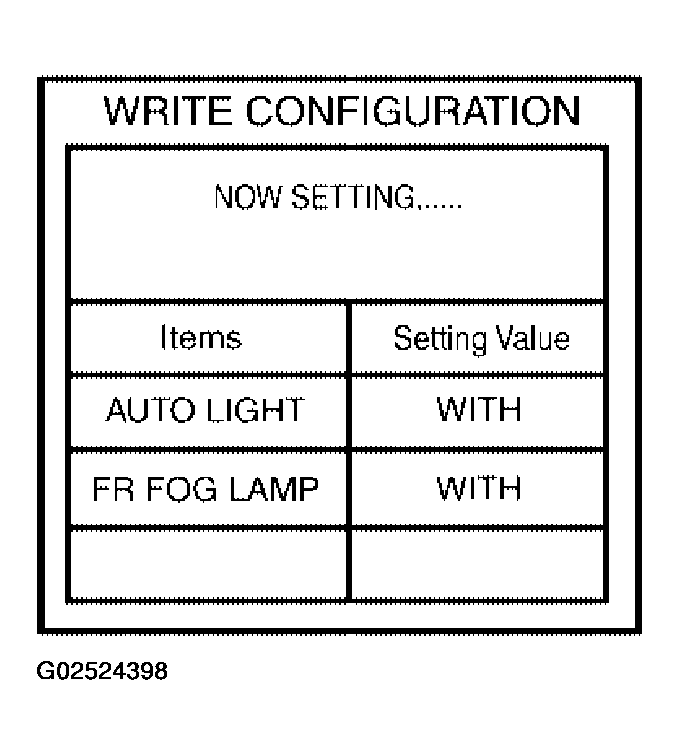

    Fig 11: Identifying Write Configuration Display (Now Setting)
    G02524398Courtesy of NISSAN MOTOR CO., U.S.A.
  13. WRITE CONFIGURATION results are printed out automatically. Confirm "WRITE CONFIGURATION" is correctly executed by comparing sheet automatically printed out with applicable configuration list shown in step 9.

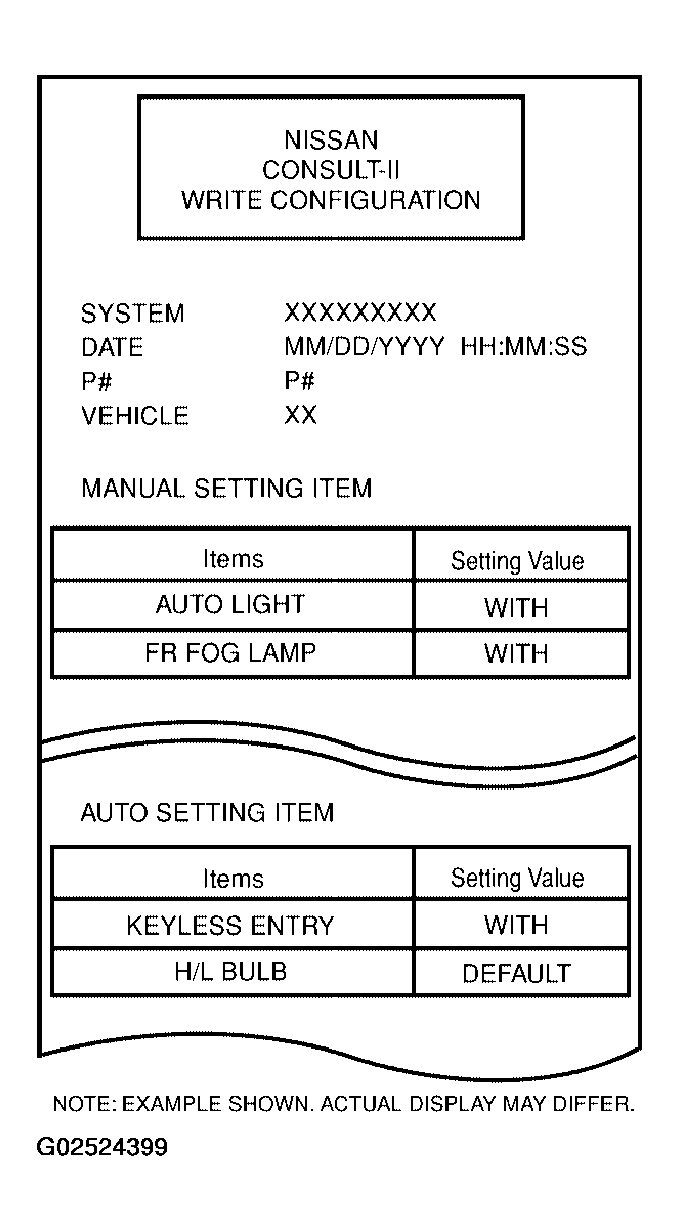

    Fig 12: Identifying Nissan Consult - II Write Configuration Display
    G02524399Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Touch "OK" on "WRITE CONFIGURATION" screen.

    WRITE CONFIGURATION is completed.

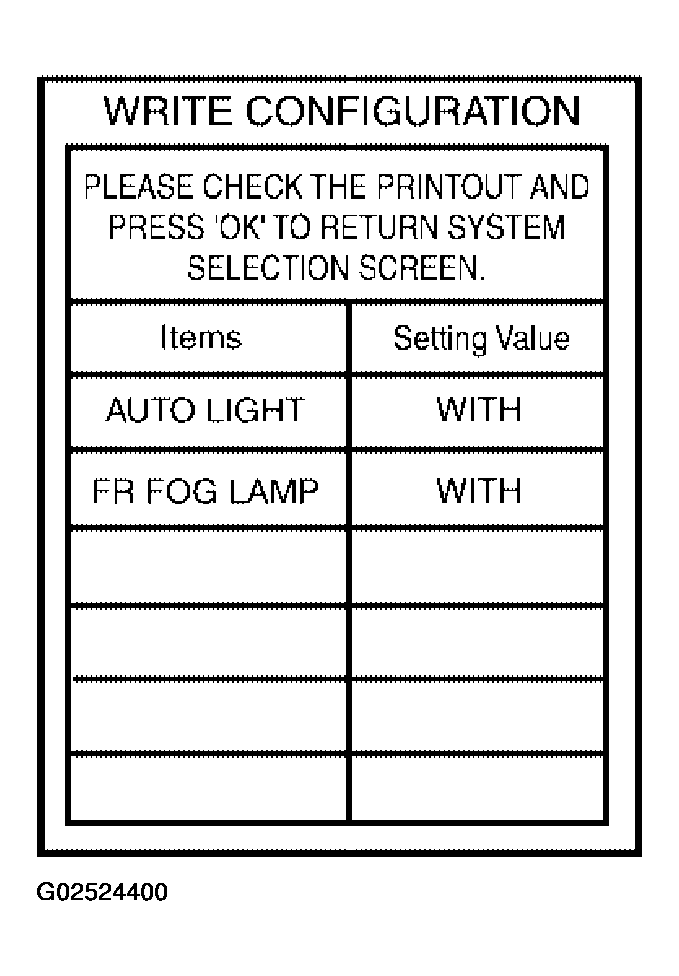

    Fig 13: Identifying Scan Tools Display (Write Configuration)
    G02524400Courtesy of NISSAN MOTOR CO., U.S.A.
