Description Of "Can Diag Support MNTR" Screen For Display Control Unit

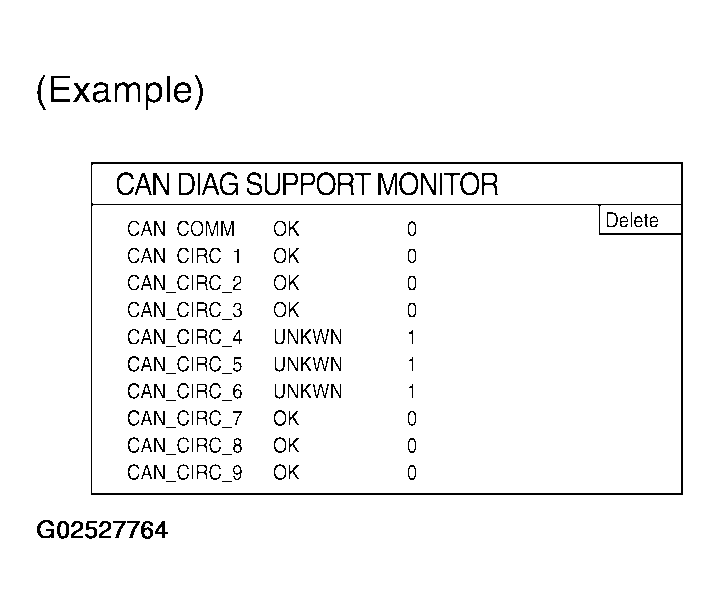

Fig 1: Identifying CAN DIAG SUPPORT MNTR Screen For Display Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.

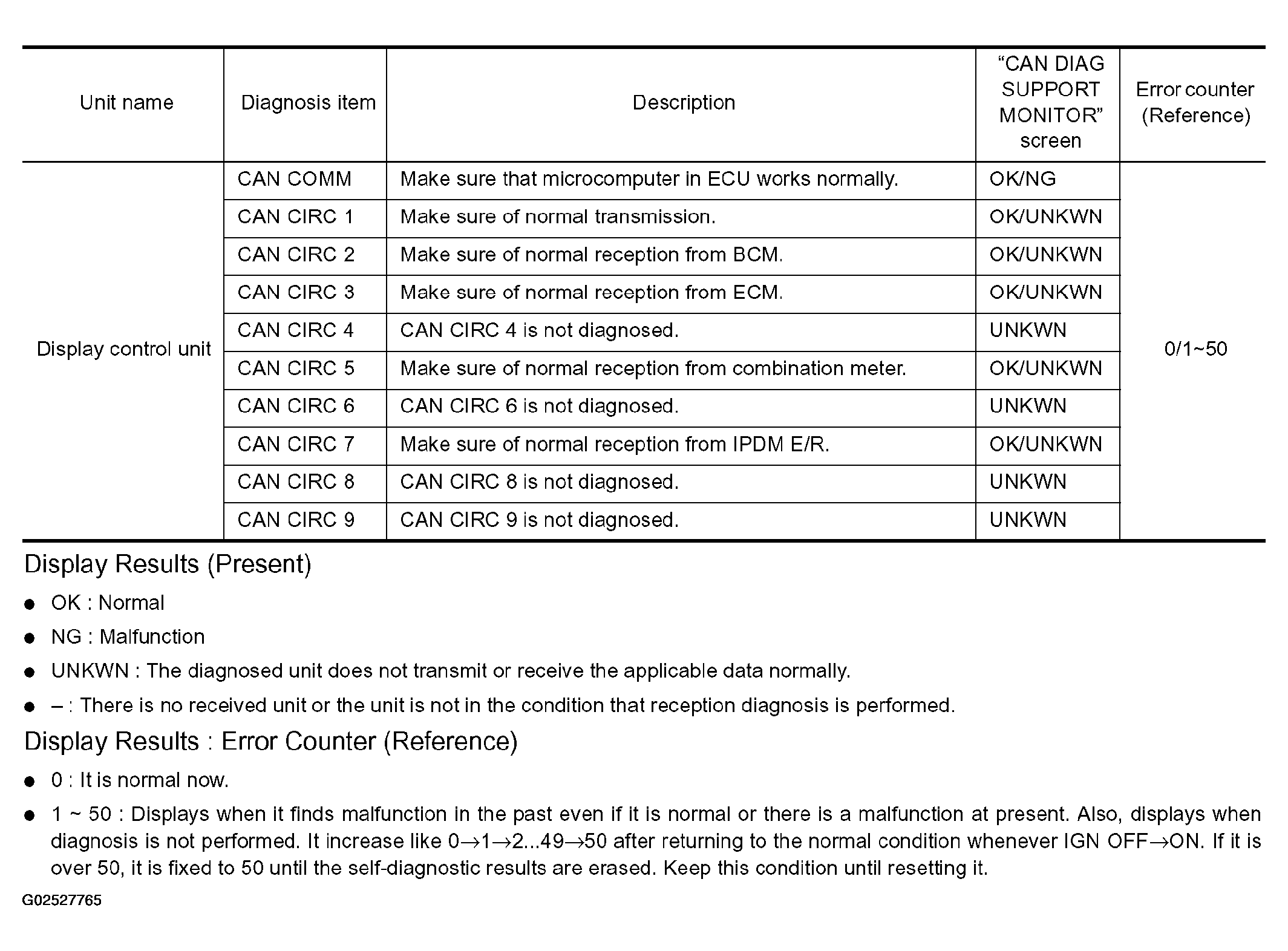

Fig 2: Description Of CAN DIAG SUPPORT MNTR Screen For Display Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
