CONSULT-II Function (BCM): Notes

CONSULT-II can display each diagnostic item using the following diagnostic test modes shown following.

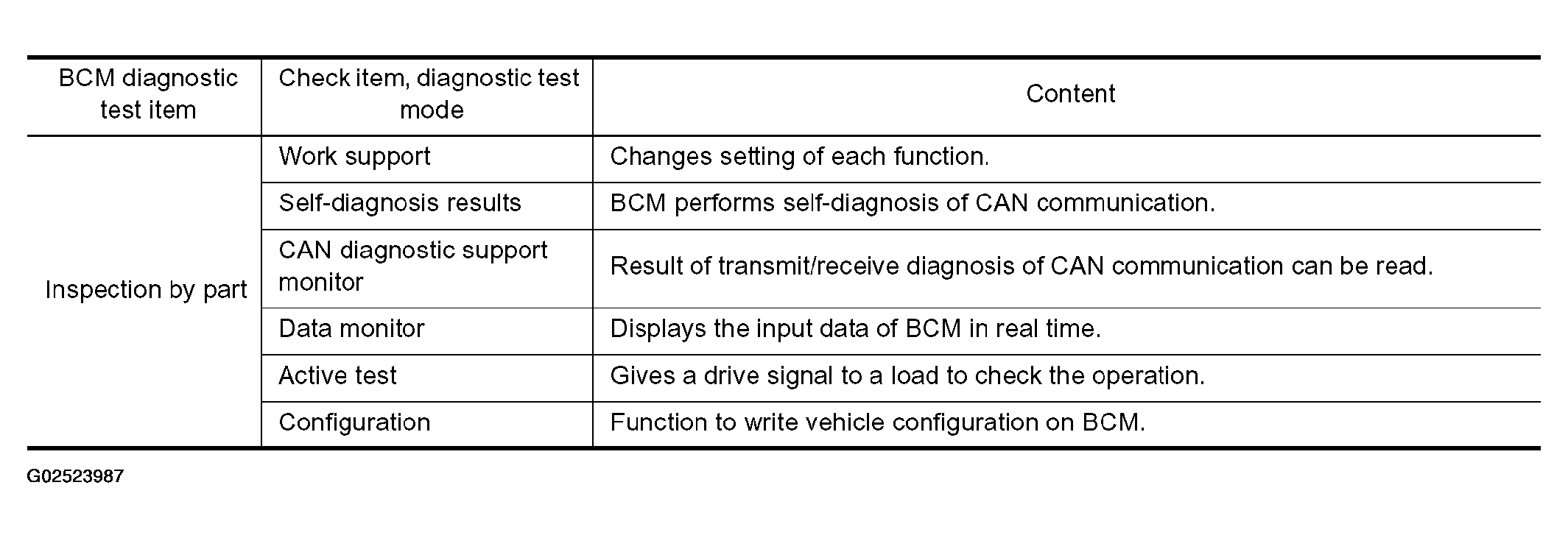

Fig 1: CONSULT-II Diagnosis Table

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

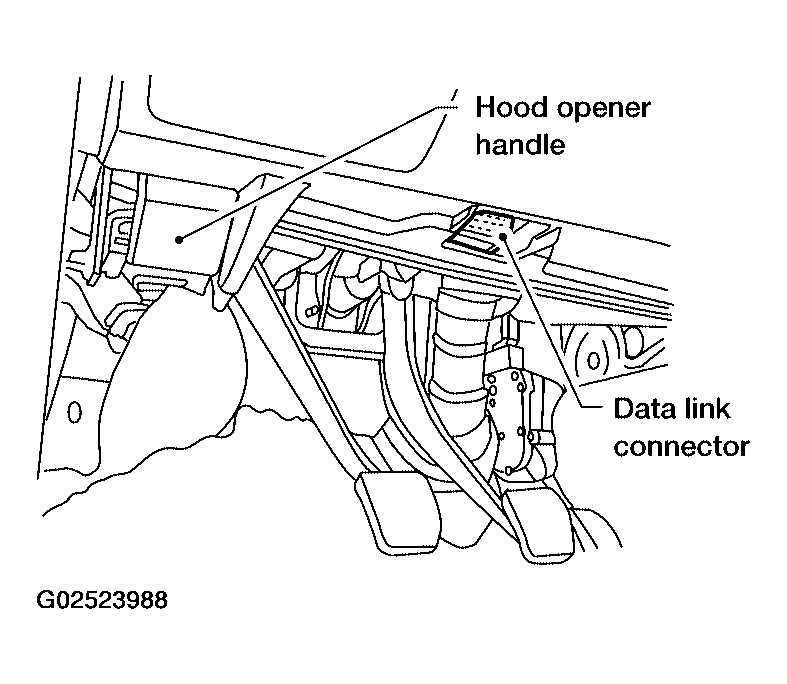

Fig 2: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

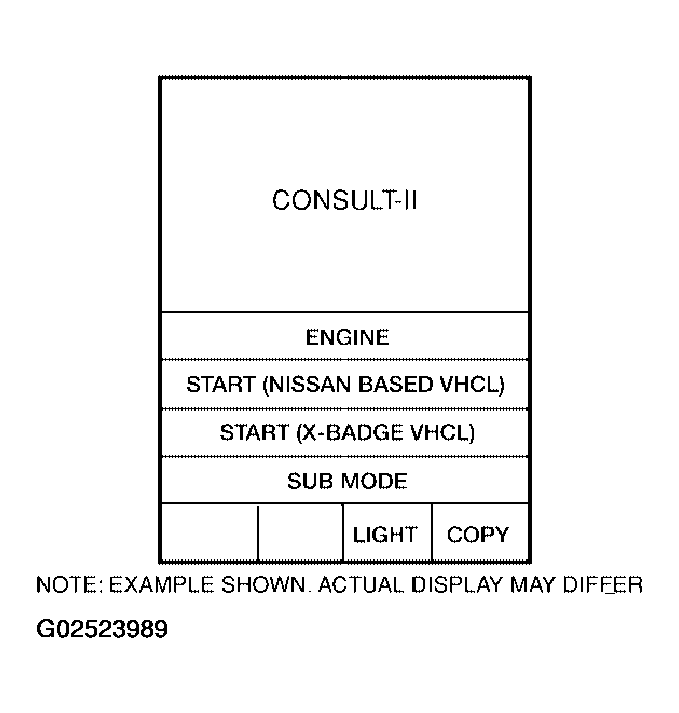

Fig 3: CONSULT-II Diagnosis Function Display (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".

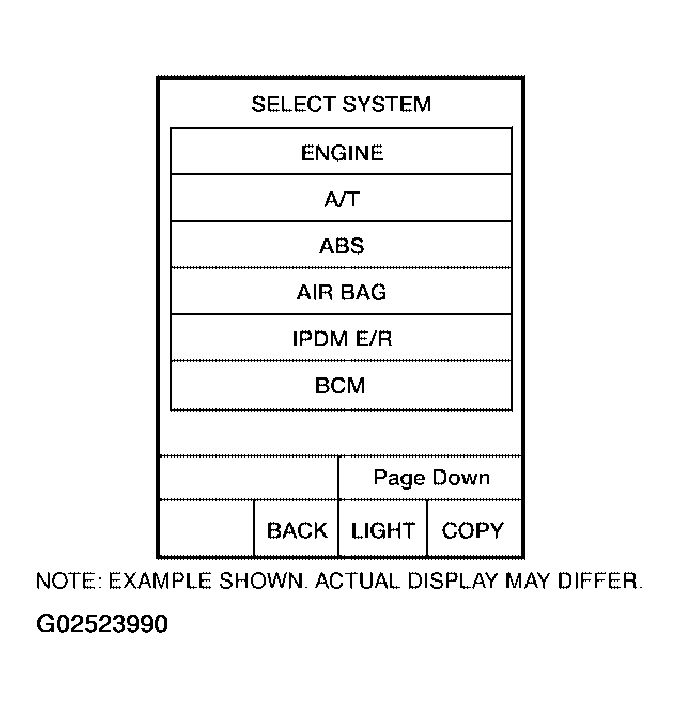

Fig 4: CONSULT-II Diagnosis Function Display (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "RETAINED PWR".

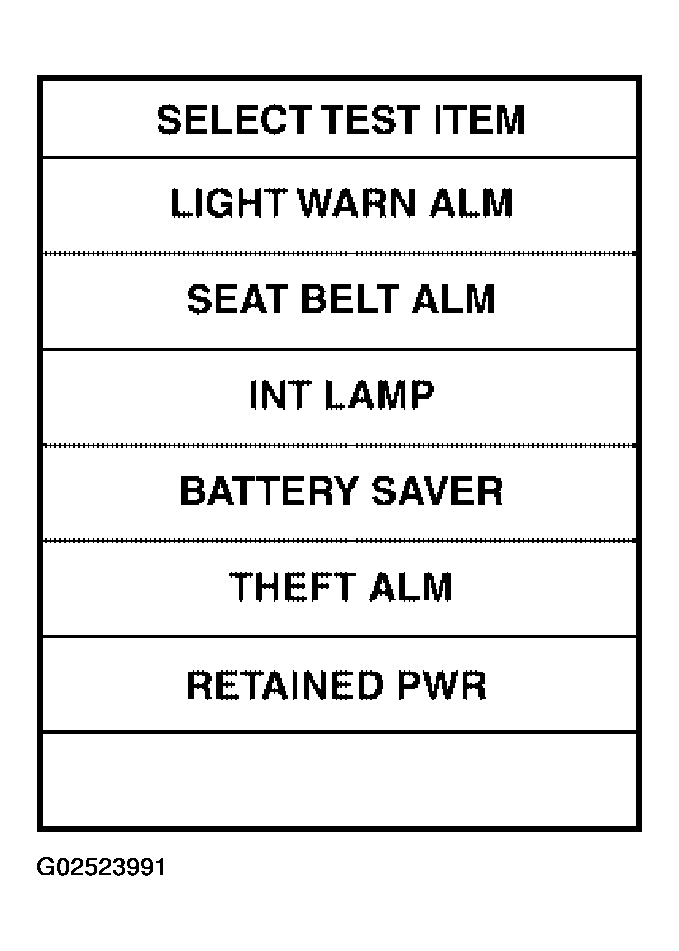

Fig 5: CONSULT-II Diagnosis Function Display (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode. "ACTIVE TEST" is available for the power window.

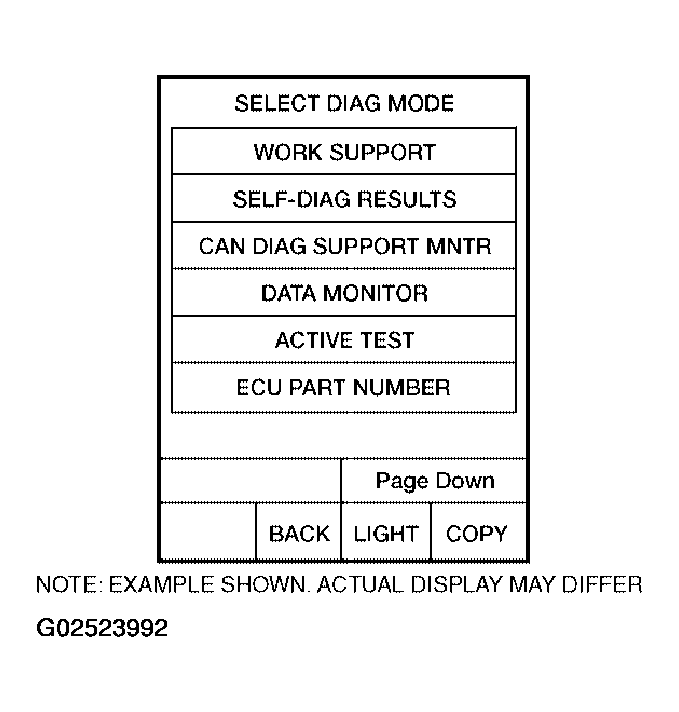

Fig 6: CONSULT-II Diagnosis Function Display (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
