Work Flow

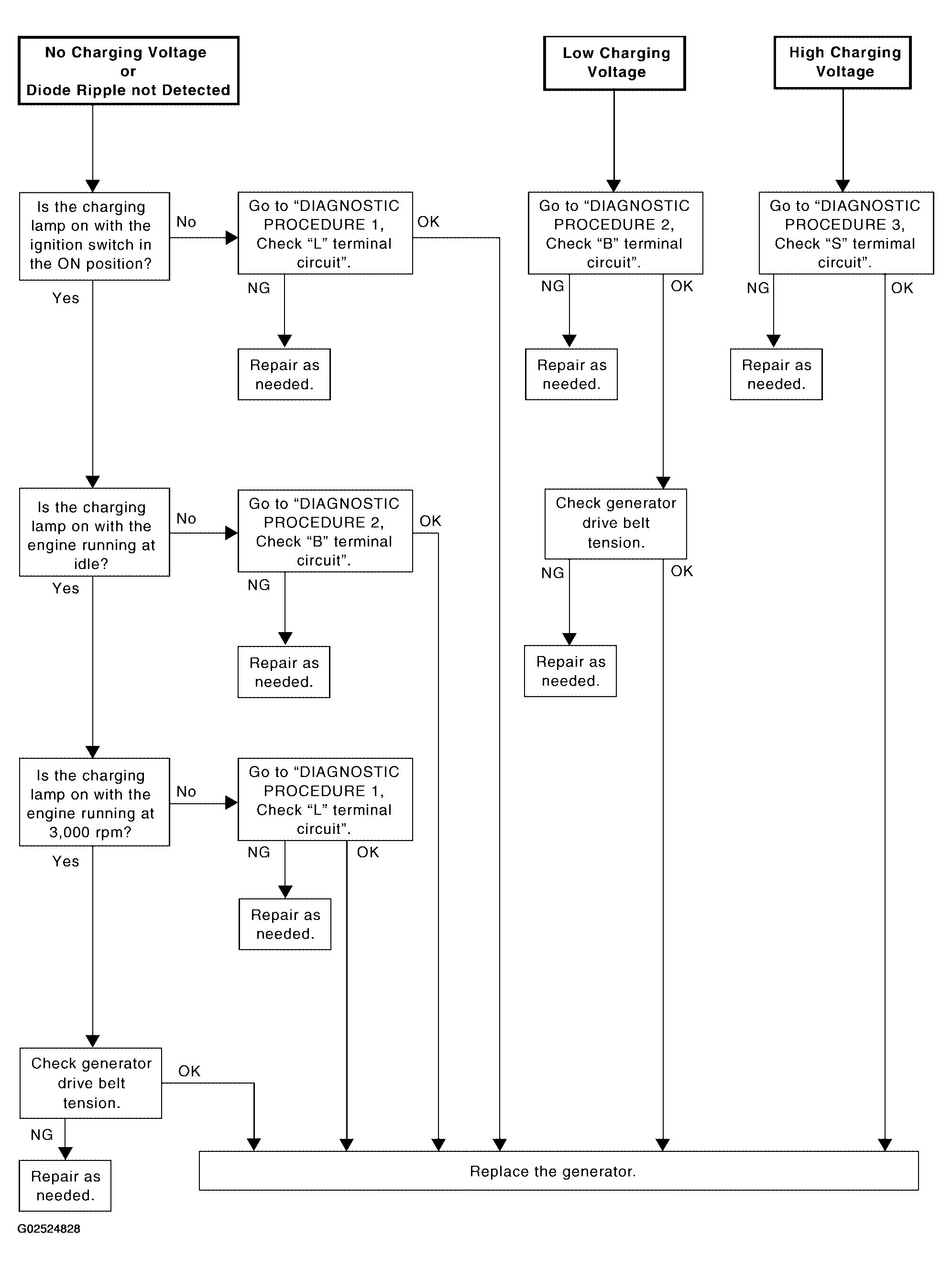

Fig 1: Charging System Work Flow
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
