Preliminary Check

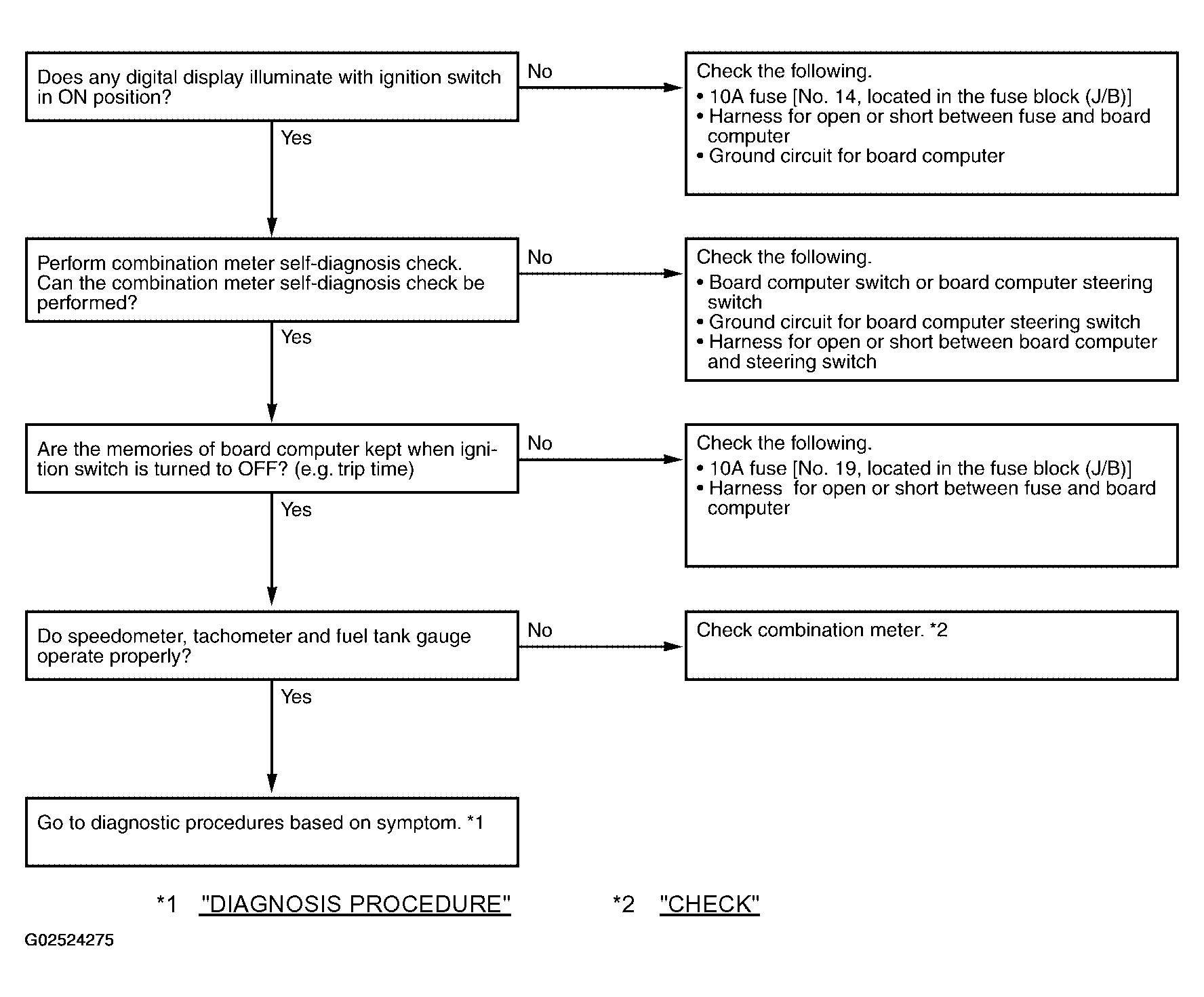

Fig 1: Trouble Diagnoses Flow Chart (Preliminary Check)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
