Center Console

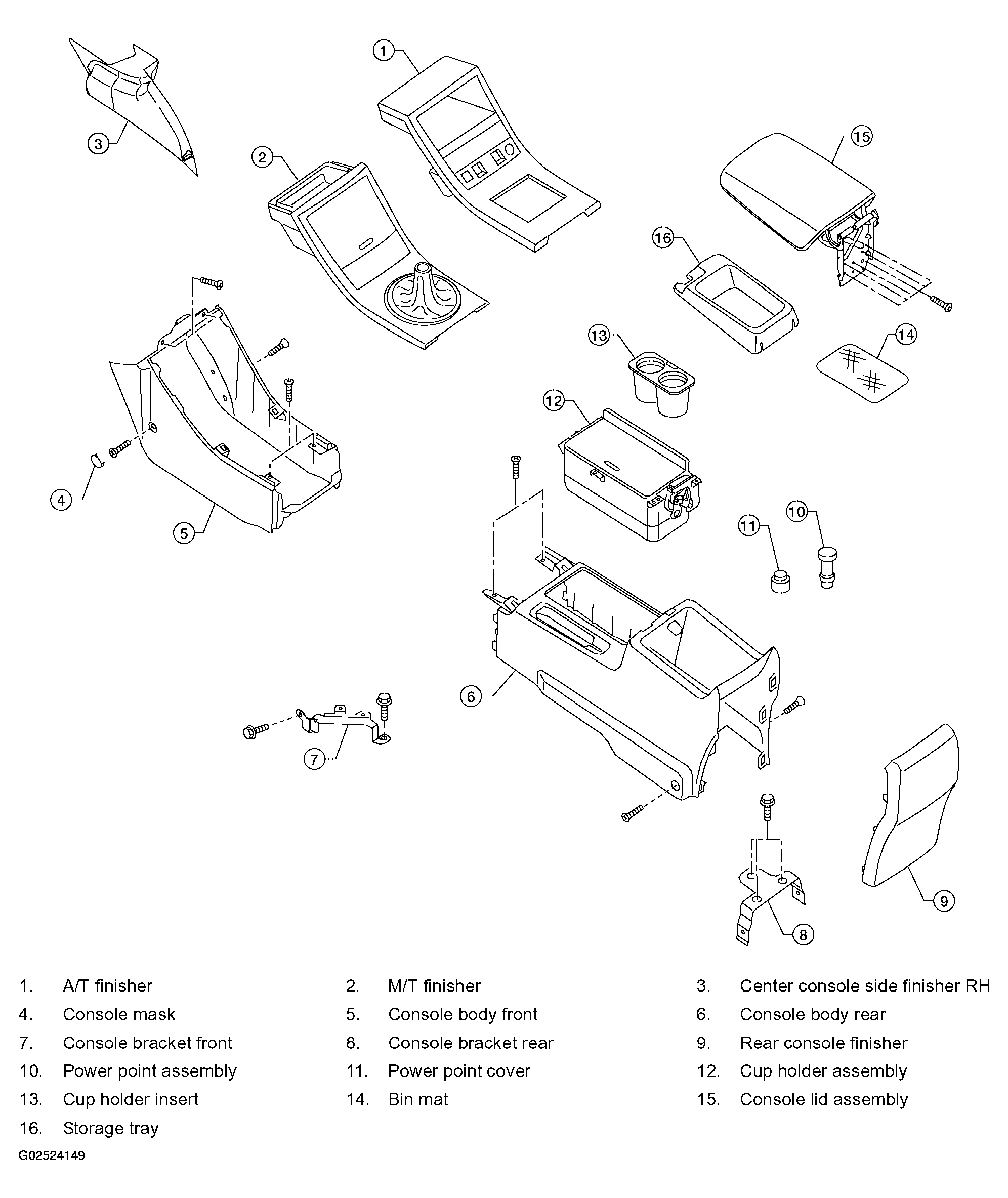

Fig 1: Exploded View Of Center Console

Courtesy of NISSAN MOTOR CO., U.S.A.

1. Remove center console assembly. Refer to "WORK STEPS ".
2. Remove rear console finisher.
3. Remove cup holder insert.
4. Remove cup holder assembly.
5. Remove storage tray and bin mat.
6. Remove console lid assembly.
7. Remove console bracket rear.
8. Remove console bracket front.
9. Remove power point assembly.

Assembly is in the reverse order of disassembly.
