Control Cable

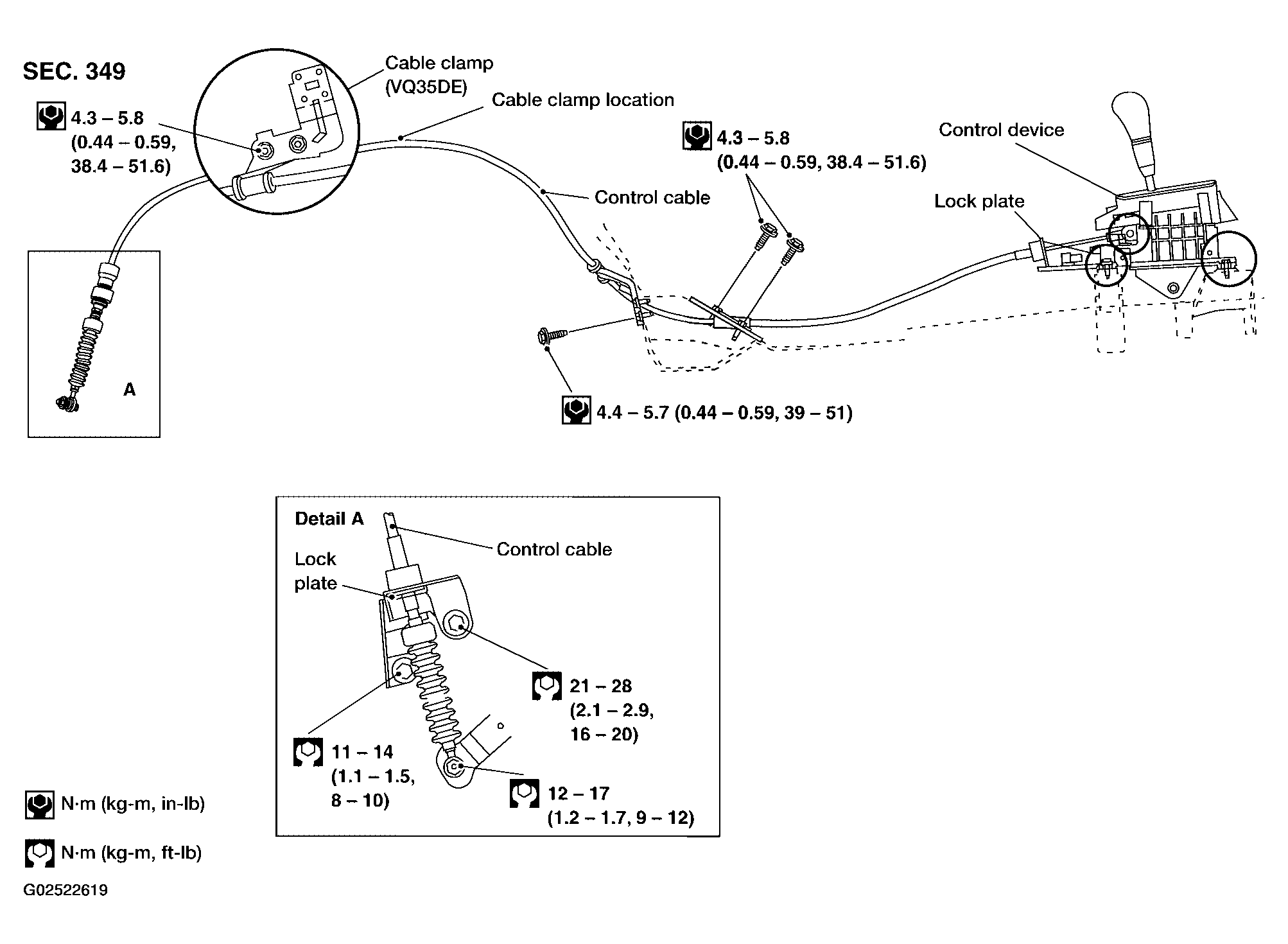

Fig 1: Control Cable -- With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
