Control Device

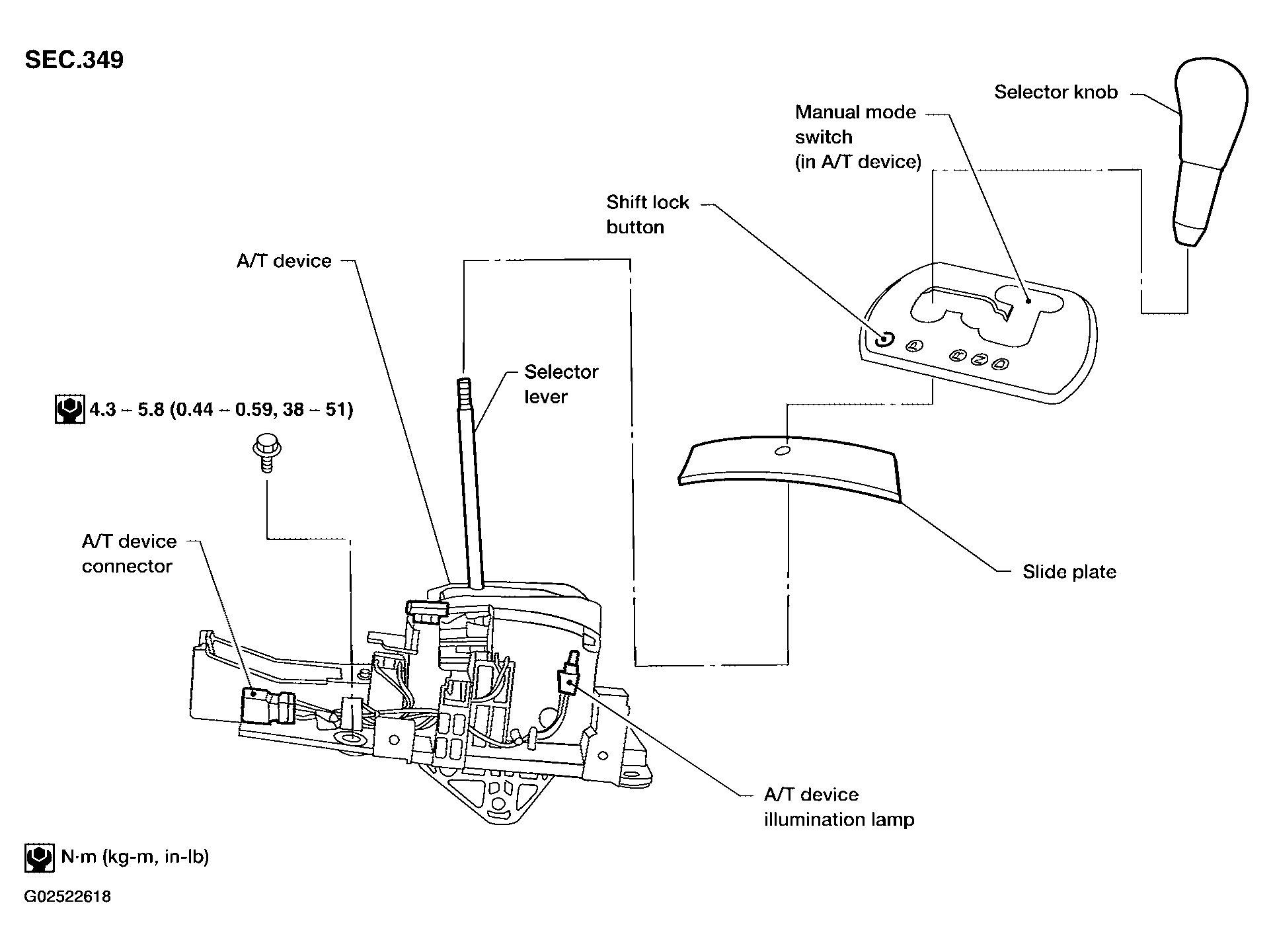

Fig 1: Shift Control System -- With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
