KEYFOB Id Set Up With Consult-II

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communications.

NOTE: If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. When the ID code of a lost keyfob is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfobs must be re-registered.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

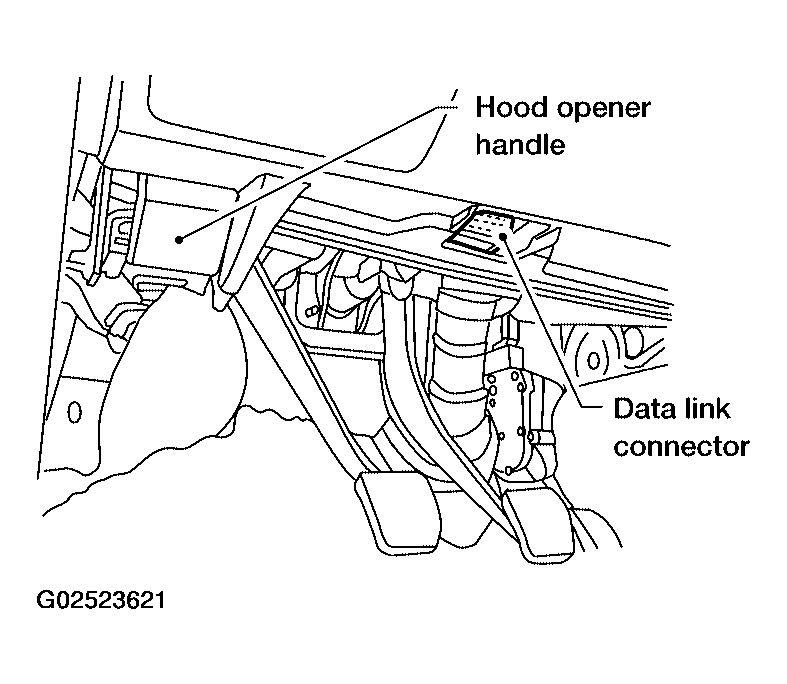

Fig 1: Connecting CONSULT-II And CONSULT-II Converter To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.

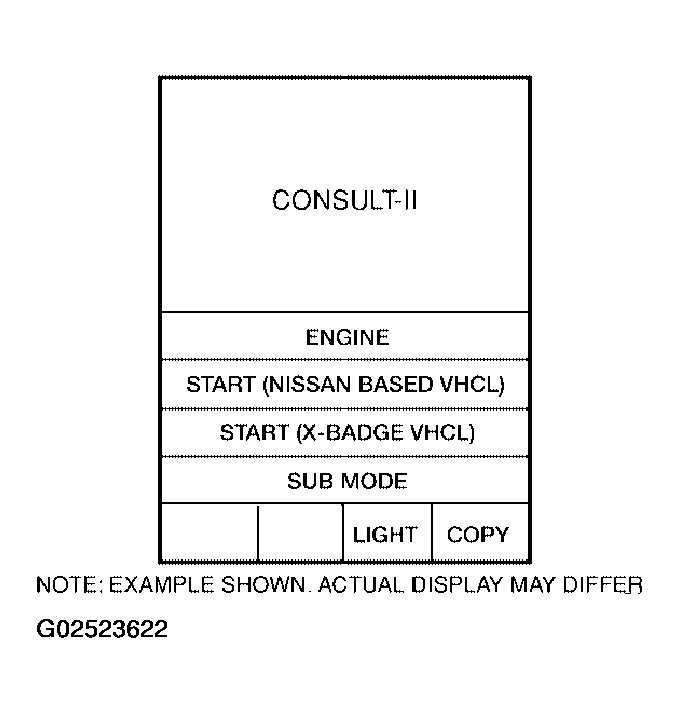

Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Display - "START (NISSAN BASED VHCL)"
Courtesy of NISSAN MOTOR CO., U.S.A.

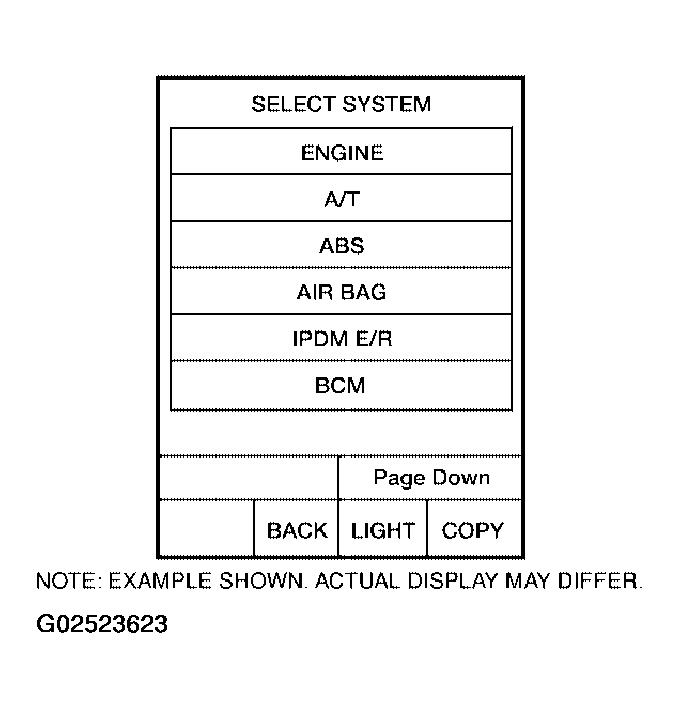

Touch "BCM".

Fig 3: CONSULT-II Display - "BCM"
Courtesy of NISSAN MOTOR CO., U.S.A.

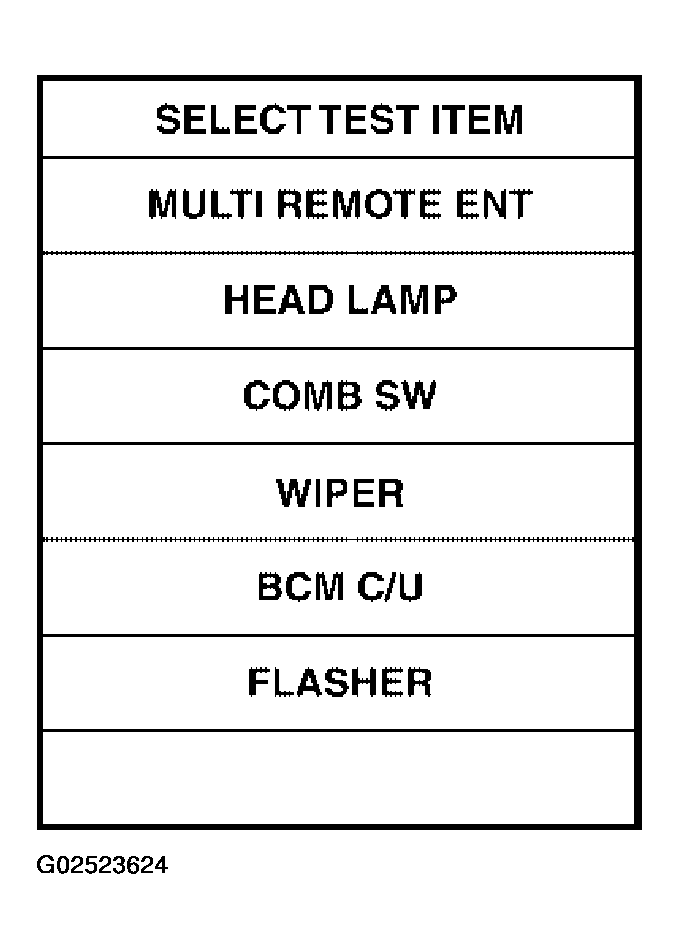

Touch "MULTI REMOTE ENT".

Fig 4: CONSULT-II Display - "MULTI REMOTE ENT"
Courtesy of NISSAN MOTOR CO., U.S.A.

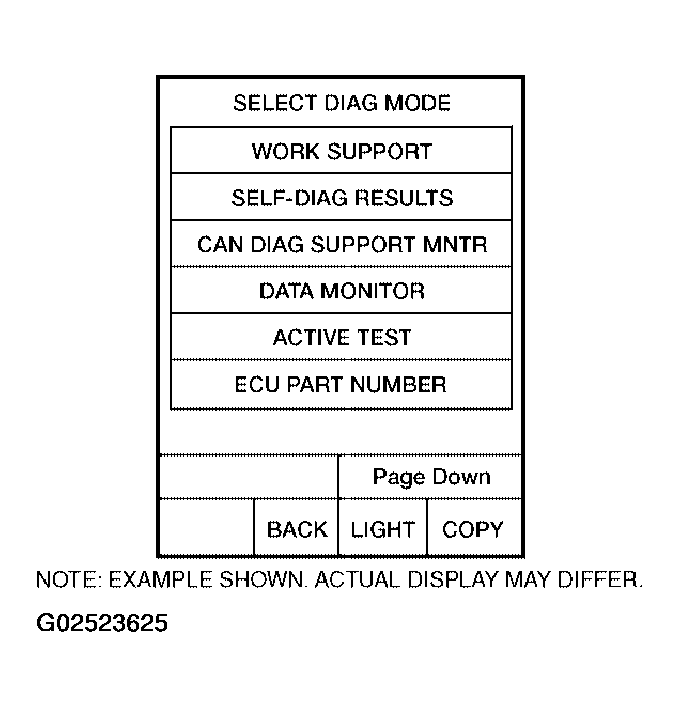

Touch "WORK SUPPORT".

Fig 5: CONSULT-II Display - "WORK SUPPORT"
Courtesy of NISSAN MOTOR CO., U.S.A.
The items shown on the figure can be set up.
- "REMO CONT ID CONFIR"
  Use this mode to confirm if a keyfob ID code is registered or not.
- "REMO CONT ID REGIST"
  Use this mode to register a keyfob ID code.

  NOTE: Register the ID code when keyfob or BCM is replaced, or when additional keyfob is required.
- "REMO CONT ID ERASUR"
  Use this mode to erase a keyfob ID code.

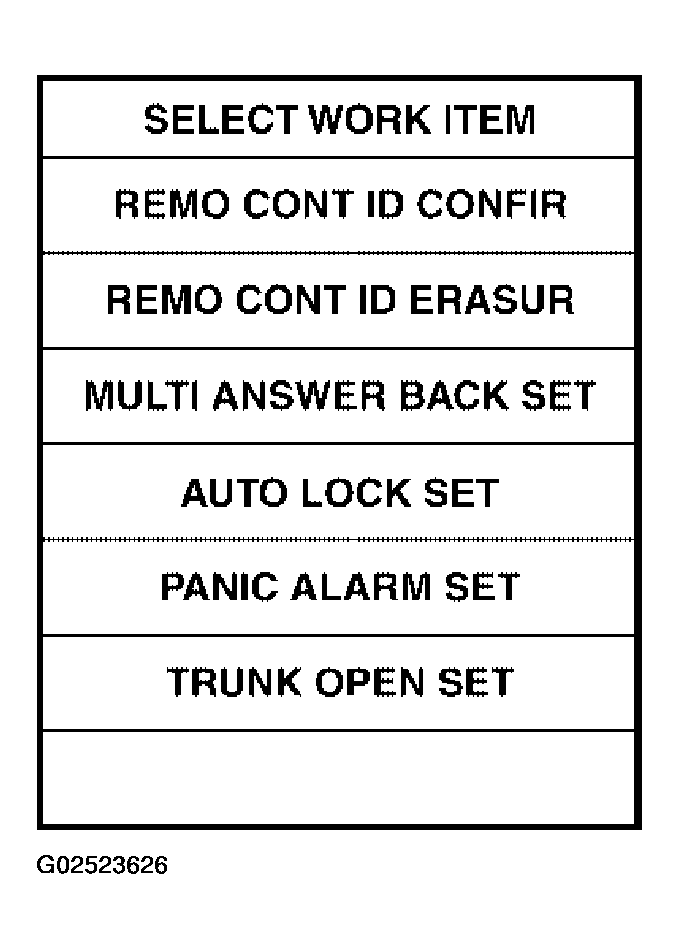

  Fig 6: CONSULT-II Display - REMO CONT ID CONFIR
  Courtesy of NISSAN MOTOR CO., U.S.A.
