With Consult-II

  1. Start engine.
  2. Read "VHCL SPEED SE" in "DATA MONITOR" mode with CONSULT-II. The vehicle speed on CONSULT-II should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.

    If NG, go to "DIAGNOSTIC PROCEDURE ".

    If OK, go to following step.

  3. Select "DATA MONITOR" mode with CONSULT-II.
  4. Warm engine up to normal operating temperature.
  5. Maintain the following conditions for at least 60 consecutive seconds.

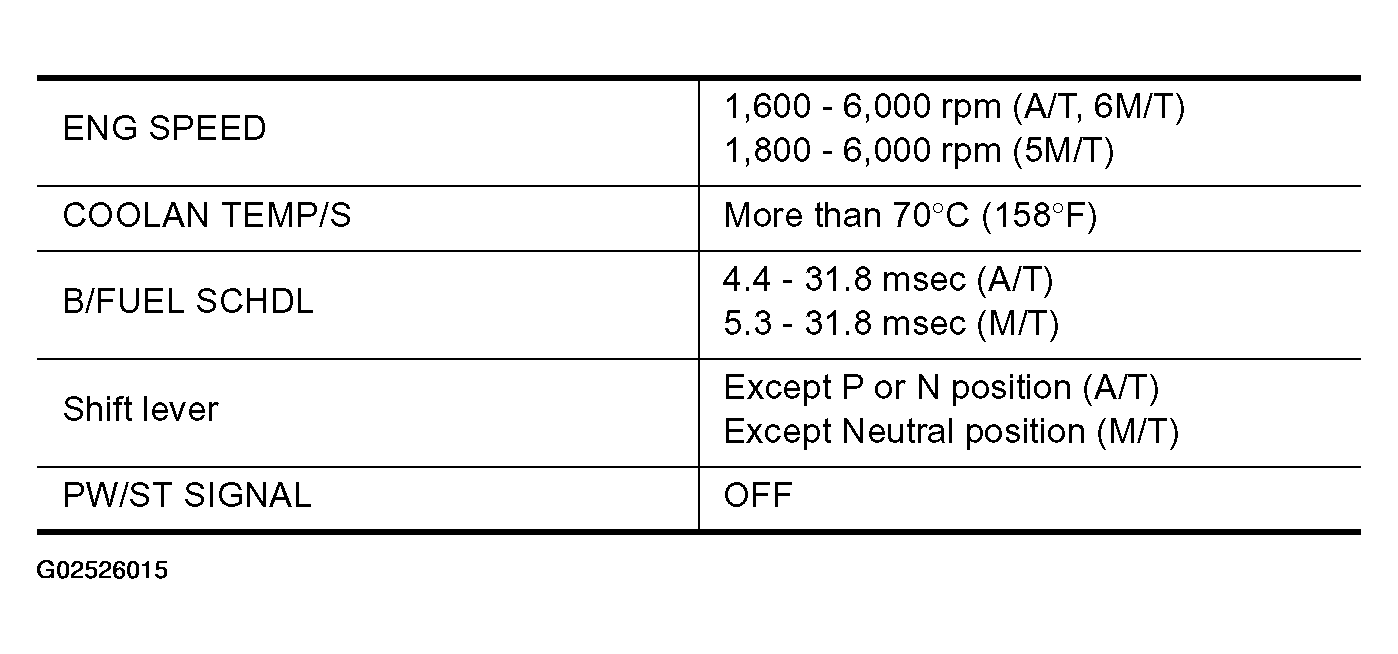

    Fig 1: Engine Reference Chart
    G02526015Courtesy of NISSAN MOTOR CO., U.S.A.

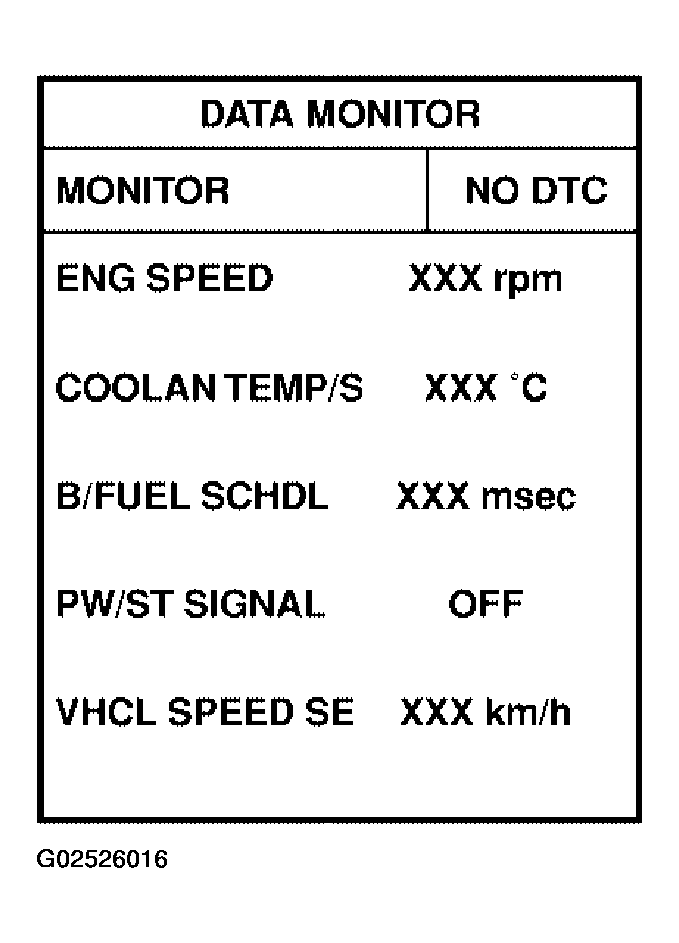

    Fig 2: Identifying Consult-II Data Monitor
    G02526016Courtesy of NISSAN MOTOR CO., U.S.A.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
