Coil Spring And Shock Absorber: Assembly

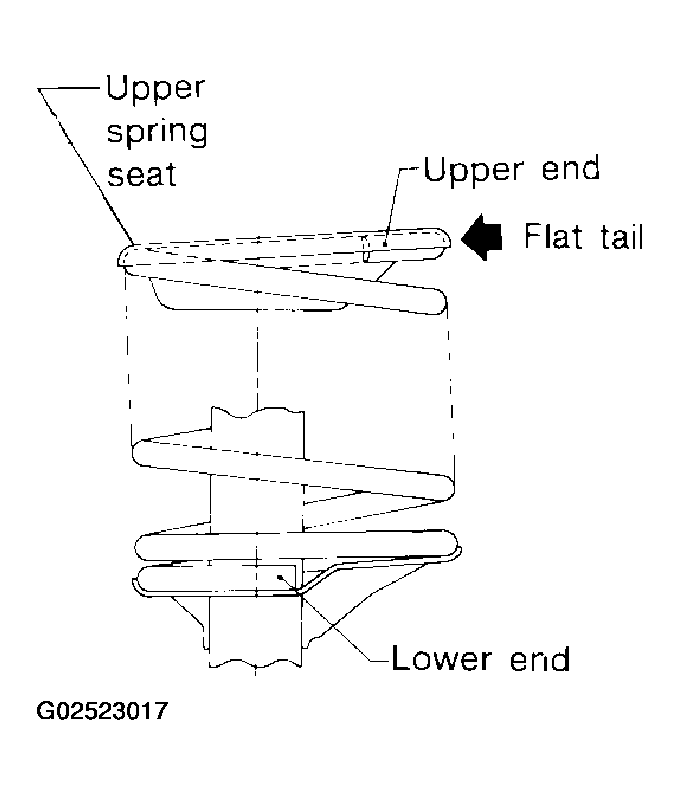

  1. When installing coil spring on strut, it must be positioned as shown.
    Fig 1: Identifying Installing Position Of Coil Spring On Strut
    G02523017Courtesy of NISSAN MOTOR CO., U.S.A.

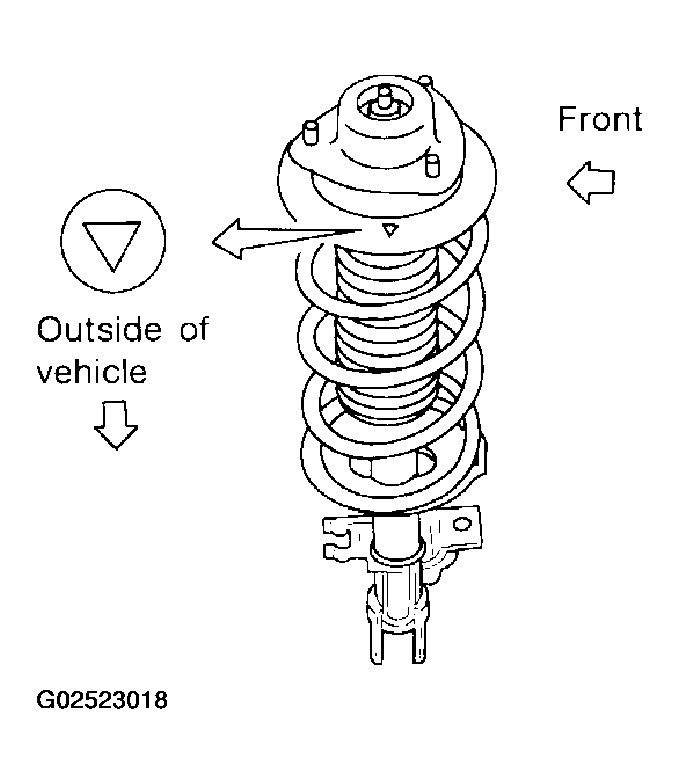

  2. Install upper spring seat with alignment mark facing the outer side of vehicle, in line with strut-to-knuckle attachment points.
    NOTE: LH side shown, RH side similar.
    Fig 2: Identifying Upper Spring Seat With Alignment Mark Facing Outer Side Of Vehicle
    G02523018Courtesy of NISSAN MOTOR CO., U.S.A.
