Front Suspension Assembly: Components

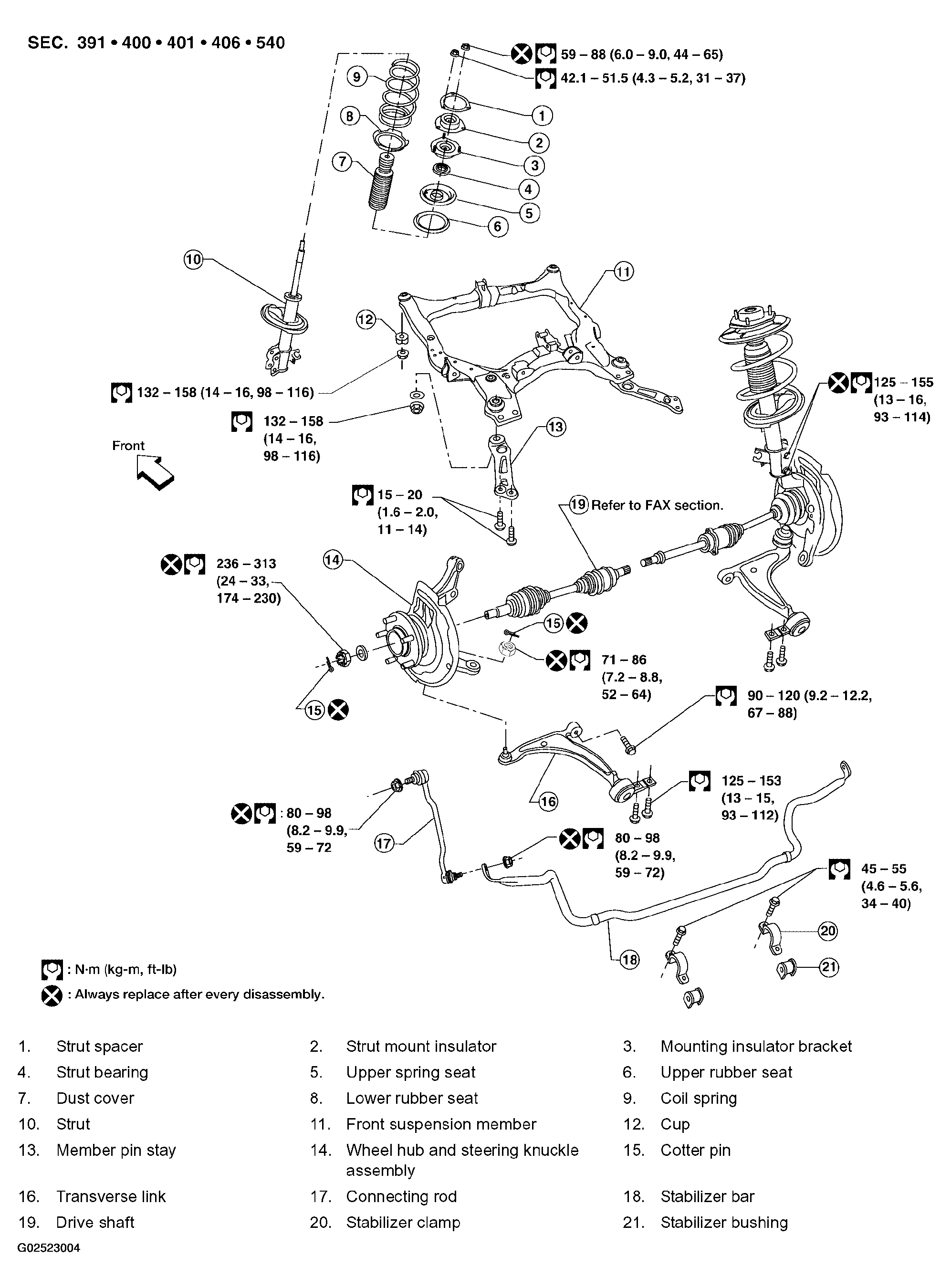

Fig 1: Identifying Front Suspension Assembly Components

G02523004

Courtesy of NISSAN MOTOR CO., U.S.A.
