Clutch Master Cylinder: Components: Notes

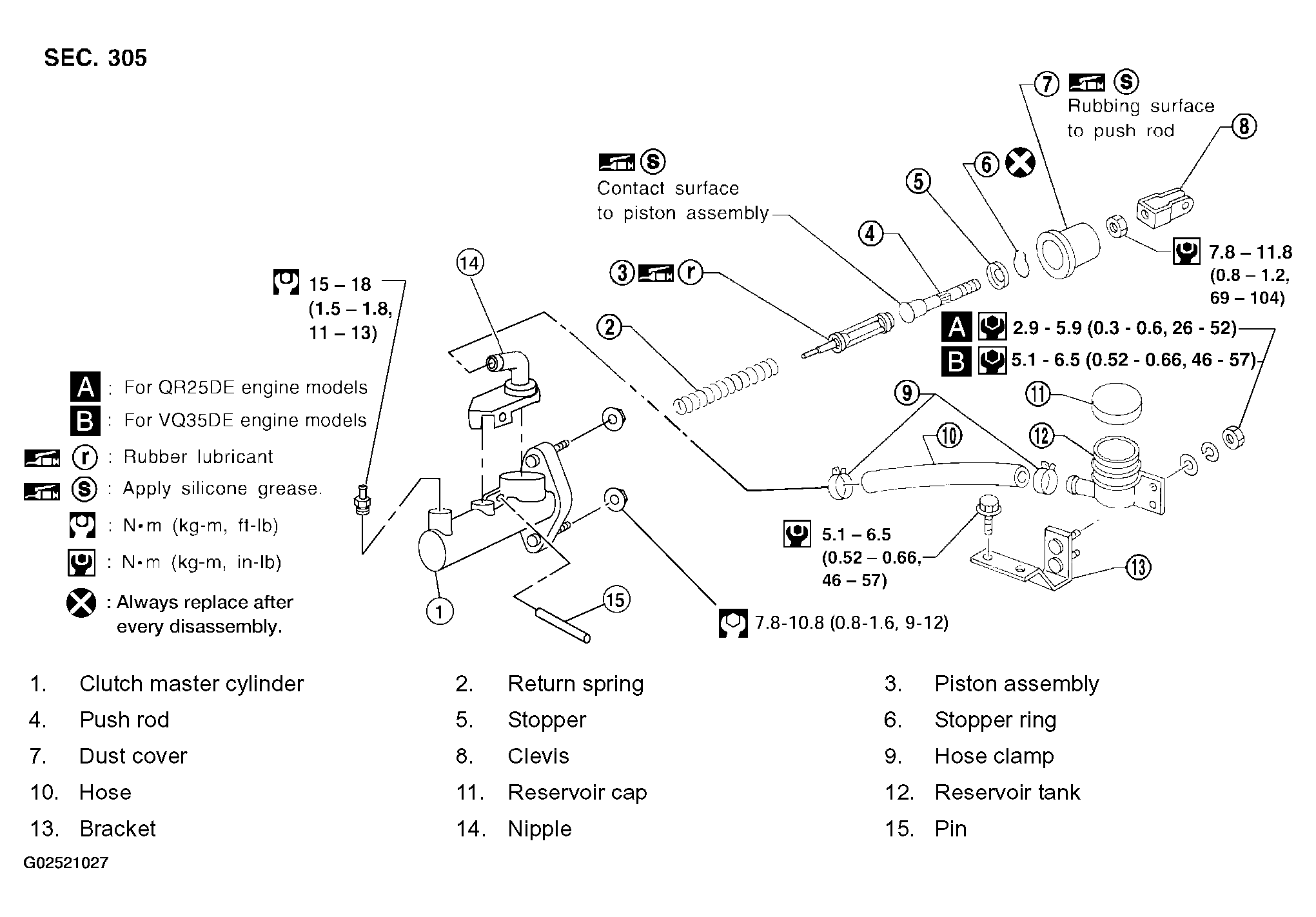

Fig 1: Identifying Clutch Master Cylinder Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
