Engine Coolant Temperature Sensor

  1. Check resistance between engine coolant temperature sensor terminals 1 and 2 as shown in the figure.

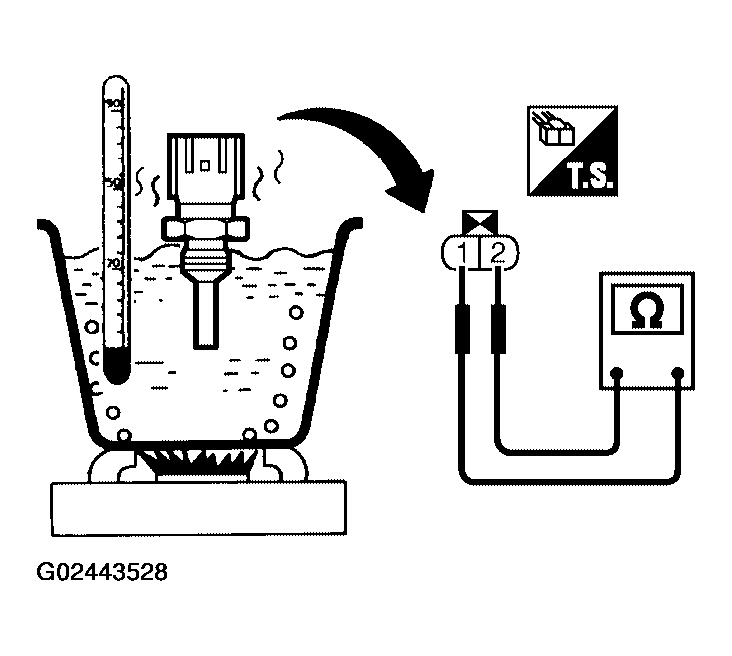

    Fig 1: Checking Resistance Between Engine Coolant Temperature Sensor Terminals
    G02443528Courtesy of NISSAN MOTOR CO., U.S.A.

    < Reference data>

    ENGINE COOLANT TEMPERATURE SPECIFICATION

    Engine coolant temperature °C (°F) Resistance kΩ
    20 (68) 2.1 - 2.9
    50 (122) 0.68 - 1.00
    90 (194) 0.236 - 0.260
  2. If NG, replace engine coolant temperature sensor.
    Fig 2: Resistance VS Temperature Acceptable Range Graph
    G02443529Courtesy of NISSAN MOTOR CO., U.S.A.
