With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Start engine and wait maximum of 2 consecutive minutes.
  4. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE

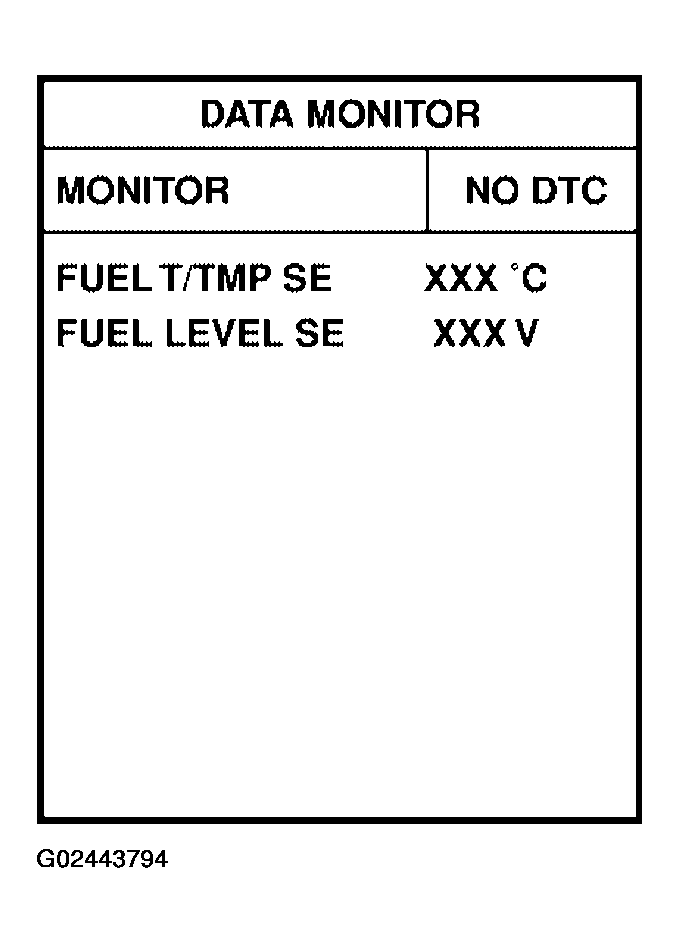

    Fig 1: CONSULT-II Display - "DATA MONITOR" Mode
    G02443794Courtesy of NISSAN MOTOR CO., U.S.A.
