Engine Control Component Parts/Control Systems Application

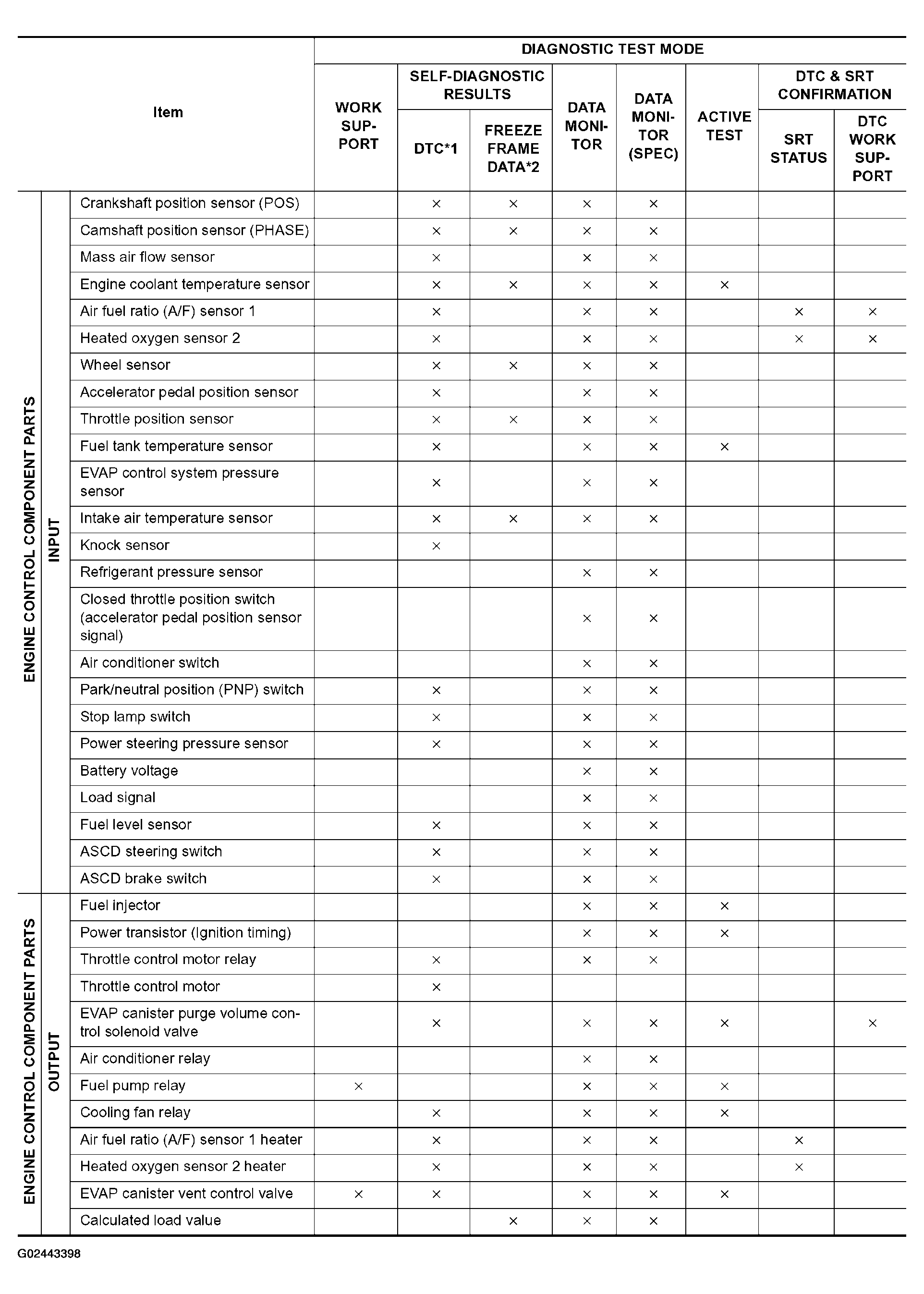

Fig 1: Engine Control Component Control Table
G02443398Courtesy of NISSAN MOTOR CO., U.S.A.

X: Applicable

*1: This item includes 1st trip DTCs.

*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame data mode only if a 1st trip DTC or DTC is detected. For details, refer to Freeze Frame Data and 1st Trip Freeze Frame Data .
